Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBN12SS2W30-CABRACKET PC MOUNT MINIATURE PUSHB |
183 |
|
Datasheet |
MB2000 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
YB15MKW01-CBSWITCH PUSHBUTTON SPDT 3A 125V |
402 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
30-251 BLKSWITCH PUSH SPST-NO 1A 115V |
421 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC) | 115 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Sealed - Fully | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
BXR056SWITCH PUSH DPDT 0.25A 115V |
464 |
|
Datasheet |
BXR | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Square, Button | No Marking | White | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Square - 15.75mm x 15.75mm | - |
|
|
MAV19A0F20E324JRANTI-VANDAL SWITCH, 19MM, IP 67, |
200 |
|
Datasheet |
MAV | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round, Button, Flush | - | Silver | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
MPA 306 DSWITCH PUSHBUTTON 3-POLE ON - ON |
491 |
|
Datasheet |
MPA | Box | Active | Panel Mount, Rear | Standard | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.20mm Dia | -45°C ~ 140°C |
|
90036-02SWITCH P-P MOM NO BLD |
149 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST-NO | Off-Mom | 20A (DC) | - | 24 V | Round, Plunger, Metal | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|

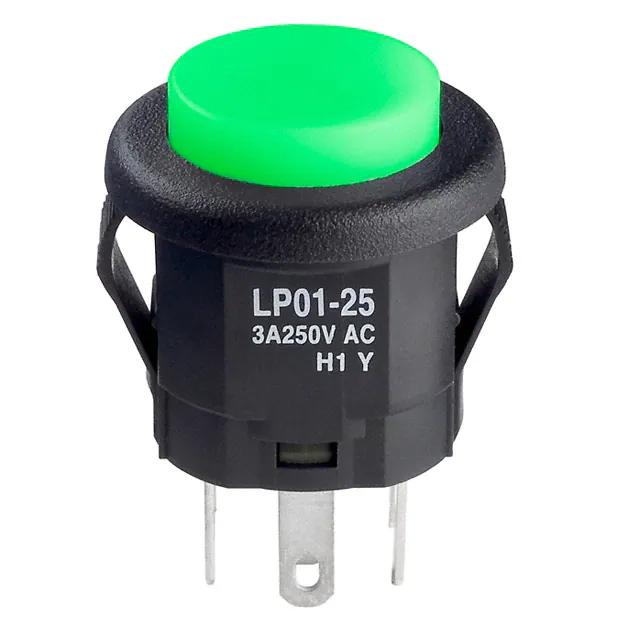

LP0125CMKW015FBSWITCH PUSHBUTTON DPDT 3A 125V |
115 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | LED, Green | 2.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 17.30mm Dia | -10°C ~ 50°C |
|

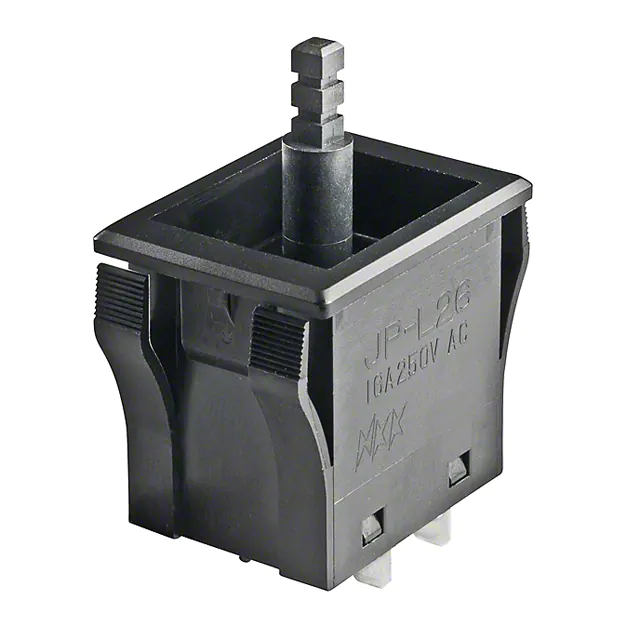

JPL26PSWITCH PUSH DPST 16A 125V |
126 |
|
Datasheet |
JP | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 16A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 28.00mm x 21.20mm | -10°C ~ 70°C |
|
UB16NBKG015F-ABSWITCH PUSH SPDT 0.4VA 28V |
25 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black (White Window) | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

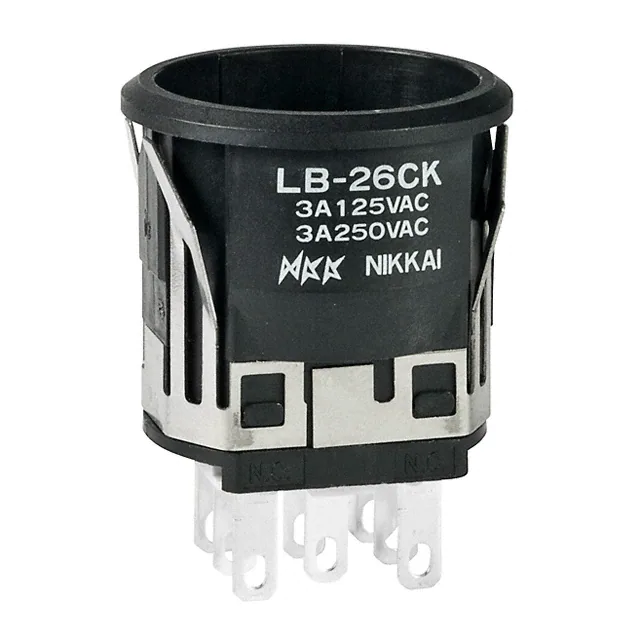

LB26CKW01SWITCH PUSHBUTTON DPDT 3A 125V |
21 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
MAV22A0F10E712JQANTI-VANDAL SWITCH, 22MM, IP 67, |
200 |
|
Datasheet |
MAV | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
WS48M-A13RGBPBS 19MM SPST 0.1A 48V MOM METAL |
948 |
|
Datasheet |
WS48M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO (DM) | Off-Mom | 10mA (DC) | - | 12 V | Round, Button | - | Silver | LED, Blue/Green/Red | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.15mm Dia | -40°C ~ 85°C |
|
|
WS48M-A13RGB12PBS 19MM SPST 0.1A 48V MOM METAL |
1,010 |
|
Datasheet |
WS48M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO (DM) | Off-Mom | 10mA (DC) | - | 12 V | Round, Button | - | Silver | LED, Blue/Green/Red | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.15mm Dia | -40°C ~ 85°C |
|
|
WS48M-A13RGB24PBS 19MM SPST 0.1A 48V MOM METAL |
924 |
|
Datasheet |
WS48M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO (DM) | Off-Mom | 10mA (DC) | - | 12 V | Round, Button | - | Silver | LED, Blue/Green/Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.15mm Dia | -40°C ~ 85°C |
|
|
WS48M-A12RGB24PBS 19MM SPST 0.1A 48V MOM METAL |
1,014 |
|
Datasheet |
WS48M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO (DM) | Off-Mom | 10mA (DC) | - | 12 V | Round, Button | - | Silver | LED, Blue/Green/Red | 24 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.15mm Dia | -40°C ~ 85°C |
|
|
WS48M-A12RGB12PBS 19MM SPST 0.1A 48V MOM METAL |
961 |
|
Datasheet |
WS48M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO (DM) | Off-Mom | 10mA (DC) | - | 12 V | Round, Button | - | Silver | LED, Blue/Green/Red | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.15mm Dia | -40°C ~ 85°C |
|
|
MAV19A0F200JRANTI-VANDAL SWITCH, 19MM, IP 67, |
200 |
|
Datasheet |
MAV | Tray | Active | Panel Mount, Front | Anti-Vandal | DPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|

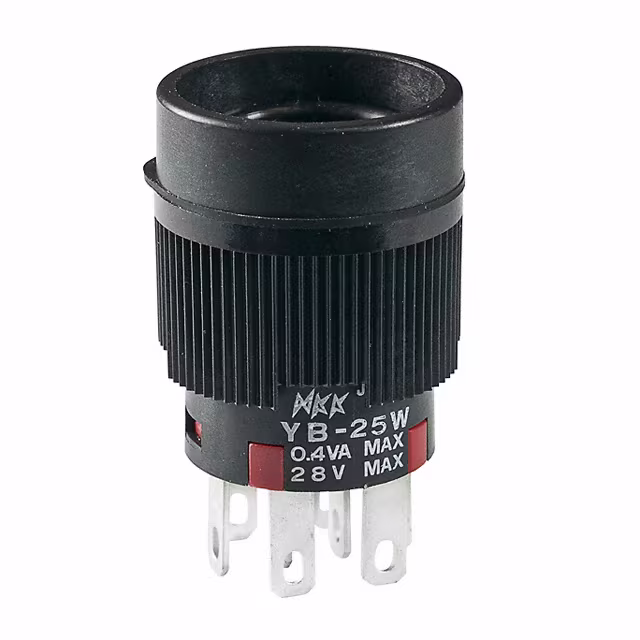

YB25WCKG01SWITCH PUSH DPDT 0.4VA 28V |
553 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
YB26CKW01SWITCH PUSHBUTTON DPDT 3A 125V |
266 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
