Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

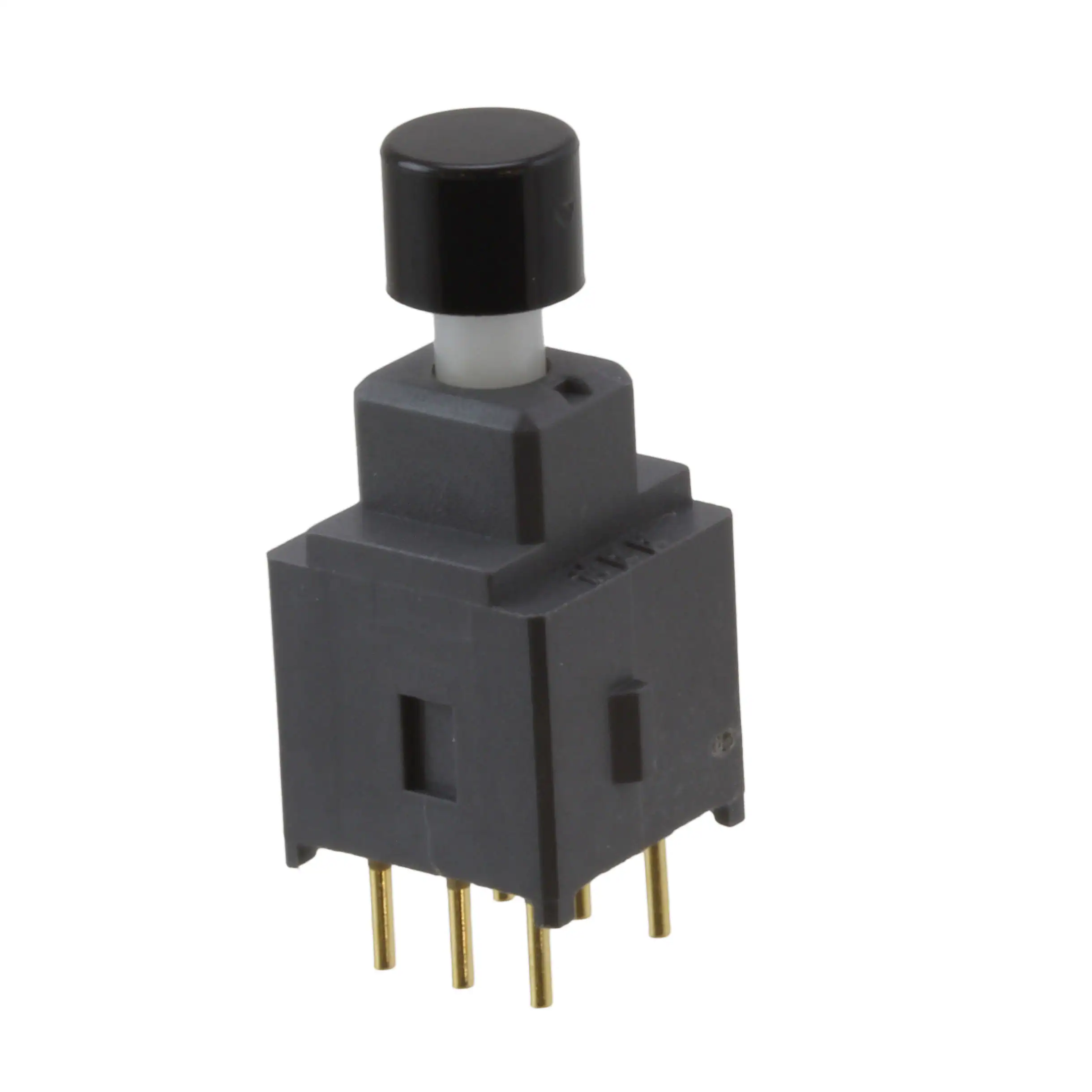

AB25AP-FASWITCH PUSH DPDT 0.4VA 28V |
170 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
BH19NMSZXSWITCH PB SPST 1A 125VAC |
505 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button | - | Silver | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
BH19NFRBXSWITCH PB SPST 1A 125VAC |
130 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
BH19NFUBXSWITCH PB SPST 1A 125VAC |
110 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -25°C ~ 55°C |
|
|
DPW 1 AG-OSWITCH PUSHBUTTON ILLUM OFF - ON |
497 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button, Domed | No Marking | Orange | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | - |
|
A9PS16-0012SWITCH PUSH SPST-NO 0.1A 28V |
147 |
|
Datasheet |
A9PS | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP64 - Dust Tight, Water Resistant | Sealed - Flux Protection | - | -20°C ~ 80°C |
|
|
DPWL 1 CG D2D-GRSWITCH PUSHBUTTON ILLUM OFF-MOM |
500 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button, Domed | No Marking | Green | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPWL 1 CG D2D-RGSWITCH PUSHBUTTON ILLUM OFF-MOM |
500 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button, Domed | No Marking | Red | LED, Green | 2.2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPWL 1 CG D1A-RGSWITCH PUSHBUTTON ILLUM OFF-MOM |
498 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button, Domed | No Marking | Red | LED, Green | 2.2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPWL 1 CG D1A-KRSWITCH PUSHBUTTON ILLUM OFF-MOM |
498 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button, Domed | No Marking | Black | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPWL 1 CG D1A-GRSWITCH PUSHBUTTON ILLUM OFF-MOM |
497 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button, Domed | No Marking | Green | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
MAV16CBRE0JR0VANTI-VANDAL SWITCH, 16MM, IP 67, |
200 |
|
Datasheet |
MAV | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 11.90mm Dia | -20°C ~ 70°C |
|
|
MAV16CARE1JR12VANTI-VANDAL SWITCH, 16MM, IP 67, |
195 |
|
Datasheet |
MAV | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Silver | LED, White | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 11.90mm Dia | -20°C ~ 70°C |
|
|
MAV16CARE0JR0VANTI-VANDAL SWITCH, 16MM, IP 67, |
175 |
|
Datasheet |
MAV | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 11.90mm Dia | -20°C ~ 70°C |
|
|
MAV16CBRE1JR12VANTI-VANDAL SWITCH, 16MM, IP 67, |
140 |
|
Datasheet |
MAV | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Silver | LED, White | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 11.90mm Dia | -20°C ~ 70°C |
|
|
G3B15AP-XASWITCH PUSHBUTTON SPDT 0.4VA 28V |
22 |
|
Datasheet |
G3B | Bulk | Active | Surface Mount | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

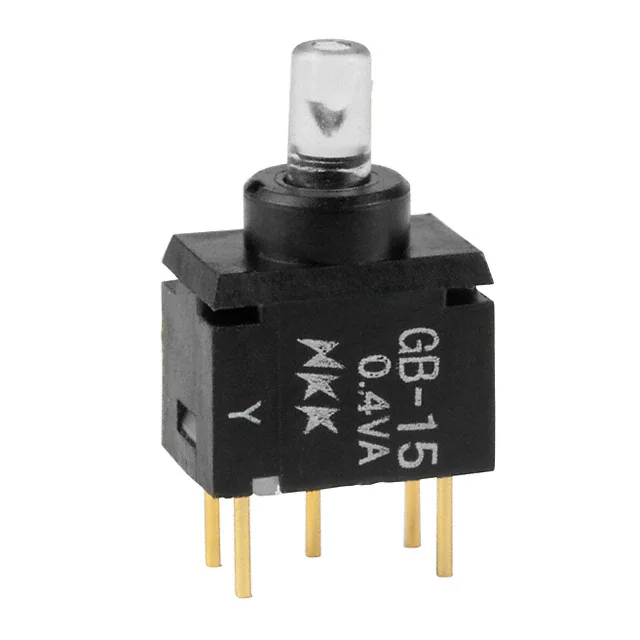

GB15JPDSWITCH PUSH SPDT 0.4VA 28V |
480 |
|
Datasheet |
GB | Box | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Clear | LED, Amber | 2 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
|

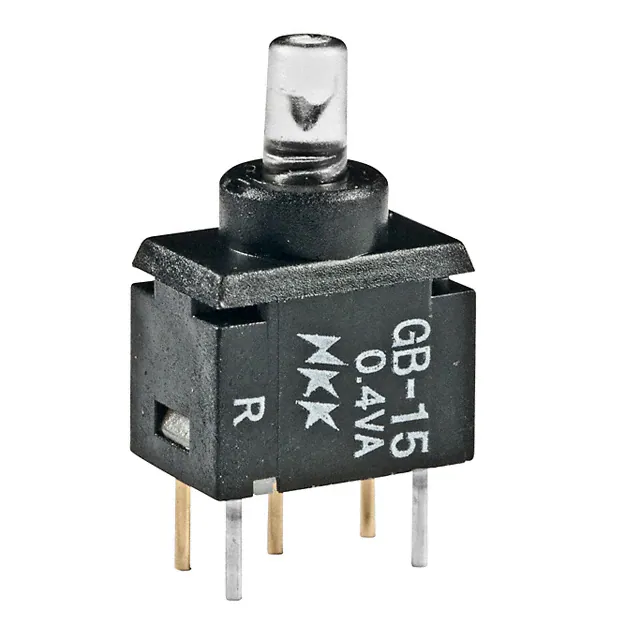

GB15JPCSWITCH PUSH SPDT 0.4VA 28V |
101 |
|
Datasheet |
GB | Box | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Clear | LED, Red | 1.95 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
|

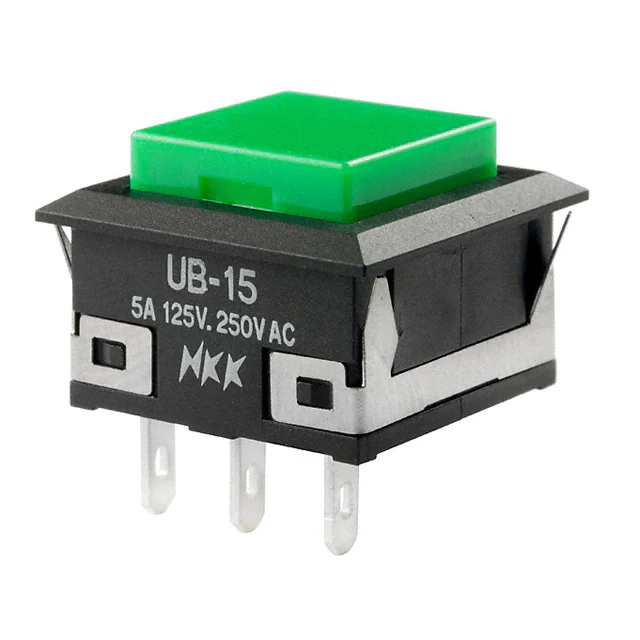

UB15KKW01N-FSWITCH PUSHBUTTON SPDT 5A 125V |
20 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | Plunger and Panel Seal | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
G3B15AH-R-YCSWITCH PUSH SPDT 0.4VA 28V |
500 |
|
Datasheet |
G3B | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
