Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPW 1 BG S-RSWITCH PUSHBUTTON ILLUM ON - OFF |
559 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Snap-In | Standard | SPST-NC | On-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPW 1 CG SG-FOSWITCH PUSHBUTTON ILLUM OFF-MOM |
500 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

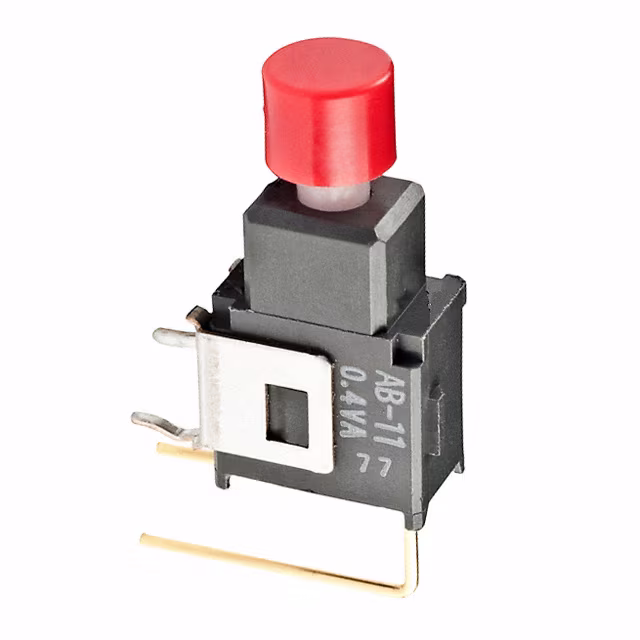

AB11BV-FCSWITCH PUSH SPST-NO 0.4VA 28V |
9 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
465031772507WS-PBTU PUSHBUTTON SWITCH |
335 |
|
Datasheet |
WS-PB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
AB11CPSWITCH PUSH SPST-NO 0.4VA 28V |
109 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB15AH-HASWITCH PUSH SPDT 0.4VA 28V |
110 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
700DP7B10M1RESWITCH PUSH DPDT 0.4VA 20V |
304 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
DPW 1 CG-YSWITCH PUSHBUTTON ILLUM OFF-MOM |
560 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Yellow | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPW 1 CG-KSWITCH PUSHBUTTON ILLUM OFF-MOM |
554 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPW 1 CG-RSWITCH PUSHBUTTON ILLUM OFF-MOM |
358 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
8715SWITCH MOM 2POS NC STLMP |
130 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 10A (DC) | - | 12 V | Round, Plunger | No Marking | White | - | - | Quick Connect | - | - | - | - |
|
|
DPWL 1 CG-RGSWITCH PUSHBUTTON ILLUM OFF-MOM |
500 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Red | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPWL 1 CG-KYSWITCH PUSHBUTTON ILLUM OFF-MOM |
500 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Black | LED, Yellow | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPWL 1 CG-KRSWITCH PUSHBUTTON ILLUM OFF-MOM |
500 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Black | LED, Red | 1.7 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPWL 1 CG-KGSWITCH PUSHBUTTON ILLUM OFF-MOM |
499 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPWL 1 CG-RRSWITCH PUSHBUTTON ILLUM OFF-MOM |
499 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Red | LED, Red | 1.7 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPW 1 BG D1P-GSWITCH PUSHBUTTON ILLUM ON - OFF |
500 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 200mA (AC/DC) | 250 V | 50 V | Square, Button | No Marking | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPW 1 BG D2P-GSWITCH PUSHBUTTON ILLUM ON - OFF |
500 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button, Domed | No Marking | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPW 1 BG D1P-RSWITCH PUSHBUTTON ILLUM ON - OFF |
499 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 200mA (AC/DC) | 250 V | 50 V | Square, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
DPW 1 BG D2P-RSWITCH PUSHBUTTON ILLUM ON - OFF |
440 |
|
Datasheet |
DPW | Bag | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
