Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPA 106 DSWITCH PUSHBUTTON 1-POLE ON - ON |
499 |
|
Datasheet |
MPA | Box | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.20mm Dia | -45°C ~ 140°C |
|
|
MPA 106 FSWITCH PUSHBUTTON 1-POLE ON-MOM |
458 |
|
Datasheet |
MPA | Box | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.20mm Dia | -45°C ~ 140°C |
|

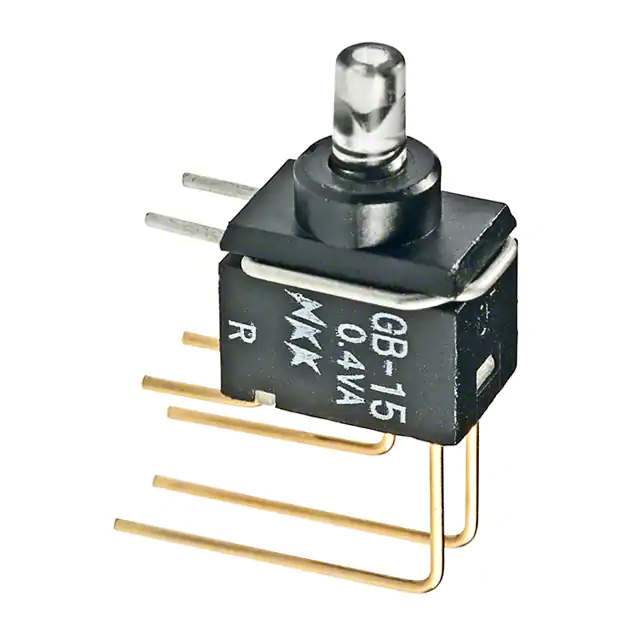

GB15JVCSWITCH PUSH SPDT 0.4VA 28V |
688 |
|
Datasheet |
GB | Box | Active | Through Hole, Right Angle, Vertical | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Clear | LED, Red | 1.95 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
|
|
GB15JVDSWITCH PUSH SPDT 0.4VA 28V |
126 |
|
Datasheet |
GB | Bulk | Active | Through Hole, Right Angle, Vertical | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | Clear | LED, Amber | 2 VDC | PC Pin | - | - | - | -25°C ~ 55°C |
|
|
APE 2 F-RASWITCH PUSHBUTTON 2-POLE MOM |
400 |
|
Datasheet |
APE | Box | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|

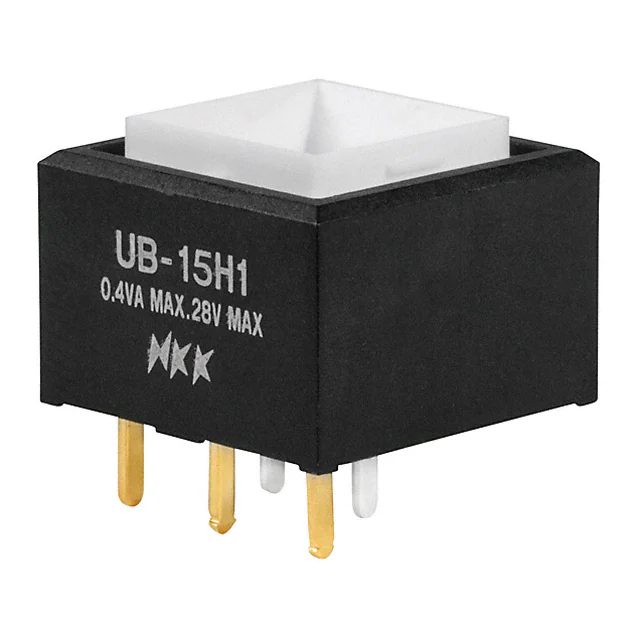

UB15SKG035FSWITCH PUSH SPDT 0.4VA 28V |
17 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

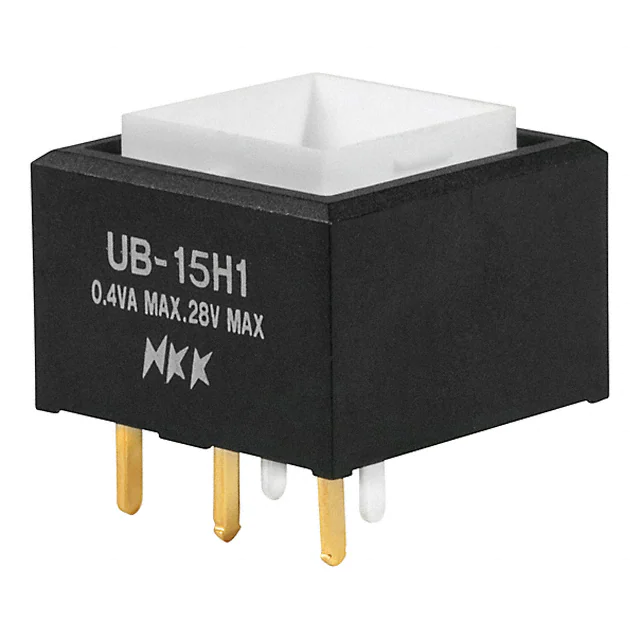

UB15SKG035CSWITCH PUSH SPDT 0.4VA 28V |
3 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
G3B25AB-XCSWITCH PUSH DPDT 0.4VA 28V |
630 |
|
Datasheet |
G3B | Tray | Active | Surface Mount | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

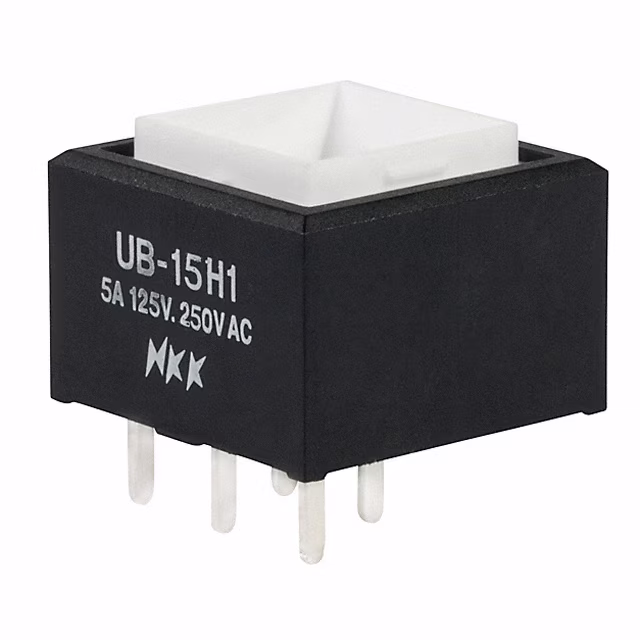

UB15SKW035CSWITCH PUSHBUTTON SPDT 5A 125V |
1,454 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
ULP12OAP1RSFCL1RGBSWITCH PB SPDT 0.1A 28V |
628 |
|
Datasheet |
ULP | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 28 V | Square, Button | - | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 2.1, 3.1, 3.2 VDC | PC Pin | - | - | - | -40°C ~ 85°C |
|

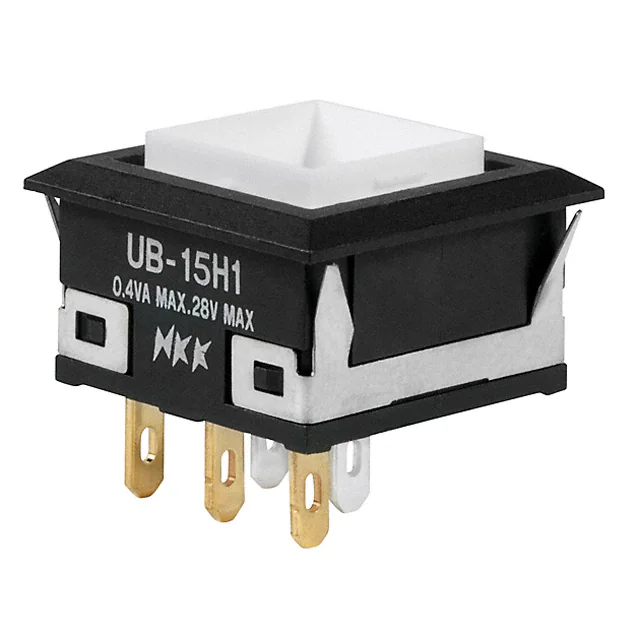

UB15KKG015CSWITCH PUSH SPDT 0.4VA 28V |
19 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
MBNR15JW01-A-1ASNAP-ACTION SNAP-IN MOUNT PUSHBU |
157 |
|
- |
MB2400 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 2A (AC) | 125 V | - | Square, Button (Not Included) | - | Black | - | - | Solder Lug | - | - | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|
|
2474606-6STAINLESS, HIGH BUTTON, WHITE LE |
119 |
|
Datasheet |
AV12 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 24 V | Round, Button | - | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -20°C ~ 55°C |
|
|
2474606-8STAINLESS, HIGH BUTTON, YELLOW L |
118 |
|
Datasheet |
AV12 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 24 V | Round, Button | - | Silver | LED, Yellow | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -20°C ~ 55°C |
|
|
2474606-3STAINLESS, HIGH BUTTON, YELLOW L |
118 |
|
Datasheet |
AV12 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 24 V | Round, Button | - | Silver | LED, Yellow | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -20°C ~ 55°C |
|
|
2474606-1STAINLESS, HIGH BUTTON, WHITE LE |
117 |
|
Datasheet |
AV12 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 24 V | Round, Button | - | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -20°C ~ 55°C |
|
|
2474606-2STAINLESS, HIGH BUTTON, RED LED |
113 |
|
Datasheet |
AV12 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 24 V | Round, Button | - | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -20°C ~ 55°C |
|
|
2474606-5STAINLESS, HIGH BUTTON, BLUE LED |
113 |
|
Datasheet |
AV12 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 24 V | Round, Button | - | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -20°C ~ 55°C |
|
|
2474606-9STAINLESS, HIGH BUTTON, GREEN LE |
102 |
|
Datasheet |
AV12 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 24 V | Round, Button | - | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -20°C ~ 55°C |
|
|
MBN15SS2W13-BCBRACKET PC MOUNT MINIATURE PUSHB |
108 |
|
Datasheet |
M | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
