Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V3-101SWITCH SNAP ACTION SPDT 11A 125V |
254 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 227gf | 57gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|
BZ-R-A2SWITCH SNAP ACTION SPDT 15A 125V |
181 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 198 ~ 255gf | 113gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0003" (0.008mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
83137004SWITCH SNAP ACTION SPDT 5A 250V |
102 |
|
Datasheet |
83137 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Side Rotary, Wire | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 0.122gfm | 0.031gfm | - | 26° | 14° | 12° | -20°C ~ 125°C |
|
1SX1-H58SWITCH SNAP ACTION SPDT 7A 250V |
784 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|

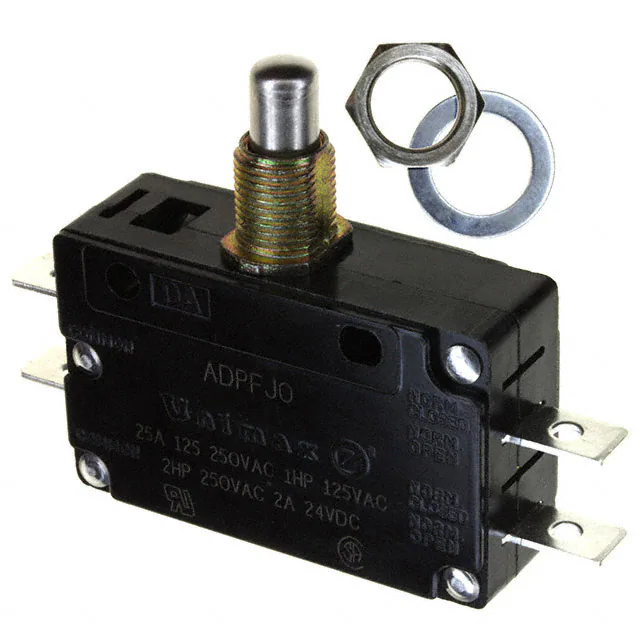

ADPFF3J04AYSWITCH SNAP ACT DPST-NO 25A 125V |
172 |
|
Datasheet |
A | Bulk | Active | DPST-NO | Off-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 1134gf | 170gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|

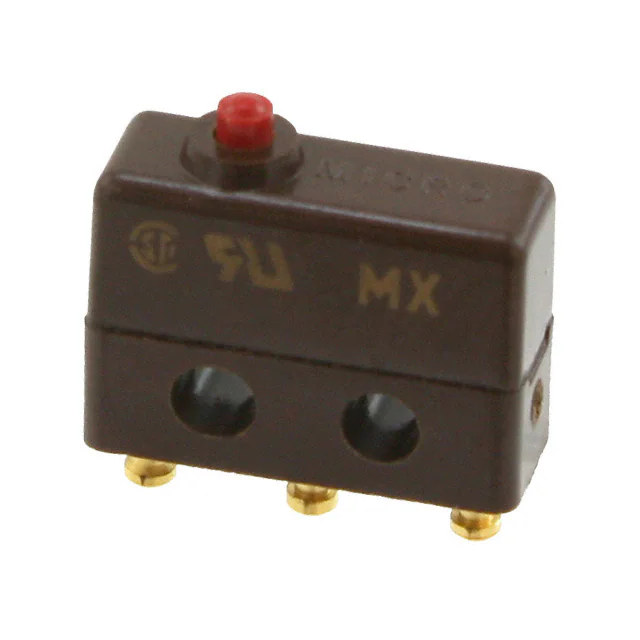

21SX1-TSWITCH SNAP ACTION SPDT 7A 250V |
195 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
L1-1MS.jpg)
|
D2VW-01L1-1MSSWITCH SNAP ACT SPDT 0.1A 125V |
777 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|

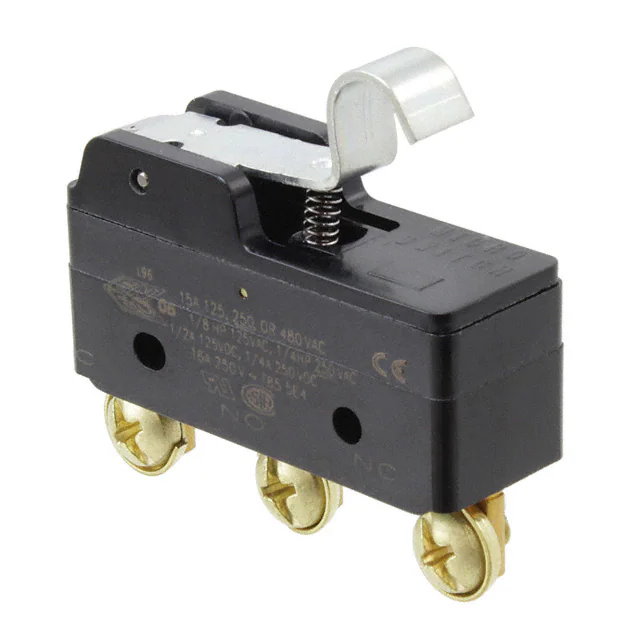

BZ-2RW80147-P4SWITCH SNAP ACTION SPDT 15A 125V |
409 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Screw Terminal | - | - | 170gf | 43gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
BZ-2RW80-A2SWITCH SNAP ACTION SPDT 15A 125V |
262 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 71gf | 14gf | 0.750" (19.1mm) | - | 0.050" (1.3mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
BZ-2RD-A2SWITCH SNAP ACTION SPDT 15A 125V |
179 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.835" (21.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
11SX21-TSWITCH SNAP ACTION SPDT 5A 250V |
356 |
|
Datasheet |
SX | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 71 ~ 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
D2VW-01L2-1MSSWITCH SNAP ACT SPDT 0.1A 125V |
1,735 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
BZ-2RW82555110TSWITCH SNAP ACTION SPDT 15A 125V |
217 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 99gf | 21gf | 1.188" (30.2mm) | - | 0.040" (1.0mm) | 0.156" (3.96mm) | -55°C ~ 85°C |
|
|
BZ-2RW84-A2SWITCH SNAP ACTION SPDT 15A 125V |
170 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 28gf | 3.500gf | 0.750" (19.1mm) | 0.328" (8.3mm) | 0.050" (1.3mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
BZ-2RW863-A2SWITCH SNAP ACTION SPDT 15A 125V |
143 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 28gf | - | 0.750" (19.1mm) | - | 0.140" (3.55mm) | 0.500" (12.7mm) | -55°C ~ 85°C |
|
BZ-2RW822TSWITCH SNAP ACTION SPDT 15A 125V |
639 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 170gf | 43gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
V3L-1084SWITCH SNAP ACTION SPDT 15A 125V |
296 |
|
Datasheet |
V3L | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 113gf | 14gf | 0.565" (14.35mm) | 0.260" (6.6mm) | 0.090" (2.3mm) | 0.150" (3.8mm) | - |
|

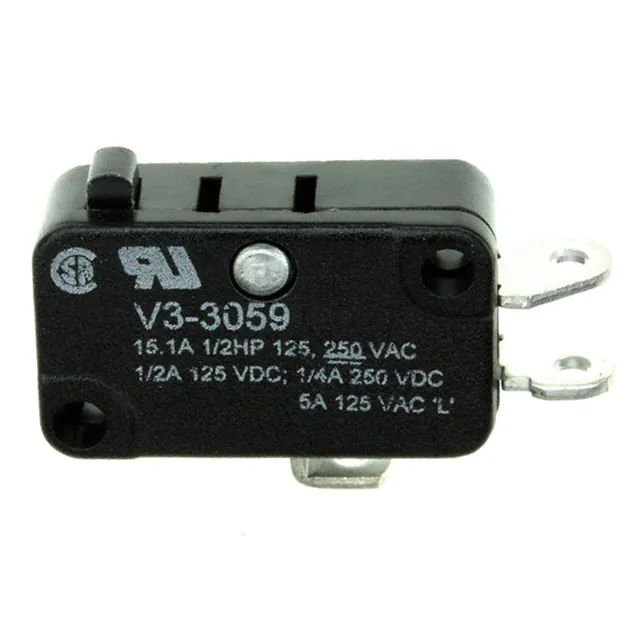

V3-3059SWITCH SNAP ACTION SPDT 15A 125V |
200 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | - |
|

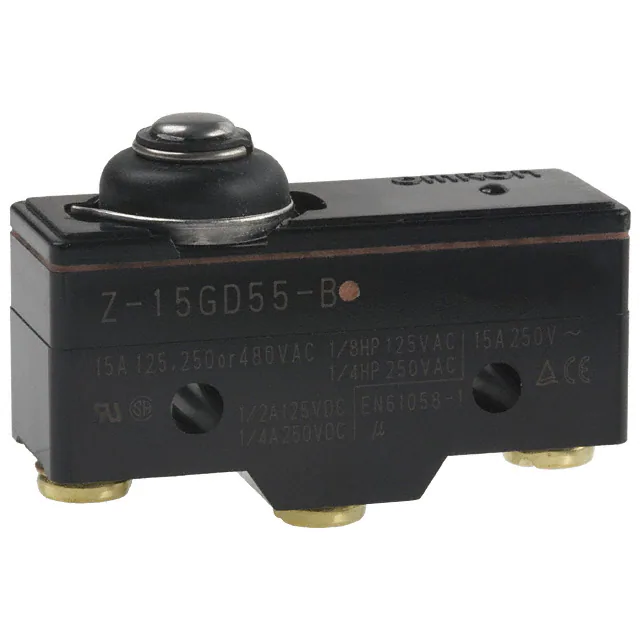

Z-15GD55-BSWITCH SNAP ACTION SPDT 15A 125V |
198 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP62 | - | 540gf | 114gf | 0.846" (21.5mm) | 0.071" (1.8mm) | 0.002" (0.05mm) | 0.062" (1.6mm) | -15°C ~ 80°C |
|
831066C3.0SWITCH SNAP ACTION 10A 1/4 |
558 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
