Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11SM1-TSWITCH SNAP ACTION SPDT 5A 250V |
109 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|

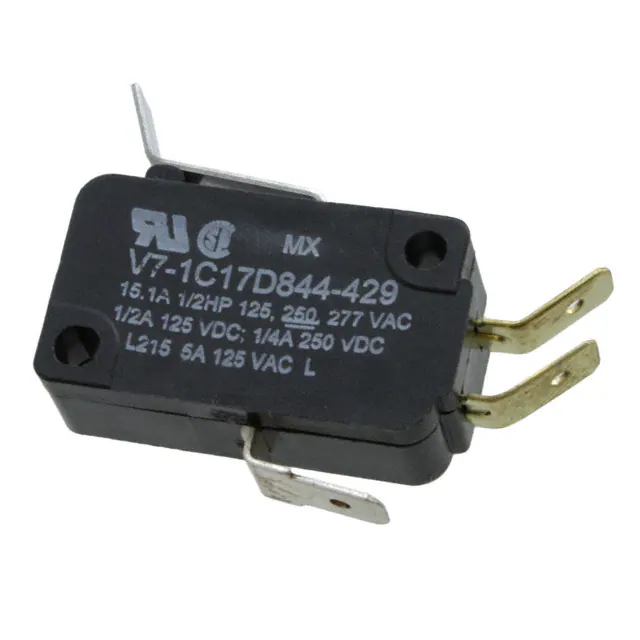

V7-1C17D844-429SWITCH SNAP ACTION SPDT 15A 125V |
172 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Formed | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 130gf | 14gf | 0.820" (20.8mm) | 0.075" (1.9mm) | 0.017" (0.43mm) | 0.045" (1.1mm) | -40°C ~ 85°C |
|
83186003SWITCH SNAP ACTION SPDT 6A 250V |
374 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
83186004SWITCH SNAP ACTION SPDT 6A 250V |
167 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
D2JW-01K21SWITCH SNAP ACTION SPDT 0.1A 30V |
1,040 |
|
Datasheet |
D2JW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 100gf | 20gf | 0.575" (14.6mm) | 0.205" (5.2mm) | 0.020" (0.5mm) | 0.045" (1.1mm) | -40°C ~ 85°C |
|
MMGGD1L2CSWITCH SNAP ACTION SPDT 7A 250V |
215 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Turret | - | - | 170gf | 20gf | 0.330" (8.4mm) | 0.075" (1.9mm) | 0.012" (0.3mm) | 0.015" (0.4mm) | -55°C ~ 135°C |
|
BA-2RV-A4SWITCH SNAP ACTION SPDT 20A 125V |
230 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 71gf | 15gf | 0.750" (19.1mm) | 0.630" (16.0mm) | 0.110" (2.8mm) | 0.077" (1.96mm) | -55°C ~ 85°C |
|
1DM401SWITCH SNAP ACTION SPDT 10A 125V |
3,227 |
|
Datasheet |
DM | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 425gf | - | - | - | - | 0.520" (13.2mm) | -37°C ~ 82°C |
|
83181003SWITCH SNAP ACTION SPDT 6A 250V |
265 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
111SM1SWITCH SNAP ACTION SPDT 5A 250V |
195 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 198gf | 57gf | 0.350" (8.9mm) | 0.218" (5.5mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|

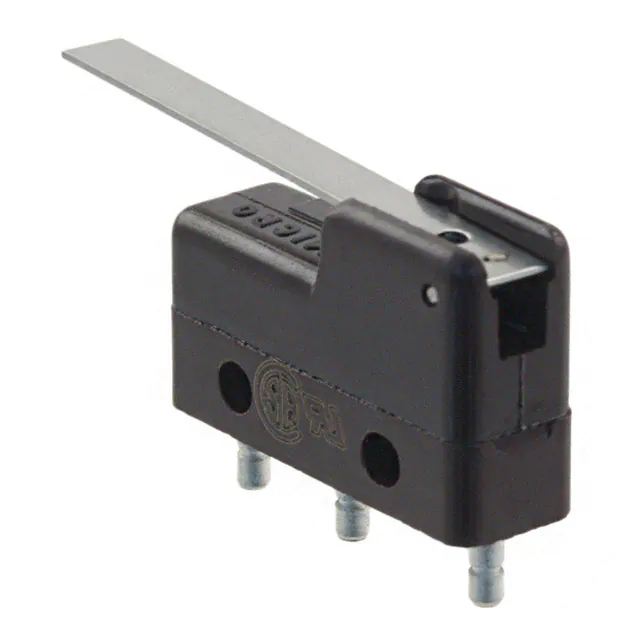

311SM2-H58SWITCH SNAP ACTION SPDT 5A 250V |
872 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 30gf | 5.099gf | 0.335" (8.5mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
D2JW-01K11SWITCH SNAP ACTION SPDT 0.1A 30V |
319 |
|
Datasheet |
D2JW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 82gf | 16gf | 0.330" (8.4mm) | 0.252" (6.4mm) | 0.027" (0.7mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
X0230672SWITCH SNAP ACTION SPDT 6A 250V |
138 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 64gf | 20gf | 0.437" (11.1mm) | - | 0.016" (0.4mm) | 0.094" (2.4mm) | -40°C ~ 105°C |
|
X0230676SWITCH SNAP ACTION SPDT 6A 250V |
306 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 85gf | 27gf | 0.512" (13.0mm) | - | 0.012" (0.3mm) | 0.070" (1.8mm) | -40°C ~ 105°C |
|
D2FW-G273MDSWITCH SNAP ACT SPST-NO 1A 30V |
560 |
|
Datasheet |
D2FW-G | Tray | Active | SPST-NO | Off-Mom | 1A (DC) | - | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 250gf | 30gf | 0.453" (11.5mm) | - | 0.040" (1.0mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
83180003SWITCH SNAP ACTION SPDT 10A 250V |
110 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 347gf | 102gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
V3-19MSWITCH SNAP ACTION SPDT 15A 125V |
186 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 170 ~ 397gf | 113gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|
X0230931SWITCH SNAP ACTION SPDT 6A 250V |
375 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 85gf | 27gf | 0.606" (15.4mm) | - | 0.012" (0.3mm) | 0.070" (1.8mm) | -40°C ~ 105°C |
|
ADPDC2J04ACSWITCH SNAP ACTION DPDT 15A 125V |
347 |
|
Datasheet |
A | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | 170gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
|
83186012SWITCH SNAP ACTION SPDT 6A 250V |
212 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
