Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2GW-SC1L2MSEALED SWITCH PCB PIN PLUNGER |
1,352 |
|
- |
D2GW | Tray | Active | SPST-NC | On-Mom | 10mA (DC) | - | 13.5 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 87gf | 2.000gf | 0.317" (8.05mm) | - | 0.055" (1.4mm) | 0.175" (4.45mm) | -40°C ~ 85°C |
|
|
D2GW-SC1L3MSEALED SWITCH PCB PIN PLUNGER |
863 |
|
- |
D2GW | Tray | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 13.5 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 87gf | 2.000gf | 0.317" (8.05mm) | - | 0.055" (1.4mm) | 0.175" (4.45mm) | -40°C ~ 85°C |
|
D2HW-BL203MRSWITCH SNP ACT SPST-NO 0.1A 125V |
912 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
X0230696SWITCH SNAP ACTION SPDT 16A 250V |
105 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 27gf | 7.000gf | 0.854" (21.7mm) | - | 0.041" (1.05mm) | 0.141" (3.6mm) | -20°C ~ 125°C |
|
D2HW-BR213MRSWITCH SNP ACT SPST-NO 0.1A 125V |
298 |
|
Datasheet |
D2HW | Tray | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 7.138gf | 0.295" (7.5mm) | - | 0.020" (0.5mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
|
D2GW-SC03MSEALED SWITCH PCB PIN PLUNGER |
1,033 |
|
- |
D2GW | Tray | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 13.5 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 122gf | 10gf | 0.276" (7.0mm) | - | 0.010" (0.25mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
V3-19SWITCH SNAP ACTION SPDT 15A 125V |
452 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 170 ~ 397gf | 113gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|
D2SW-3L2MSSWITCH SNAP ACTION SPDT 3A 125V |
1,101 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
D2QW-C003HSWITCH SNAP ACT SPST-NO 0.1A 30V |
1,161 |
|
Datasheet |
D2QW | Tray | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.330" (8.4mm) | - | - | 0.106" (2.7mm) | -40°C ~ 85°C |
|
D2D-1001SWITCH SNAP ACTION SPST 16A 250V |
1,854 |
|
Datasheet |
D2D | Bulk | Active | SPST-NO (DM) | Off-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 600gf | - | 0.500" (12.7mm) | - | - | 0.090" (2.3mm) | -25°C ~ 85°C |
|
|
D2QW-C073HSWITCH SNAP ACT SPST-NO 0.1A 30V |
451 |
|
Datasheet |
D2QW | Tray | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.472" (12.0mm) | - | - | 0.138" (3.5mm) | -40°C ~ 85°C |
|
ABJ363860SWITCH SNAP ACT SPST-NO 2A 125V |
356 |
|
Datasheet |
ABJ | Bulk | Active | SPST-NO | Off-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 130gf | 30gf | 0.630" (16.0mm) | 0.236" (6.0mm) | 0.040" (1.0mm) | 0.098" (2.5mm) | -40°C ~ 85°C |
|
D2VW-01L1-1HSSWITCH SNAP ACT SPDT 0.1A 125V |
4,715 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
|
ASQ10330SWITCH SNAP ACT SPST-NO 0.1A 30V |
309 |
|
Datasheet |
ASQ1 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.330" (8.4mm) | - | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|
V7-7D17D8-207SWITCH SNAP ACTION SPDT 1A 125V |
1,856 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 141gf | - | 0.806" (20.5mm) | 0.120" (3.0mm) | 0.041" (1.05mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
83186063SWITCH SNAP ACTION SPDT 6A 250V |
103 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 85gf | 27gf | 0.606" (15.4mm) | - | 0.012" (0.3mm) | 0.070" (1.8mm) | -40°C ~ 125°C |
|

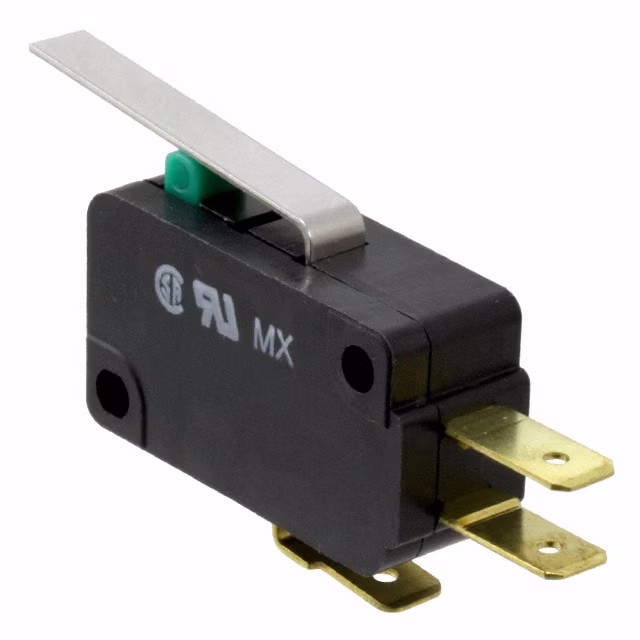

V7-2S17D8-022SWITCH SNAP ACT SPDT 0.1A 125V |
110 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 41gf | 3.000gf | 0.602" (15.3mm) | 0.128" (3.25mm) | 0.028" (0.7mm) | 0.070" (1.8mm) | -40°C ~ 85°C |
|
D2SW-3MSSWITCH SNAP ACTION SPDT 3A 125V |
4,259 |
|
Datasheet |
D2SW | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
D2VW-01L3-3HSSWITCH SNP ACT SPST-NO 0.1A 125V |
4,076 |
|
Datasheet |
D2VW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D2VW-01L1B-1HSSWITCH SNAP ACT SPDT 0.1A 125V |
1,350 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 60gf | 5.099gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.080" (2.0mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
