Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

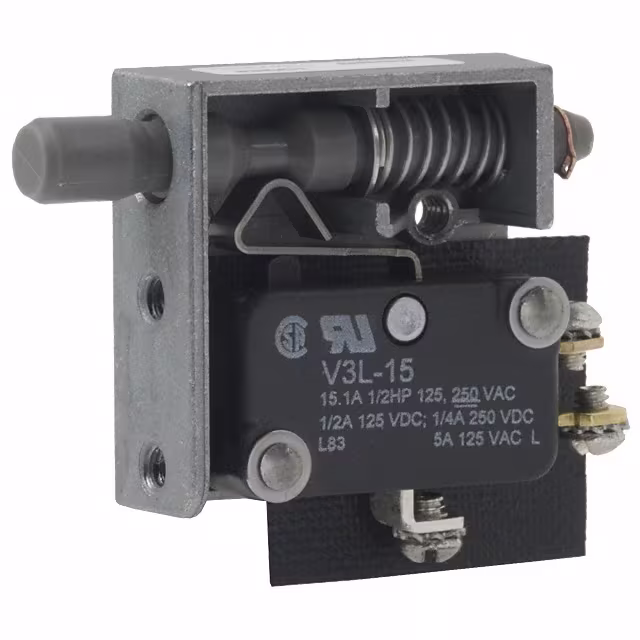

22AC1SWITCH SNAP ACTION SPDT 15A 125V |
441 |
|
Datasheet |
AC | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -18°C ~ 82°C |
|

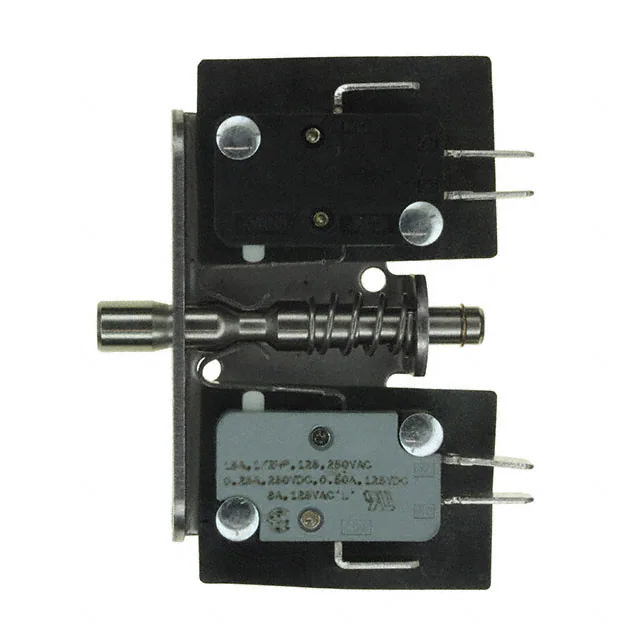

23TL4A4SWITCH SNAP ACT SPDTX2 15A 125V |
142 |
|
Datasheet |
TL | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|
NGCMA10AX01MSWITCH SNAP ACTION DPST 6A 120V |
47 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Actuator Seal Boot | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
DZ-10GW2-1BSWITCH SNAP ACTION DPDT 10A 125V |
93 |
|
Datasheet |
DZ | Tray | Active | DPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 213gf | 42gf | 1.250" (31.8mm) | - | 0.135" (3.4mm) | 0.047" (1.2mm) | -25°C ~ 80°C |
|
23TL604SWITCH SNAP ACT SPDTX2 15A 125V |
83 |
|
Datasheet |
TL | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|

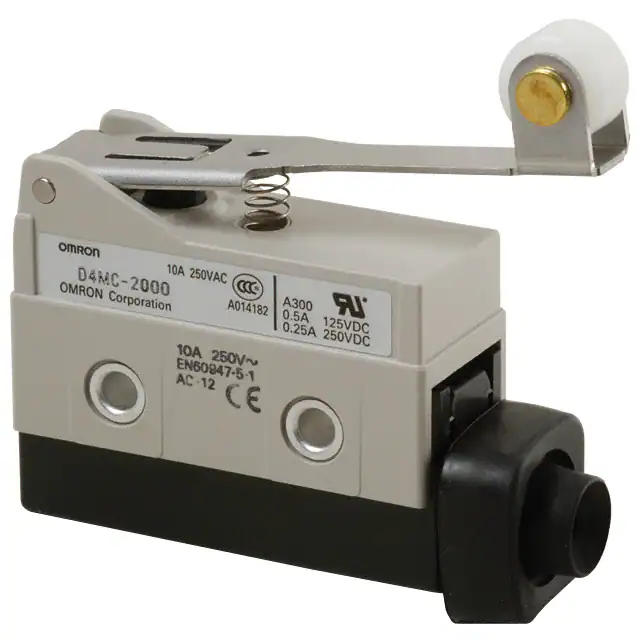

D4MC-2000SWITCH SNAP ACTION SPDT 10A 125V |
123 |
|
Datasheet |
D4MC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 200gf | 40gf | 1.575" (40.0mm) | - | 0.118" (3.0mm) | 0.197" (5.0mm) | -10°C ~ 80°C |
|
83123024SWITCH SNAP ACTION 5A 2.2M CBL |
29 |
|
Datasheet |
- | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | - | Cable Length 2m | 612gf | 153gf | 0.449" (11.4mm) | - | 0.008" (0.2mm) | 0.011" (0.3mm) | -5°C ~ 85°C |
|
NGCMA10AX01BSWITCH SNAP ACTION DPST 6A 120V |
49 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
GLCB06A1B-4SWITCH SNAP ACTION DPST 6A 120V |
44 |
|
Datasheet |
GLS | Bulk | Active | DPST-NC (DB) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
D4MC-5000SWITCH SNAP ACTION SPDT 10A 125V |
86 |
|
Datasheet |
D4MC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Overtravel Plunger | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 600gf | 100gf | 0.859" (21.8mm) | 0.063" (1.6mm) | 0.008" (0.2mm) | 0.197" (5.0mm) | -10°C ~ 80°C |
|
NGCMB10AX01CSWITCH SNAP ACTION DPST 6A 120V |
28 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|

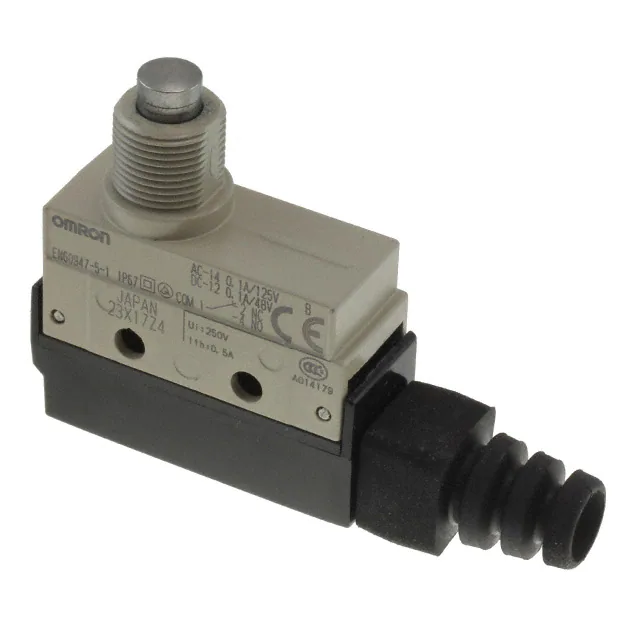

SHL-D55-01SWITCH SNAP ACT SPDT 0.1A 125V |
275 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1000gf | 200gf | 1.339" (34.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -10°C ~ 80°C |
|
NGCMB10AX24CSWITCH SNAP ACT 4PST 750MA 250V |
42 |
|
Datasheet |
NGC | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 750mA (AC), 100mA (DC) | 250 V | 250 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 969gf | 224gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.050" (1.3mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|

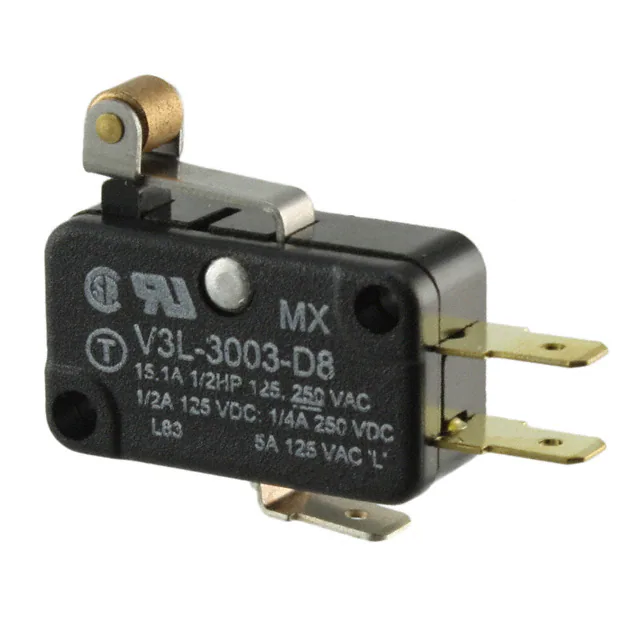

V3L-3003-D8SWITCH SNAP ACTION SPDT 15A 125V |
189 |
|
Datasheet |
V3L | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 195gf | 15gf | 0.812" (20.6mm) | 0.047" (1.2mm) | 0.013" (0.33mm) | 0.040" (1.0mm) | - |
|

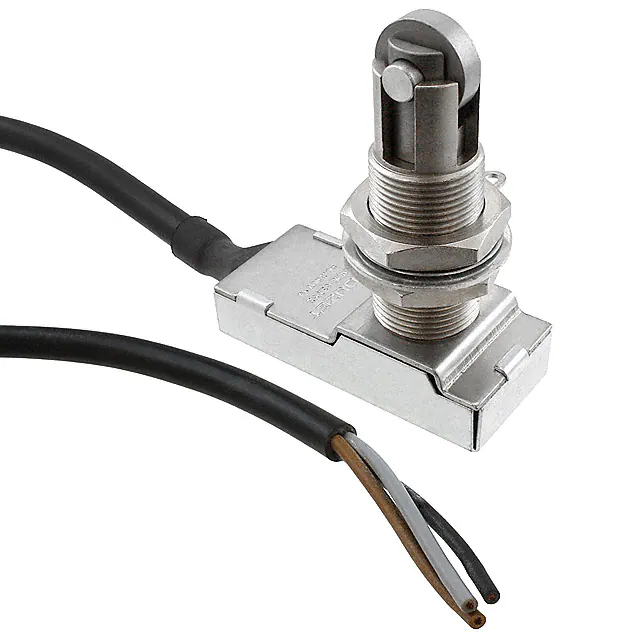

83732323SWITCH SNAP ACTION SPDT 5A 250V |
265 |
|
Datasheet |
83732 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Roller Plunger | Panel Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 0.5m | 1530gf | - | - | - | 0.008" (0.2mm) | - | -5°C ~ 70°C |
|
SHL-Q2255SWITCH SNAP ACTION SPDT 10A 125V |
37 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1000gf | 200gf | 1.695" (43.05mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -10°C ~ 80°C |
|

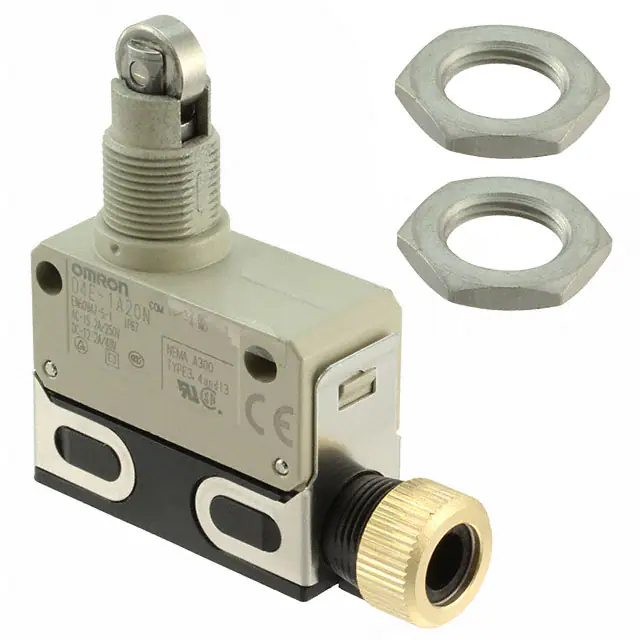

D4E-1A20NSWITCH SNAP ACTION SPDT 5A 125V |
72 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.235" (31.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
D5B-5013SWITCH SNP ACT SPST-NC 0.03A 30V |
28 |
|
Datasheet |
D5B | Bulk | Active | SPST-NC | On-Mom | 30mA (DC) | - | 30 V | Domed | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 50gf | - | - | 0.024" (0.6mm) | - | - | -10°C ~ 70°C |
|
ZE-NJ-2SSWITCH SNAP ACTION SPDT 15A 125V |
31 |
|
Datasheet |
ZE | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 150gf | - | - | 15° | - | - | -10°C ~ 80°C |
|
SZL-WLC-A-NSWITCH SNAP ACTION SPDT 10A 125V |
65 |
|
Datasheet |
SZL-WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 34gfm | - | 30° | 30° | 16° | 60° | -10°C ~ 80°C |
