Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

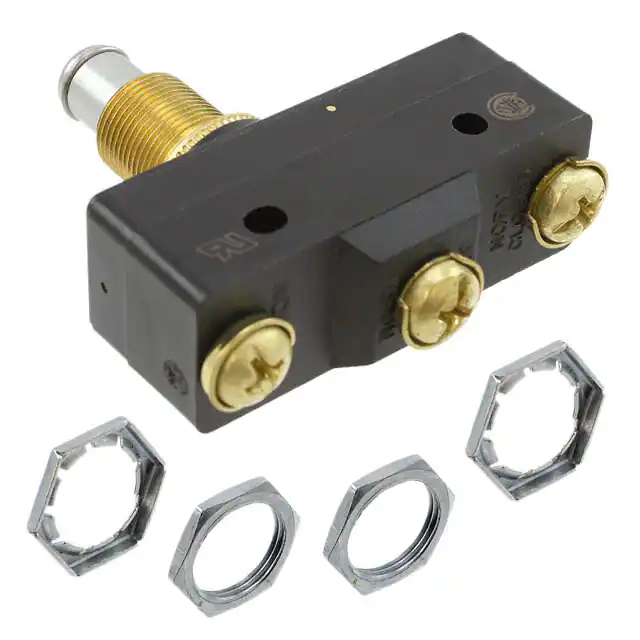

BE-2RQ1-A4SWITCH SNAP ACTION SPDT 25A 125V |
261 |
|
Datasheet |
BE | Bulk | Active | SPDT | On-Mom | 25A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 397 ~ 624gf | 283gf | 0.859" (21.8mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
313SX4-TSWITCH SNAP ACTION SPDT 1A 125V |
869 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 60gf | 11gf | 0.557" (14.15mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.010" (0.25mm) | -55°C ~ 125°C |
|
Z-15GQ55-BSWITCH SNAP ACTION SPDT 15A 125V |
5,719 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Overtravel Plunger | Panel Mount | Screw Terminal | IP62 | - | 540gf | 114gf | 0.859" (21.8mm) | 0.071" (1.8mm) | 0.002" (0.05mm) | 0.217" (5.5mm) | -15°C ~ 80°C |
|
D2VW-5L2A-1MSWITCH SNAP ACTION SPDT 5A 125V |
351 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 230gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
V3L-111SWITCH SNAP ACTION SPDT 11A 125V |
114 |
|
Datasheet |
V3L | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 113gf | 14gf | 0.812" (20.6mm) | 0.125" (3.2mm) | 0.050" (1.3mm) | 0.085" (2.16mm) | - |
|
2DM1SWITCH SNAP ACTION DPDT 10A 125V |
375 |
|
Datasheet |
DM | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | 170gf | 0.770" (19.5mm) | - | 0.045" (1.1mm) | 0.400" (10.2mm) | -37°C ~ 82°C |
|
BZ-3RQ1-A2SWITCH SNAP ACTION SPDT 15A 125V |
158 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Chassis Mount | Screw Terminal | - | Steel Plunger | 397 ~ 567gf | 113gf | 0.859" (21.8mm) | 0.020" (0.5mm) | 0.003" (0.075mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|

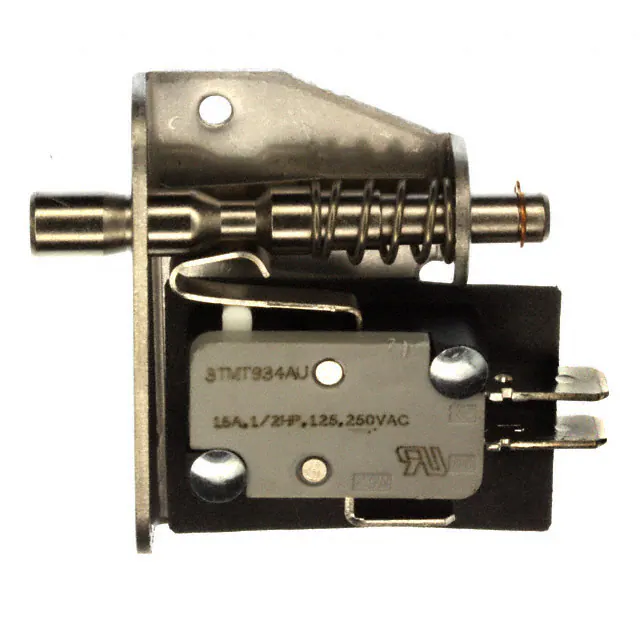

12TL4A4SWITCH SNAP ACTION SPDT 15A 125V |
311 |
|
Datasheet |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|

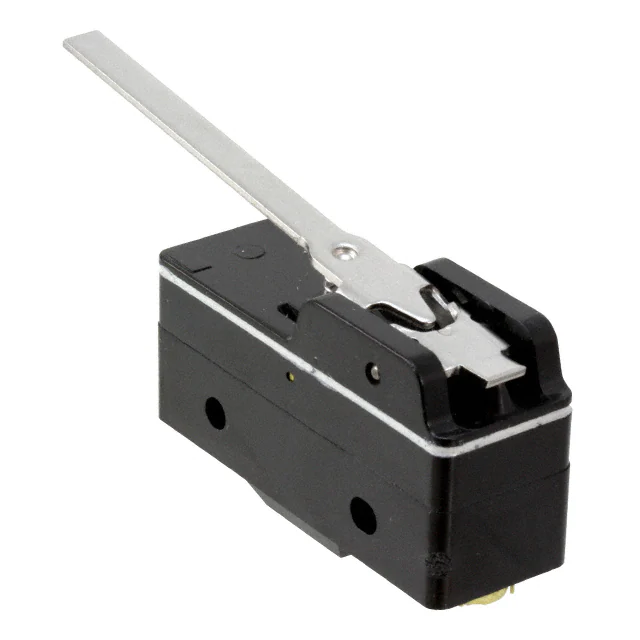

BZ-2RW805551-A2SWITCH SNAP ACTION SPDT 15A 125V |
262 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 71gf | 14gf | 0.750" (19.1mm) | - | 0.050" (1.3mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
2DM4SWITCH SNAP ACTION DPDT 10A 125V |
102 |
|
Datasheet |
DM | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | 170gf | 0.770" (19.5mm) | - | 0.045" (1.1mm) | 0.400" (10.2mm) | -37°C ~ 82°C |
|

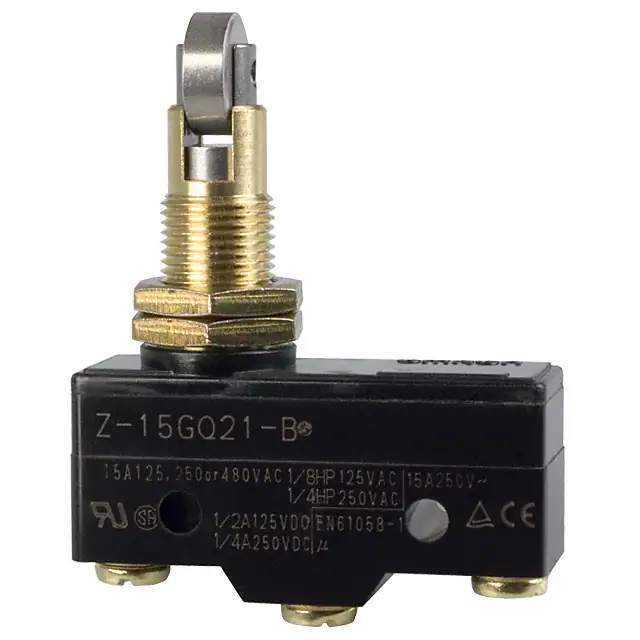

Z-15GQ21-BSWITCH SNAP ACTION SPDT 15A 125V |
315 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Cross Roller Plunger | Panel Mount | Screw Terminal | IP00 | - | 250 ~ 350gf | 114gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|

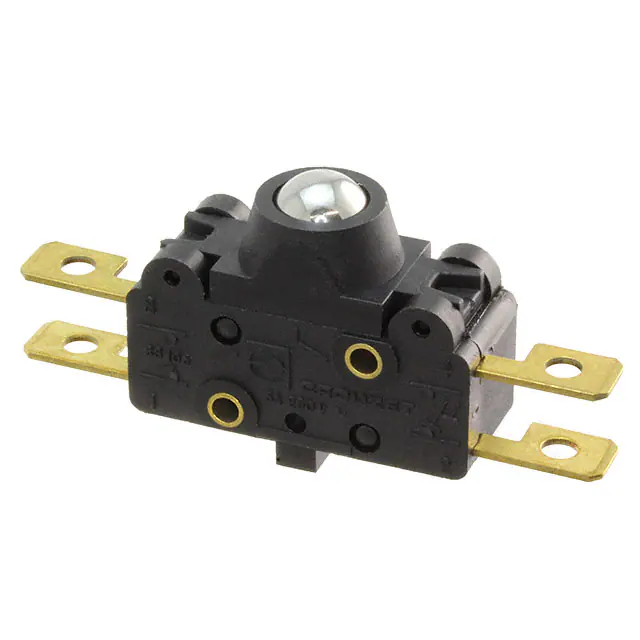

X0228914SWITCH SNAP ACTION SPDT 10A 250V |
132 |
|
Datasheet |
83106 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Ball Bearing Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 408gf | 102gf | - | 0.060" (1.5mm) | 0.020" (0.5mm) | - | -20°C ~ 85°C |
|
BZ-2RQ-A2SWITCH SNAP ACTION SPDT 15A 125V |
173 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Chassis Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 1.500" (38.1mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
4SX1-TSWITCH SNAP ACTION SPDT 7A 250V |
188 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -55°C ~ 204°C |
|
A-20GQ22-BSWITCH SNAP ACTION SPDT 20A 125V |
195 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP00 | - | 630gf | 280gf | 1.313" (33.4mm) | 0.051" (1.3mm) | 0.014" (0.35mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|
D4N-212GSWITCH SNAP ACTION DPST 3A 240V |
203 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller | 459gf | 41gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|

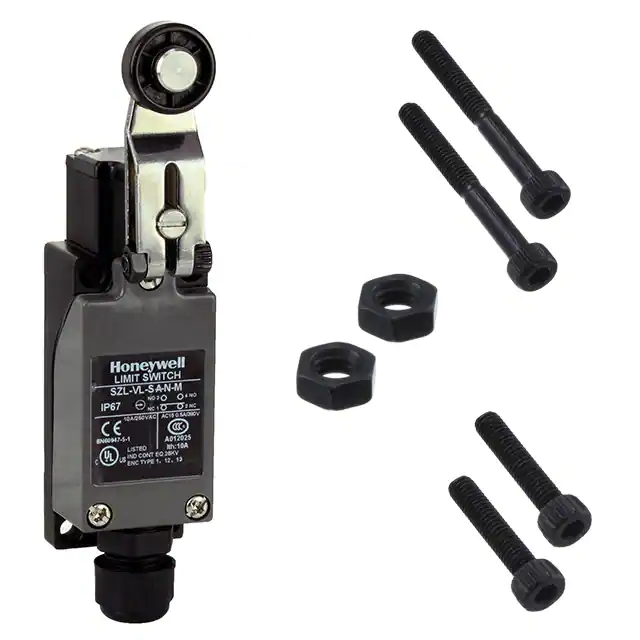

SZL-VL-S-A-N-MSWITCH SNAP ACT SPDT 0.5A 380V |
210 |
|
Datasheet |
SZL-VL-S | Bulk | Active | SPDT (DB/DM) | On-Mom | 500mA (AC), 50mA (DC) | 380 V | 220 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller | 18gfm | - | - | 25° | 15° | 70° | -20°C ~ 70°C |
|
Z-01HQ-BSWITCH SNAP ACT SPDT 0.1A 125V |
1,159 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Overtravel Plunger | Panel Mount | Screw Terminal | IP00 | - | 250gf | 80gf | 0.859" (21.8mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.217" (5.5mm) | -25°C ~ 80°C |
|

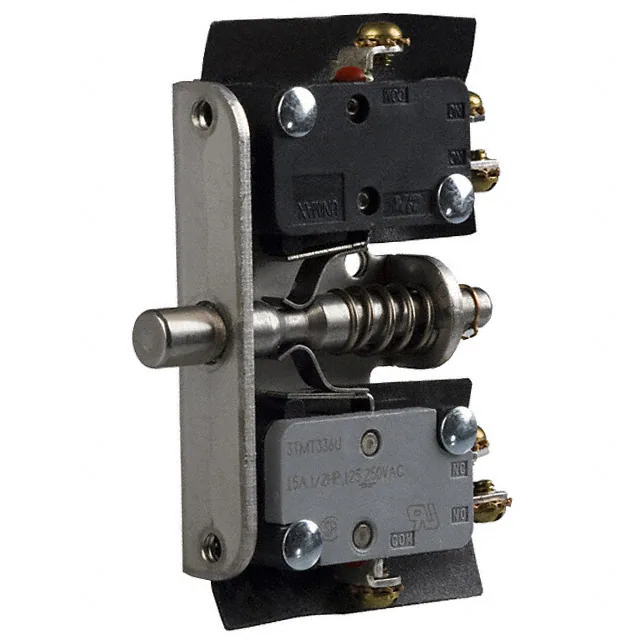

23TL602SWITCH SNAP ACT SPDTX2 15A 125V |
153 |
|
Datasheet |
TL | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|
NGCMB10AX01A1ASWITCH SNAP ACTION DPST 6A 120V |
427 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Nylon Roller | 18gfm | 2.534gfm | 25° | 25° | 15° | 65° | -25°C ~ 75°C |
