Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

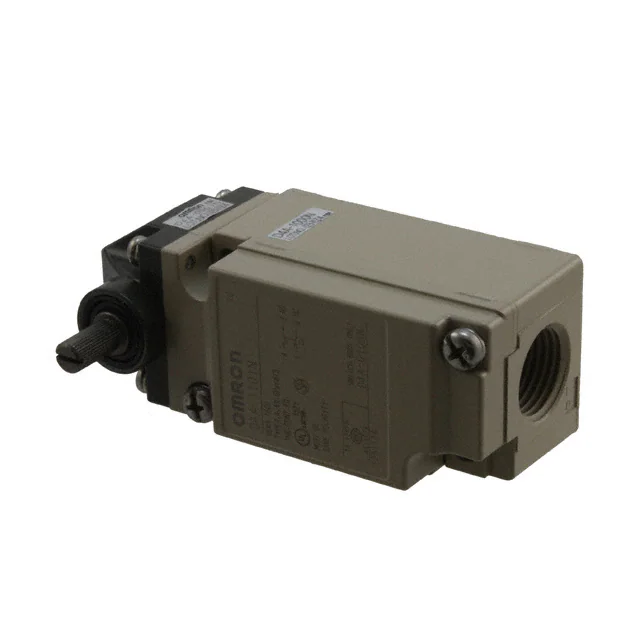

D4A-1101-NSWITCH SNAP ACTION SPDT 10A 125V |
134 |
|
Datasheet |
D4A | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 40gfm | 5.103gfm | - | 15° | 5° | 70° | -40°C ~ 100°C |
|

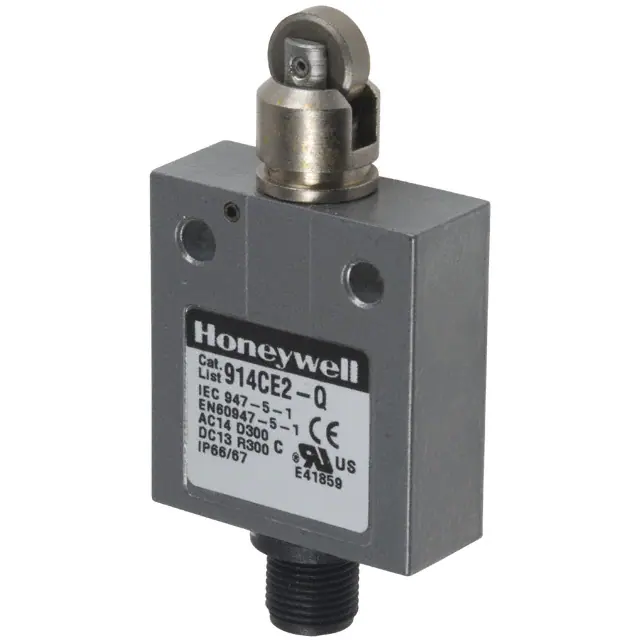

914CE2-QSWITCH SNAP ACTION SPDT 3A 125V |
30 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Roller Plunger | Chassis Mount | Connector | IP66 - Dust Tight, Water Resistant | - | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|

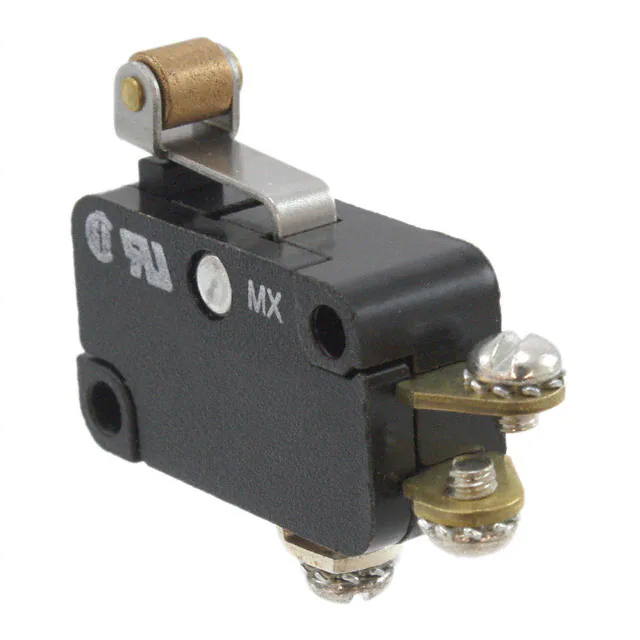

V3L-3SWITCH SNAP ACTION SPDT 15A 125V |
186 |
|
Datasheet |
V3L | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 397gf | 85gf | 0.812" (20.6mm) | 0.060" (1.5mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|
D4C-1202SWITCH SNAP ACTION SPDT 5A 250V |
59 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
D4C-1232SWITCH SNAP ACTION SPDT 5A 250V |
36 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m | 1800gf | 450gf | 1.350" (34.3mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|

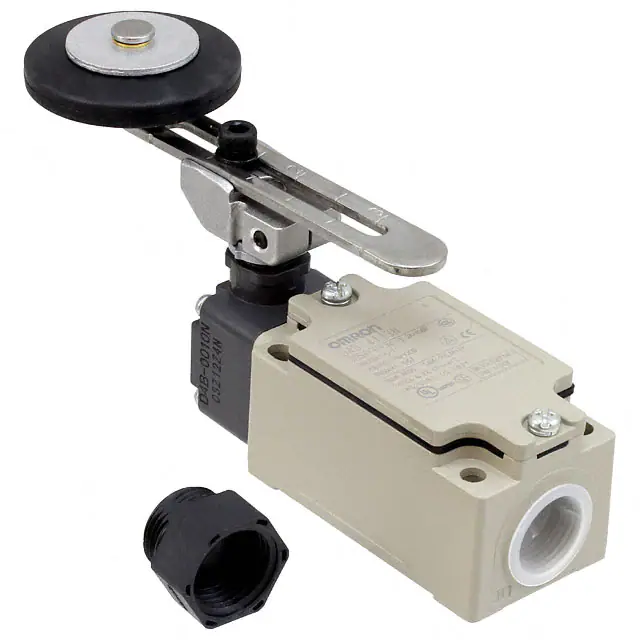

D4B-4113N-NPTSWITCH SNAP ACTION SPDT 10A 120V |
29 |
|
Datasheet |
D4B-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Rubber Roller | - | - | - | - | - | - | -40°C ~ 80°C |
|
D4F-302-5RSWITCH SNAP ACTION 4PST 15A 120V |
32 |
|
Datasheet |
D4F | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 1224gf | 153gf | 1.156" (29.4mm) | 0.047" (1.2mm) | - | 0.125" (3.2mm) | -30°C ~ 70°C |
|

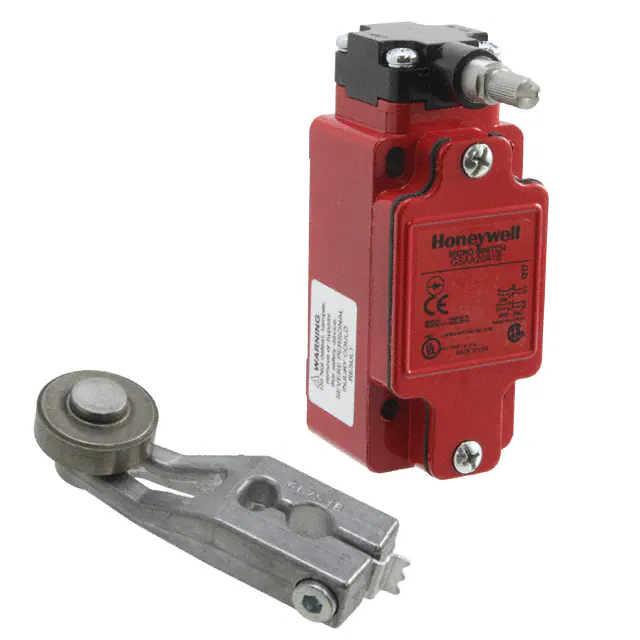

GSAA20A1BSWITCH SNAP ACTION 4PST 6A 120V |
30 |
|
Datasheet |
GSA | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 2.8A (DC) | 120 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Roller | 33gfm | 40gfm | 2.638" (67.0mm) | - | 12° | 85° | -40°C ~ 85°C |
|
SZL-WL-E-NSWITCH SNAP ACTION SPDT 10A 125V |
38 |
|
Datasheet |
SZL-WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 2720gf | - | 0.067" (1.70mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -10°C ~ 80°C |
|

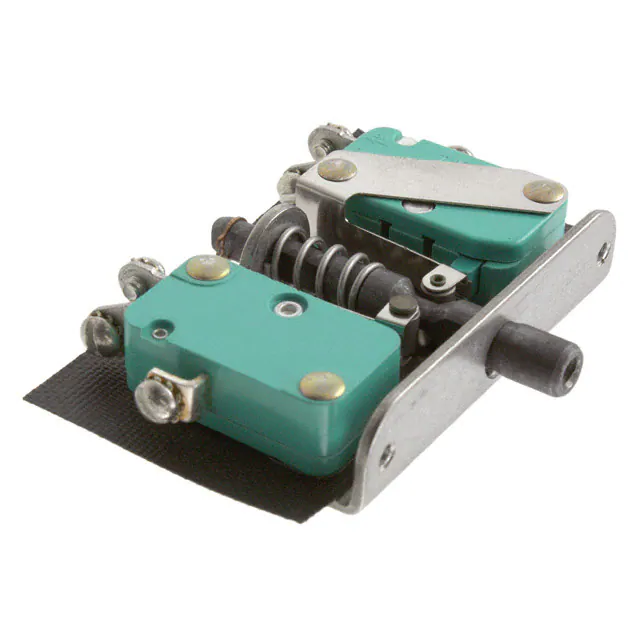

4AC54SWITCH SNAP ACT SPDTX2 15A 125V |
263 |
|
Datasheet |
AC | Bulk | Active | SPDT x 2 | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | 0.188" (4.8mm) | - | 0.125" (3.2mm) | -55°C ~ 85°C |
|
EX-XR9SWITCH SNAP ACTION SPDT 15A 125V |
2 |
|
Datasheet |
EX | Bulk | Active | SPDT | On-On | 15A (AC), 500mA (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Wire Leads | - | CCW Rotation to Reset, Explosion Proof | 793gf | - | - | 8° | - | 90° | -40°C ~ 71°C |
|
ESE-11SH1CSWITCH DETECTOR SPST-NO 0.01A 5V |
2,062 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.183" (4.65mm) | - | - | - | -10°C ~ 70°C |
|
ESE-22MH52SWITCH DETECTOR SPST-NO 0.01A 5V |
11,037 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.055" (1.4mm) | - | - | - | -10°C ~ 70°C |
|
ESE-18L11ASWITCH DETECTOR SPST-NO 0.01A 5V |
5,190 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
|
ESE-18L11CSWITCH DETECTOR SPST-NO 0.01A 5V |
6,563 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|

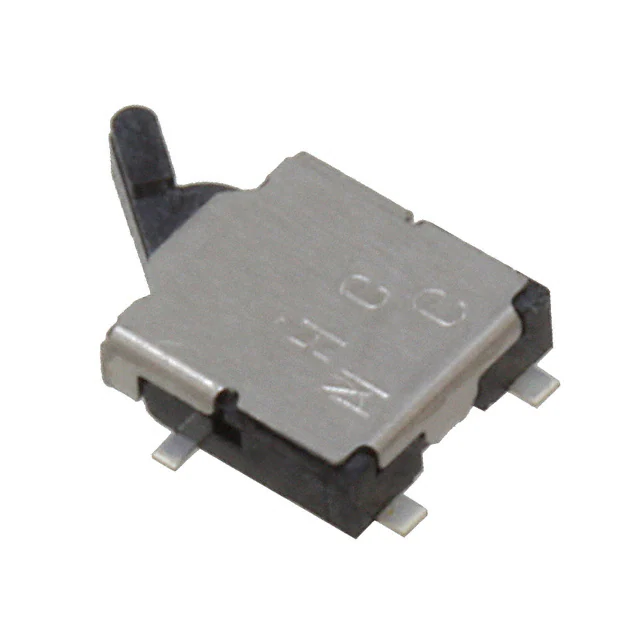

ESE-18R11CSWITCH DETECTOR SPST-NO 0.01A 5V |
4,575 |
|
Datasheet |
ESE18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.102" (2.6mm) | - | - | - | -10°C ~ 60°C |
|
ESE-13V01CSWITCH DETECTOR SPST-NO 0.01A 5V |
6,934 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-11MH2SWITCH DETECTOR SPST-NO 0.01A 5V |
1,900 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 36gf | - | 0.132" (3.35mm) | - | - | - | -10°C ~ 70°C |
|
ESE-13H01CSWITCH DETECTOR SPST-NO 0.01A 5V |
8,365 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
|
ESE-13H01BSWITCH DETECTOR SPST-NO 0.01A 5V |
7,075 |
|
Datasheet |
ESE13 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | J Lead | - | Board Guide | 30gf | - | 15° | 15° | - | 60° | -10°C ~ 60°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
