Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E3102AAAABSWITCH DETECTOR SPST-NC 5A 250V |
861 |
|
Datasheet |
3100 | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
ASQ10238SWITCH SNAP ACT SPST-NO 0.1A 30V |
497 |
|
Datasheet |
ASQ1 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.472" (12.0mm) | - | - | 0.110" (2.8mm) | -40°C ~ 85°C |
|
D2HW-C203MSSWITCH SNP ACT SPST-NO 0.1A 125V |
617 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
D2HW-C203MRSSWITCH SNP ACT SPST-NO 0.1A 125V |
2,525 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|

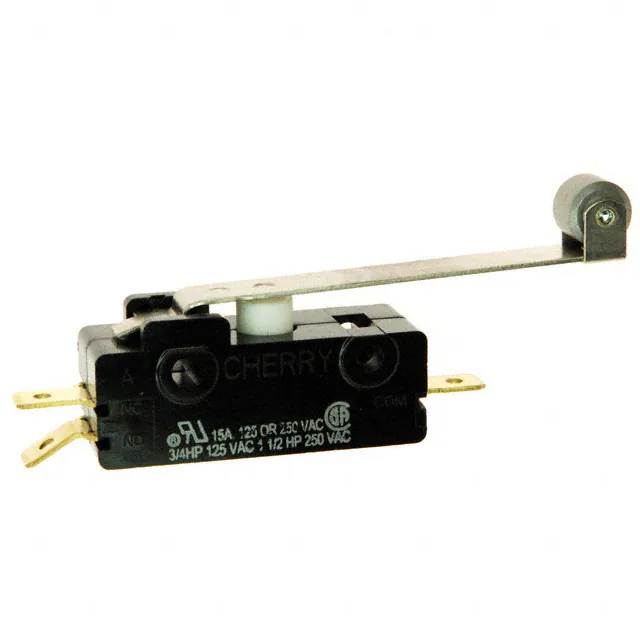

E13-00KSWITCH SNAP ACTION SPDT 15A 125V |
6,176 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 48 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | - | 0.718" (18.24mm) | 0.250" (6.35mm) | 0.093" (2.36mm) | 0.187" (4.75mm) | -40°C ~ 105°C |
|

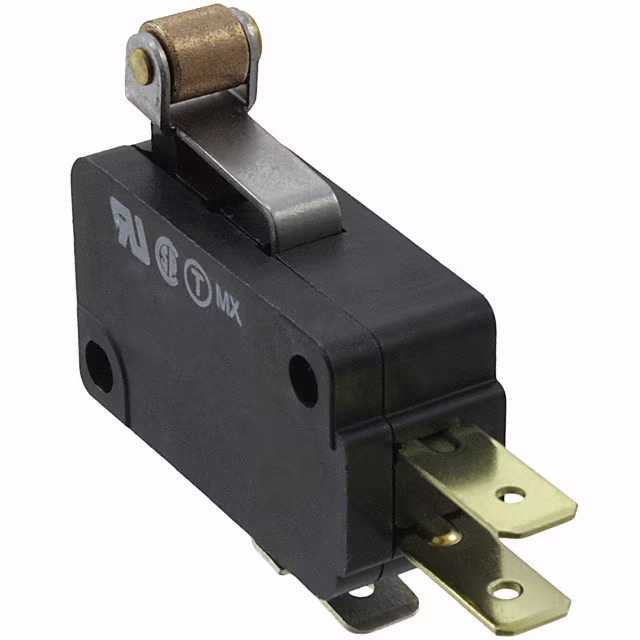

V7-1C13D8-201SWITCH SNAP ACTION SPDT 15A 125V |
183 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 175gf | 19gf | 0.812" (20.6mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.032" (0.81mm) | -40°C ~ 150°C |
|
|
W16-4044SWITCH SNAP ACT SPDT-DB 10A 125V |
140 |
|
Datasheet |
W16 | Bulk | Active | SPDT-DB | On-On | 10A (AC), 3A (DC) | 125 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 142gf | 57gf | 0.406" (10.3mm) | 0.050" (1.27mm) | 0.020" (0.51mm) | 0.012" (0.3mm) | -54°C ~ 130°C |
|

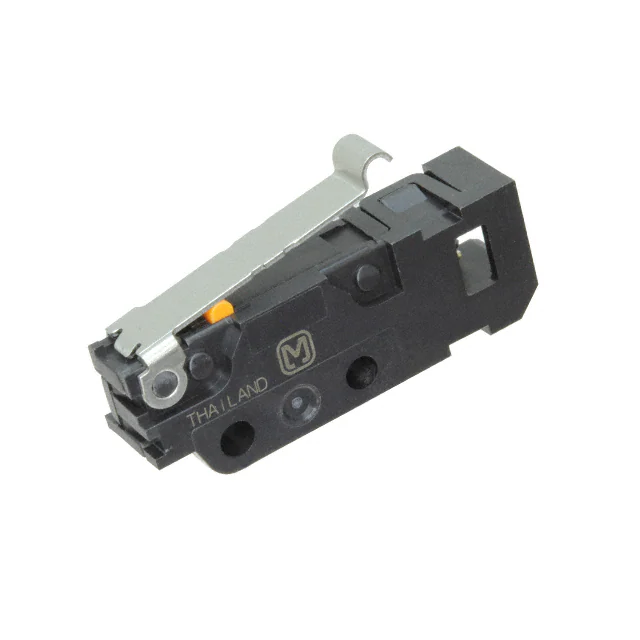

AV634564SWITCH SNAP ACT SPST-NO 0.1A 30V |
940 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Connector | IP40 | - | 51gf | 6.118gf | 0.480" (12.2mm) | 0.102" (2.6mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
V15W2-EZ100A05-W2SWITCH SNAP ACTION SPDT 5A 125V |
352 |
|
Datasheet |
V15W2 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 100gf | - | 0.812" (20.6mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
D2HW-C212MRSWITCH SNP ACT SPST-NC 0.1A 125V |
1,185 |
|
Datasheet |
D2HW | Tray | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 76gf | 7.138gf | 0.295" (7.5mm) | - | 0.020" (0.5mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D2D-2000SWITCH SNAP ACTION SPDT 10A 250V |
1,140 |
|
Datasheet |
D2D | Tray | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | Pull On Lock | 300gf | - | 0.500" (12.7mm) | - | - | 0.175" (4.5mm) | -25°C ~ 85°C |
|
D2JW-01K31SWITCH SNAP ACTION SPDT 0.1A 30V |
1,040 |
|
Datasheet |
D2JW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 97gf | 20gf | 0.406" (10.3mm) | 0.218" (5.5mm) | 0.025" (0.6mm) | 0.045" (1.1mm) | -40°C ~ 85°C |
|
V3-3057SWITCH SNAP ACTION SPDT 10A 125V |
138 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | - |
|
D2SW-3L1MSSWITCH SNAP ACTION SPDT 3A 125V |
2,205 |
|
Datasheet |
D2SW | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
.jpg)
|
D2SW-3L3MSSWITCH SNAP ACTION SPDT 3A 125V |
423 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
22SM22-TSWITCH SNAP ACTION SPDT 5A 250V |
254 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
D2SW-3L2MSWITCH SNAP ACTION SPDT 3A 125V |
135 |
|
Datasheet |
D2SW | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 6.118gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
D2HW-C263MRSWITCH SNP ACT SPST-NO 0.1A 125V |
267 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.291" (7.4mm) | - | 0.020" (0.5mm) | 0.070" (1.8mm) | -40°C ~ 85°C |
|
D2HW-C232MSWITCH SNP ACT SPST-NC 0.1A 125V |
174 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 66gf | 5.099gf | 0.440" (11.2mm) | - | 0.020" (0.5mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
D2SW-01MSSWITCH SNAP ACT SPDT 0.1A 125V |
122 |
|
Datasheet |
D2SW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 30gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
