Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2FW-G271M(D)SWITCH SNAP ACTION SPDT 1A 30V |
482 |
|
Datasheet |
D2FW-G | Tray | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 250gf | 30gf | 0.453" (11.5mm) | - | 0.040" (1.0mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
41SM1-T2SWITCH SNAP ACTION SPDT 11A 250V |
327 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
BZ-2RS-A2SWITCH SNAP ACTION SPDT 15A 125V |
104 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Chassis Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 1.110" (28.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
311SM6-TSWITCH SNAP ACTION SPDT 5A 250V |
280 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder Turret | - | - | 40gf | 7.138gf | 0.560" (14.2mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.018" (0.45mm) | -55°C ~ 125°C |
|

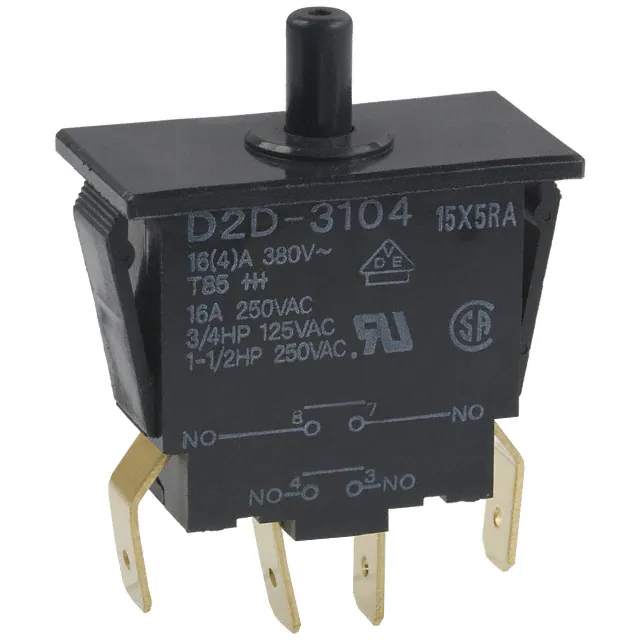

D2D-3104SWITCH SNAP ACTION DPST 16A 250V |
359 |
|
Datasheet |
D2D | Bulk | Active | DPST-NO (DM) | Off-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | - | 600gf | - | 0.343" (8.7mm) | - | - | 0.090" (2.3mm) | -25°C ~ 85°C |
|

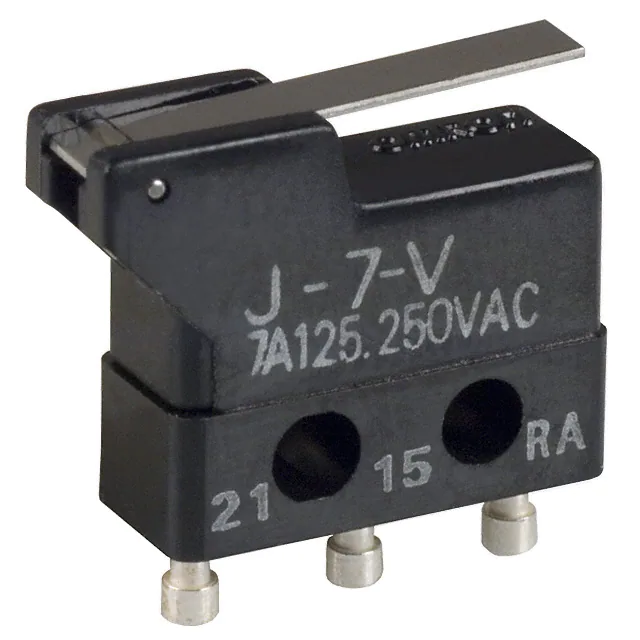

J-7-VSWITCH SNAP ACTION SPDT 7A 250V |
1,099 |
|
Datasheet |
J | Tray | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Turret | IP40 | - | 50gf | 9.177gf | 0.328" (8.3mm) | 0.067" (1.7mm) | 0.020" (0.5mm) | 0.014" (0.35mm) | -10°C ~ 80°C |
|
Z-15GW22-BSWITCH SNAP ACTION SPDT 15A 125V |
2,406 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 160gf | 42gf | 1.188" (30.2mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|
111SM1-H58SWITCH SNAP ACTION SPDT 5A 250V |
212 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 198gf | 57gf | 0.350" (8.9mm) | 0.218" (5.5mm) | 0.030" (0.76mm) | 0.030" (0.76mm) | -55°C ~ 125°C |
|
Z-15G-BSWITCH SNAP ACTION SPDT 15A 125V |
185 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP00 | - | 250 ~ 350gf | 114gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -25°C ~ 80°C |
|
BZ-2RW824-A2SWITCH SNAP ACTION SPDT 15A 125V |
292 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 71gf | 14gf | 0.750" (19.1mm) | - | 0.050" (1.3mm) | 0.219" (5.6mm) | -55°C ~ 121°C |
|
311SM703-TSWITCH SNAP ACTION SPDT 4A 250V |
131 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 4A (AC), 5A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 6.118gf | 1.020gf | 0.280" (7.1mm) | 0.310" (7.9mm) | 0.070" (1.8mm) | 0.057" (1.45mm) | -55°C ~ 125°C |
|

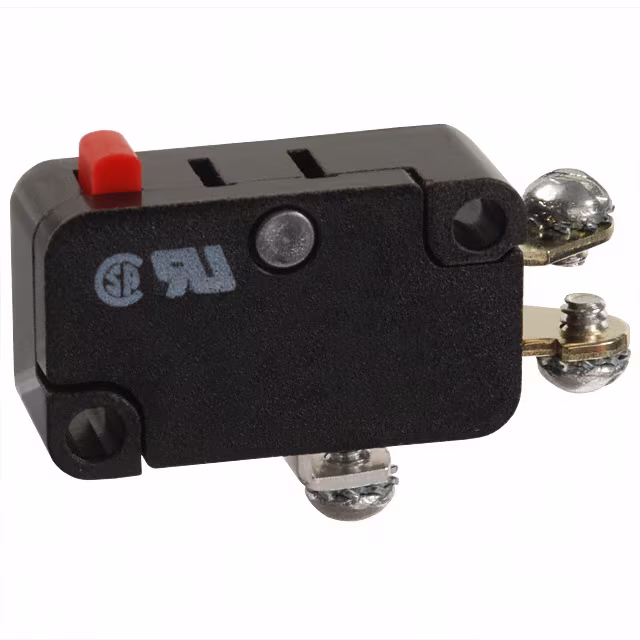

V3-1SWITCH SNAP ACTION SPDT 15A 125V |
403 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 170 ~ 397gf | 113gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|

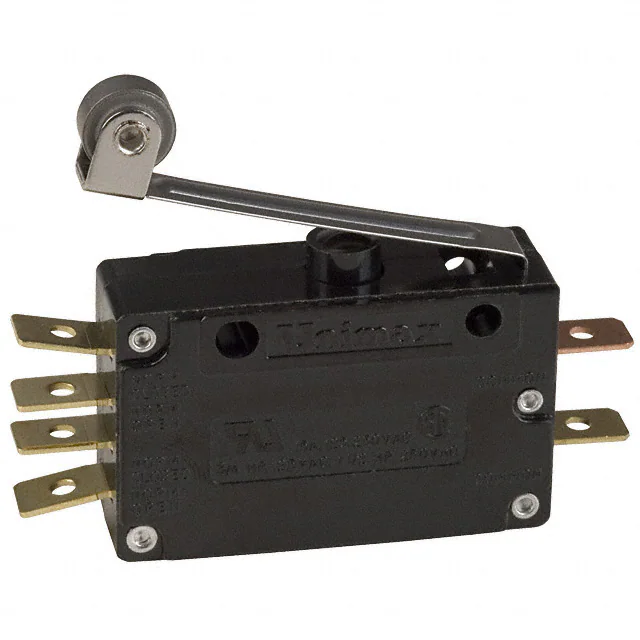

ADPDC2W04ACSWITCH SNAP ACTION DPDT 15A 125V |
189 |
|
Datasheet |
A | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 510gf | 57gf | 0.718" (18.24mm) | 0.281" (7.14mm) | - | 0.062" (1.6mm) | -55°C ~ 85°C |
|
BA-R358-A2SWITCH SNAP ACTION SPDT 15A 125V |
169 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 170 ~ 283gf | 113gf | 0.710" (18.0mm) | - | 0.003" (0.075mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
83161075SWITCH SNAP ACTION SPDT 1-4" QC |
5,562 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

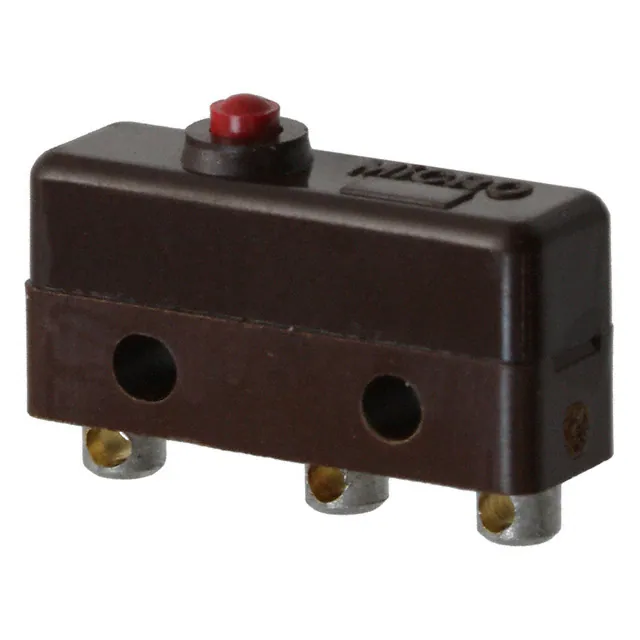

21SM284SWITCH SNAP ACTION SPDT 5A 115V |
320 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
BA-2R-A2SWITCH SNAP ACTION SPDT 20A 125V |
137 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 0.640" (16.3mm) | 0.050" (1.27mm) | 0.002" (0.05mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
D2VW-5L1B-1MSSWITCH SNAP ACTION SPDT 5A 125V |
2,356 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 5.099gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.080" (2.0mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
|
11TL402SWITCH SNAP ACTION SPDT 15A 125V |
6,360 |
|
Datasheet |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|
|
BZ-2R-A2SWITCH SNAP ACTION SPDT 15A 125V |
174 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
