Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

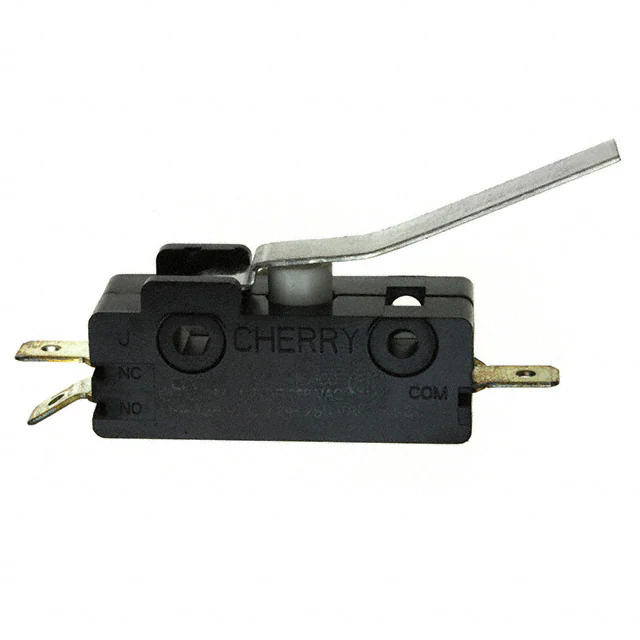

E14-50HSWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 170gf | - | 0.437" (11.1mm) | 0.524" (13.3mm) | 0.080" (2.0mm) | 0.219" (5.6mm) | -40°C ~ 105°C |
|
D2SW1010CMicroswitch, Subminiature, SPDT |
260 |
|
Datasheet |
* | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

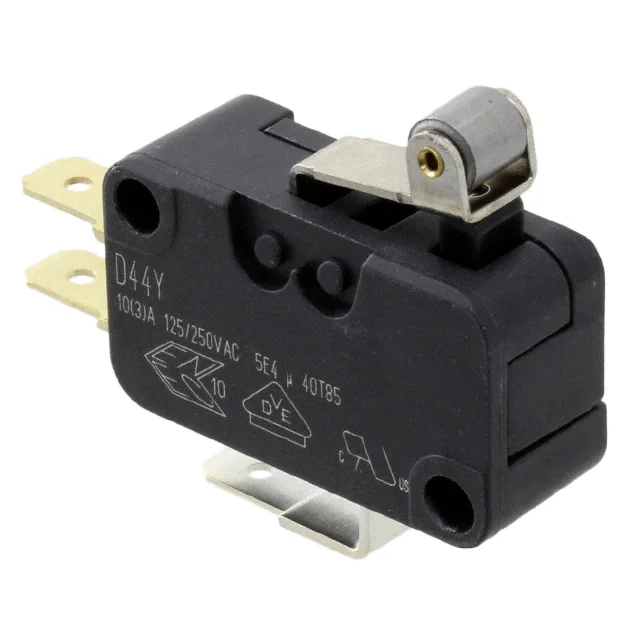

D443-R1RA-G2SWITCH SNAP ACTION SPDT 10A 250V |
739 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 337gf | 87gf | 0.806" (20.5mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
MZ-7013-RUSWITCH SNAP ACT SPDT 0.75A 240V |
360 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Simulated Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 32gf | - | 0.043" (1.1mm) | 0.031" (0.8mm) | 0.150" (3.8mm) | -25°C ~ 80°C |
|
|
GPSCNH01SWITCH SNAP SPDT 15A W/BUSHING |
196 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 15A | 125 V | - | Overtravel Plunger | Panel Mount | Solder Lug | - | - | - | - | - | - | - | - | - |
|
MZ-7813-RUSWITCH SNAP ACT SPDT 0.75A 240V |
360 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 73gf | 37gf | - | 0.035" (0.9mm) | 0.028" (0.7mm) | 0.106" (2.7mm) | -25°C ~ 80°C |
|
MZ-7913-RUSWITCH SNAP ACT SPDT 0.75A 240V |
360 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 68gf | 34gf | - | 0.047" (1.2mm) | 0.031" (0.8mm) | 0.134" (3.4mm) | -25°C ~ 80°C |
|
V-10G-1B5-KSWITCH SNAP ACTION SPDT 10A 250V |
130 |
|
Datasheet |
V | Tray | Obsolete | SPDT | On-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|

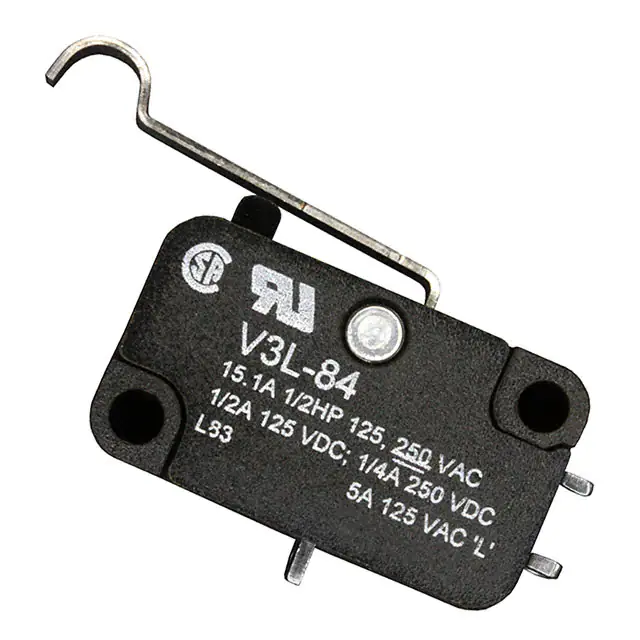

V3L-84SWITCH SNAP ACTION SPDT 15A 125V |
282 |
|
Datasheet |
V3L | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 227gf | 28gf | 0.730" (18.5mm) | 0.125" (3.2mm) | 0.032" (0.81mm) | 0.080" (2.03mm) | - |
|
TFS10SP0040CSWITCH SNAP ACTION SPDT 10A 125V |
496 |
|
Datasheet |
TFS | Box | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
|
E65-00ASWITCH SNAP ACTION SPDT 16A 125V |
2,707 |
|
- |
E6 | Bulk | Obsolete | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 708gf | - | 0.720" ~ 0.820" (18.29mm ~ 20.83mm) | 0.125" (3.18mm) | 0.045" (1.14mm) | 0.375" (9.53mm) | -40°C ~ 85°C |
|
|
G13-50HSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 65gf | - | 0.280" (7.1mm) | 0.344" (8.7mm) | 0.140" (3.55mm) | 0.187" (4.75mm) | -40°C ~ 105°C |
|
ASKHF3J04AWSWITCH SNAP ACT SPST-NC 25A 125V |
116 |
|
Datasheet |
A | Bulk | Active | SPST-NC | On-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Overtravel Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|

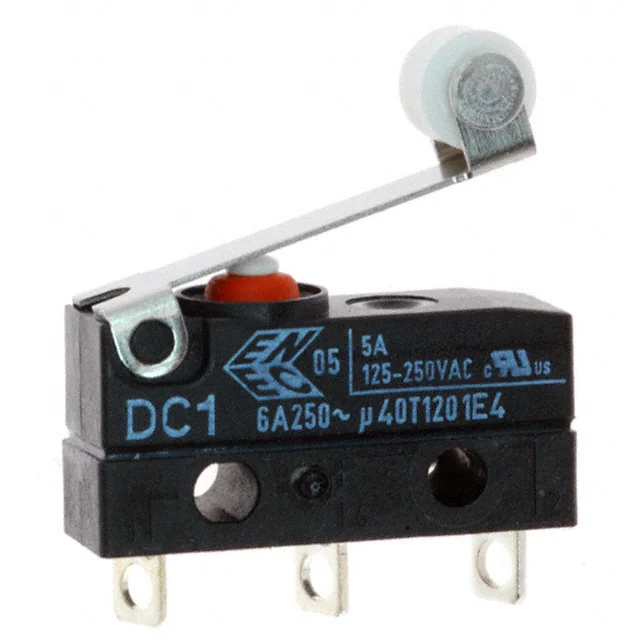

DC1C-A1RBSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
DC | Bulk | Active | SPDT | On-Mom | 5A (AC), 1A (DC) | 125 V | 48 V | Lever, Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 92gf | - | 0.622" (15.8mm) | 0.178" (4.5mm) | 0.020" (0.5mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|
G13-00MSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.812" (20.6mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.219" (5.6mm) | -40°C ~ 105°C |
|
BZ-2R291-P4SWITCH SNAP ACTION SPDT 15A 125V |
905 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
MVS-3603SWITCH SNAP ACT SPDT 1.5A 230V |
700 |
|
Datasheet |
MVS-36 | Bulk | Active | SPDT | On-Mom | 1.5 (AC), 500mA (DC) | 230 V | 60 V | Lever, Straight | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 50gf | 8.000gf | - | 0.114" (2.9mm) | 0.045" (1.1mm) | 0.235" (6.0mm) | -40°C ~ 80°C |
|
|
ZW10E99AW3-ASWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
ZW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 150gf | 30gf | 0.330" (8.4mm) | 0.047" (1.2mm) | 0.008" (0.2mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|

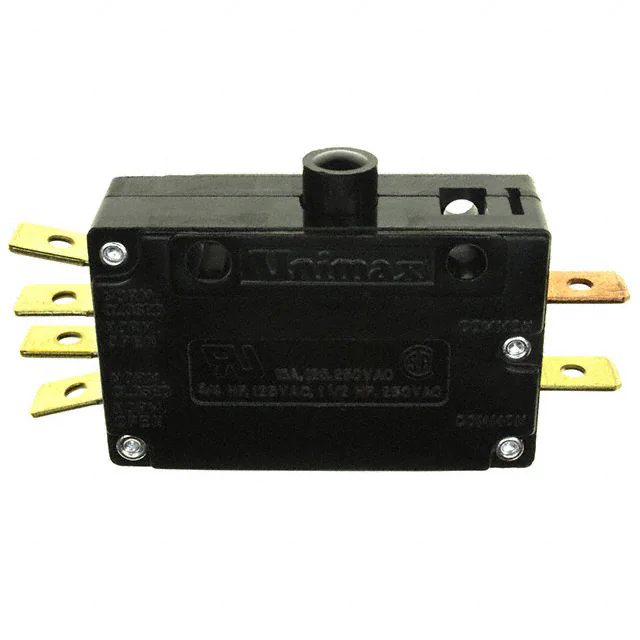

ADPDC2P04ACSWITCH SNAP ACTION DPDT 15A 125V |
215 |
|
Datasheet |
A | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | 170gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
MVS-3605SWITCH SNAP ACT SPDT 1.5A 230V |
700 |
|
Datasheet |
MVS-36 | Bulk | Active | SPDT | On-Mom | 1.5 (AC), 500mA (DC) | 230 V | 60 V | Lever, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 74gf | 56gf | - | 0.080" (2.0mm) | 0.035" (0.9mm) | 0.161" (4.1mm) | -40°C ~ 80°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
