Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V-151-1C26SWITCH SNAP ACTION SPDT 15A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 50gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
V7-4A33E9-000-2SWITCH PIN PLUNGER SPST 5A QC |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
83161344SWITCH SNAP ACTION SPDT 16A 250V |
341 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
D44EV1TDSWITCH SNAP ACT SPST-NC 10A 125V |
1,509 |
|
- |
D4 | Bulk | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Explosion Proof | - | - | - | - | - | - | -40°C ~ 125°C |
|
D453-B8AASWITCH SNAP ACTION 15A SPDT |
2,800 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D419-R1AA-G2SWITCH SNAP ACT SPDT 0.1A 250V |
0 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 100mA (AC), 500mA (DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 46gf | 13gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
V-21-3C6SWITCH SNAP ACT SPST-NO 21A 250V |
107 |
|
Datasheet |
V | Bulk | Obsolete | SPST-NO | Off-Mom | 21A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 400gf | 80gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
|
D439-R1LL-G2SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 10gf | 2.039gf | 0.600" (15.2mm) | 0.300" (7.6mm) | 0.065" (1.7mm) | 0.185" (4.7mm) | -40°C ~ 85°C |
|
|
D439-V1ML-G2SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Explosion Proof | 6.118gf | 1.530gf | 0.600" (15.2mm) | 0.500" (12.7mm) | 0.098" (2.5mm) | 0.312" (7.9mm) | -40°C ~ 85°C |
|
|
DC2C-A1RBSWITCH SNAP ACTION SPDT 10A 125V |
808 |
|
- |
DC | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 163gf | - | 0.622" (15.8mm) | 0.197" (5.0mm) | 0.031" (0.8mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|
V15T16-CZ300A02SWITCH SNAP ACTION SPDT 16A 250V |
25 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 180gf | 30gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|

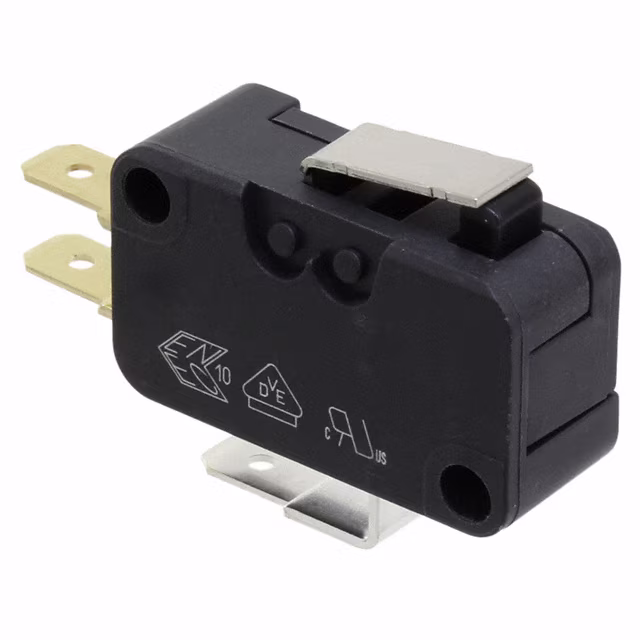

D413-R1LA-G2SWITCH SNAP ACT SPDT 0.1A 250V |
0 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 100mA (AC), 500mA (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 194gf | 46gf | 0.600" (15.2mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|
D413-R1LD-G2SWITCH SNAP ACT SPDT 0.1A 250V |
0 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 100mA (AC), 500mA (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 88gf | 20gf | 0.600" (15.2mm) | 0.125" (3.2mm) | 0.031" (0.8mm) | 0.090" (2.3mm) | -40°C ~ 85°C |
|
|
83161312SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -60°C ~ 150°C |
|

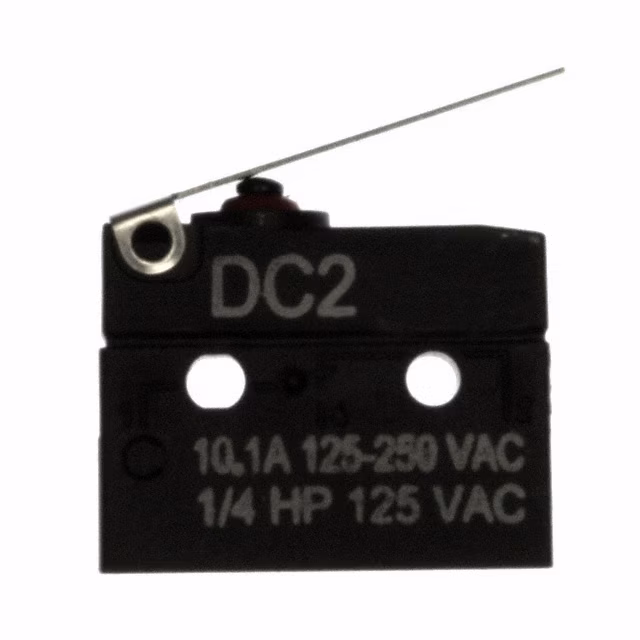

DC2C-BWADSWITCH SNAP ACTION SPDT 10A 125V |
5,614 |
|
Datasheet |
DC | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | - | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 120°C |
|
|
E3102CAAAASWITCH DETECTOR SPST-NC 5A 250V |
0 |
|
Datasheet |
3100 | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
V7-1Z13E9-015-1SWITCH STRGHT LVR SPDT 25A QC |
4,100 |
|
Datasheet |
V7 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D3V-11G5-1C25-KSWITCH SNAP ACTION SPDT 11A 250V |
661 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
D443-R1RD-G2SWITCH SNAP ACTION SPDT 10A 250V |
647 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 147gf | 41gf | 0.806" (20.5mm) | 0.125" (3.2mm) | 0.031" (0.8mm) | 0.087" (2.2mm) | -40°C ~ 85°C |
|
|
D449-R1RD-G2SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 41gf | 8.158gf | 0.806" (20.5mm) | 0.125" (3.2mm) | 0.031" (0.8mm) | 0.087" (2.2mm) | -40°C ~ 85°C |
