Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASKHC2J04AYSWITCH SNAP ACT SPST-NO 15A 125V |
218 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Overtravel Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
ADPDC2P04AYSWITCH SNAP ACT DPST-NO 15A 125V |
105 |
|
Datasheet |
A | Bulk | Active | DPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | 170gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
22SM1-TSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
ZW10E15CD1SWITCH SNAP ACT SPDT 0.1A 125V |
299 |
|
Datasheet |
ZW | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP00 | - | 54gf | 11gf | 0.345" (8.8mm) | 0.188" (4.8mm) | 0.028" (0.7mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
MJ2-1701 PHSWITCH SNAP ACTION SPDT 15A 250V |
4,000 |
|
Datasheet |
MJ2 | Retail Package | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | - | 70gf | 14gf | - | 0.394" (10.0mm) | 0.050" (1.27mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|
MJ2-1506 PHSWITCH SNAP ACTION SPDT 15A 250V |
4,000 |
|
Datasheet |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Screw Terminal | IP40 | - | 140gf | 20gf | - | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.185" (4.7mm) | -25°C ~ 80°C |
|
V15W11-WC050A03-W2SWITCH SNAP ACT SPST-NC 5A 125V |
0 |
|
Datasheet |
V15W | Bulk | Obsolete | SPST-NC | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 15gf | 2.000gf | 0.602" (15.3mm) | 0.252" (6.4mm) | 0.094" (2.4mm) | 0.102" (2.6mm) | -40°C ~ 85°C |
|
MJ2-1708 PHSWITCH SNAP ACTION SPDT 15A 250V |
4,000 |
|
Datasheet |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | - | 180gf | 40gf | - | 0.236" (6.0mm) | 0.060" (1.5mm) | 0.055" (1.4mm) | -25°C ~ 80°C |
|
MJ3-512112SWITCH SNAP ACTION SPDT 5A 250V |
700 |
|
Datasheet |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA | 250 V | 250 V | Lever, Simulated Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 160gf | 135gf | - | 0.138" (3.5mm) | 0.016" (0.4mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|

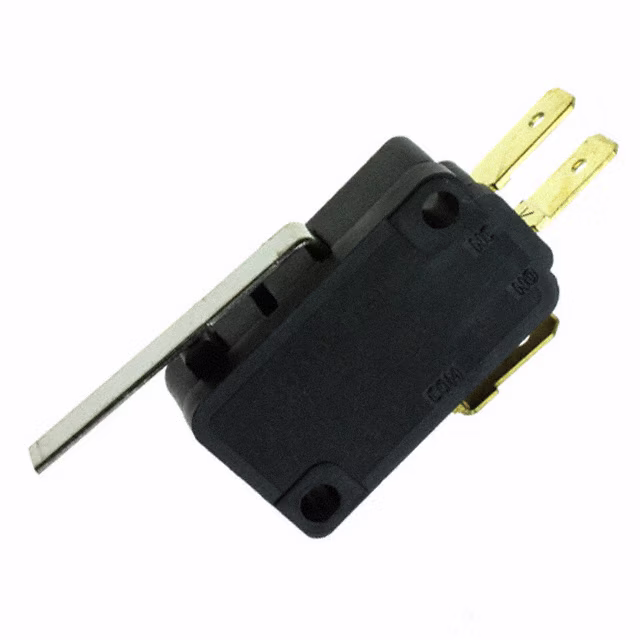

TFCDH8ST1540CSWITCH SNAP ACTION SPDT 5A 277V |
287 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 5A (AC) | 277 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 12gf | 4.000gf | 0.600" (15.2mm) | 0.110" (2.8mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
TMCGD6SA1540CSWITCH SNAP ACTION SPDT 10A 125V |
531 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 10gf | 0.812" (20.6mm) | 0.161" (4.1mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -55°C ~ 150°C |
|
MJ2-1723 PHSWITCH SNAP ACTION SPDT 15A 250V |
4,000 |
|
Datasheet |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 100gf | 21gf | - | 0.280" (7.1mm) | 0.062" (1.6mm) | 0.157" (4.0mm) | -25°C ~ 80°C |
|
MJ3-512121SWITCH SNAP ACTION SPDT 5A 250V |
700 |
|
Datasheet |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA | 250 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 76gf | 58gf | - | 0.303" (7.7mm) | 0.035" (0.9mm) | 0.350" (8.9mm) | -25°C ~ 80°C |
|
BZ-2RW80198TSWITCH SNAP ACTION SPDT 15A 125V |
577 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Leaf | Chassis Mount | Screw Terminal | - | - | 85gf | 21gf | 1.000" (25.4mm) | - | 0.040" (1.0mm) | 0.187" (4.75mm) | -55°C ~ 85°C |
|
|
E19-00HSWITCH SNAP ACTION DPDT 15A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 205gf | - | 0.312" (7.9mm) | 0.275" (7.0mm) | 0.093" (2.36mm) | 0.187" (4.75mm) | -40°C ~ 105°C |
|
MJ2-1305 PH-20SWITCH SNAP ACTION SPDT 20A 250V |
4,000 |
|
Datasheet |
MJ2 | Retail Package | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 250gf | 114gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.063" (1.6mm) | -25°C ~ 80°C |
|
|
V7-1X1AD8-304SWITCH SNAP ACTION SPDT 6A 125V |
176 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 34gf | 2.000gf | 0.806" (20.5mm) | 0.219" (5.6mm) | 0.050" (1.3mm) | 0.115" (2.9mm) | -40°C ~ 177°C |
|
GPTCLS11SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 71gf | 14gf | 0.715" (18.2mm) | 0.394" (10.0mm) | 0.050" (1.3mm) | 0.219" (5.6mm) | 0°C ~ 55°C |
|
MJ3-511134SWITCH SNAP ACTION SPDT 5A 250V |
700 |
|
Datasheet |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA | 250 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | One Way Action Roller | 166gf | 128gf | - | 0.138" (3.5mm) | 0.016" (0.4mm) | 0.178" (4.5mm) | -25°C ~ 80°C |
|
|
V15W-DZ200A02-W2SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V15W | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
