Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZX10C30J01SWITCH SNAP ACTION SPDT 0.1A 48V |
540 |
|
Datasheet |
ZX | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 48 V | Lever, Straight | Through Hole | PC Pin | - | - | 15gf | 2.000gf | 0.350" (8.9mm) | 0.400" (10.1mm) | 0.118" (3.0mm) | 0.035" (0.9mm) | -40°C ~ 120°C |
|
V-10G-1C25-KSWITCH SNAP ACTION SPDT 10A 250V |
969 |
|
Datasheet |
V | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
D3V-11G1-1C25-KSWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
|
D3V-11G2M-1C25-KSWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
D3V | Tray | Obsolete | SPDT | On-Mom | 11A (AC), 6A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
D3V-165M-1C25SWITCH SNAP ACTION SPDT 16A 250V |
1,000 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
D3V-114-1C25SWITCH SNAP ACTION SPDT 11A 250V |
179 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 600mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
ZMSH03130P00PSCSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
ZMS | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | - | 130gf | 13gf | 0.415" (10.55mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
MVS-3203SWITCH SNAP ACTION SPDT 6A 250V |
950 |
|
Datasheet |
MVS | Retail Package | Active | SPDT | On-Mom | 6A (AC), 500mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | Positive Opening | 140gf | 20gf | - | 0.150" (3.8mm) | 0.020" (0.5mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|
V7-6B19E9-201SWITCH SNAP ACTION SPDT 11A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 459gf | 88gf | 0.806" (20.5mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|
V15T22-CZ100A02SWITCH SNAP ACTION SPDT 22A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 22A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
E13-01ESWITCH SNAP ACT SPST-NO 15A 125V |
0 |
|
Datasheet |
E | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 2A (DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.285" (7.24mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.100" (2.54mm) | -40°C ~ 105°C |
|

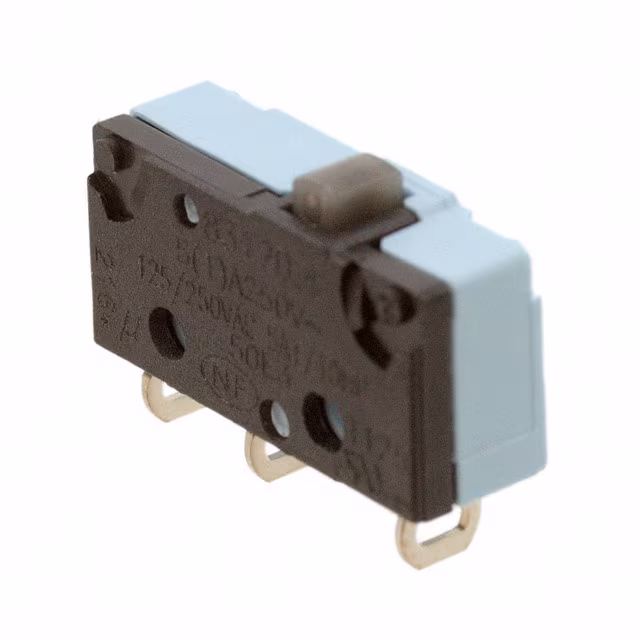

831704C2.0SWITCH SNAP ACTION SPDT 5A 250V |
1,275 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 61gf | 10gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
D2S-5L13-FSWITCH SNAP ACTION SPDT 5A 125V |
464 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | Sealed - Flux Protection | 18gf | 2.039gf | 0.449" (11.4mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|

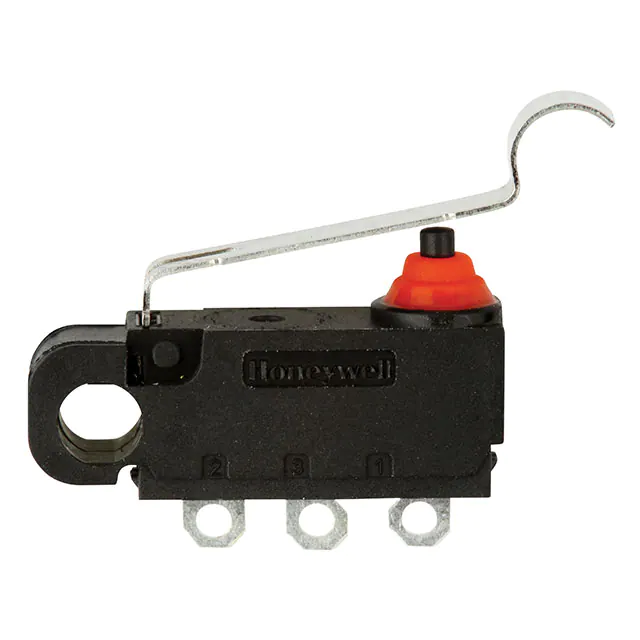

HD20S20C04SWITCH SNAP ACT SPDT 0.003A 12V |
229 |
|
Datasheet |
HD | Box | Active | SPDT | On-Mom | 3mA (DC) | - | 12 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP00 | - | 200gf | 25gf | 0.268" (6.8mm) | 0.138" (3.5mm) | 0.025" (0.6mm) | 0.070" (1.8mm) | -40°C ~ 125°C |
|
|
D3V-6G3K-1C24-KSWITCH SNAP ACTION SPDT 6A 250V |
120 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 20gf | - | 0.600" (15.2mm) | 0.591" (15.0mm) | 0.118" (3.0mm) | 0.158" (4.0mm) | -25°C ~ 105°C |
|
|
V15H22-CZ100A03SWITCH SNAP ACTION SPDT 22A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 22A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -25°C ~ 150°C |
|
|
D3V-16G3-1C25-KSWITCH SNAP ACTION SPDT 16A 250V |
166 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 70gf | 6.118gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.080" (2.0mm) | 0.079" (2.0mm) | -25°C ~ 105°C |
|
MVS-3204SWITCH SNAP ACTION SPDT 6A 250V |
950 |
|
Datasheet |
MVS | Retail Package | Active | SPDT | On-Mom | 6A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | Positive Opening | 220gf | 50gf | - | 0.051" (1.3mm) | 0.006" (0.15mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|

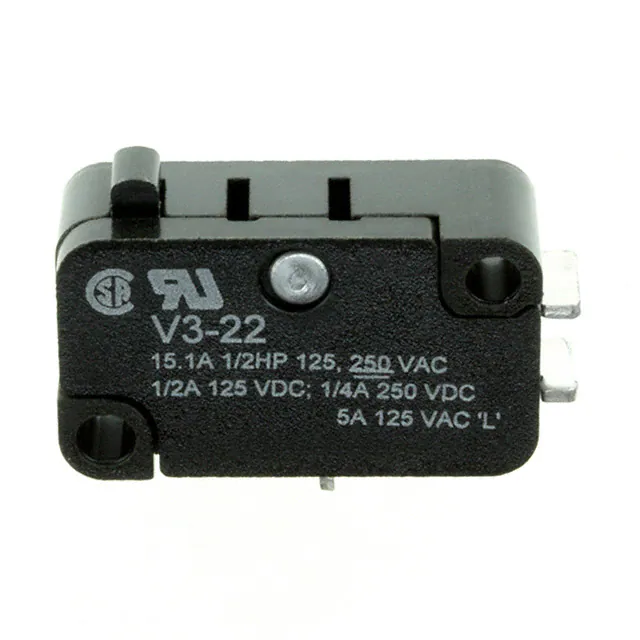

V3-22SWITCH SNAP ACTION SPDT 15A 125V |
556 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 170 ~ 397gf | 113gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | - |
|
|
YZ-R296-A2SWITCH SNAP ACT SPST-NO 15A 125V |
0 |
|
Datasheet |
YZ | Bulk | Obsolete | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 198 ~ 255gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.0005" (0.013mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
