Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MJ2-1328SWITCH SNAP ACTION SPDT 15A 250V |
4,000 |
|
Datasheet |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 250 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP40 | PTFE Roller | 450gf | 114gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.141" (3.58mm) | -25°C ~ 80°C |
|
BZ-2RW80225-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 127gf | 21gf | 0.750" (19.1mm) | - | 0.030" (0.76mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|
|
BM-1R2450SWITCH SNAP ACTION SPDT 22A 125V |
0 |
|
Datasheet |
BM | Bulk | Obsolete | SPDT | On-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 312 ~ 624gf | 255gf | 0.625" (15.9mm) | 0.030" (0.8mm) | 0.0008" (0.020mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|

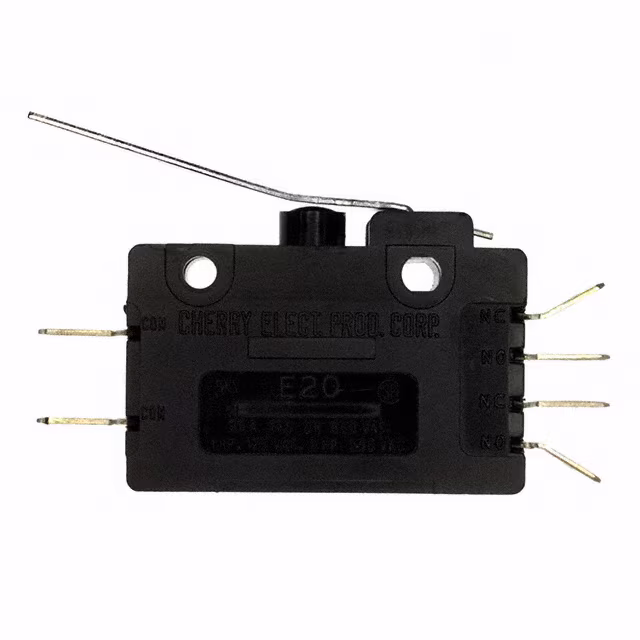

E20-00HSWITCH SNAP ACTION DPDT 20A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 20A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.468" (11.9mm) | 0.330" (8.4mm) | 0.050" (1.3mm) | 0.156" (3.96mm) | -40°C ~ 105°C |
|
E78-40ASWITCH SNAP ACT DPDT 0.1A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.300" (7.6mm) | 0.125" (3.2mm) | 0.075" (1.9mm) | 0.175" (4.5mm) | -40°C ~ 85°C |
|
YA-2RB-D504SWITCH SNAP ACT SPST-NO 20A 125V |
0 |
|
Datasheet |
YA | Bulk | Obsolete | SPST-NO | Off-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 397 ~ 624gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
BZ-2RT04SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 170gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
KH-9015-HRSSWITCH SNAP ACTION SPDT 15A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 15A | 125 V | 14 V | Lever, Roller | Chassis Mount | Screw Terminal | IP50 - Dust Protected | - | 160gf | 28gf | 1.188" (30.2mm) | 0.197" (5.0mm) | - | 0.079" (2.0mm) | -25°C ~ 80°C |
|
|
YA-1R2416-A42SWITCH SNAP ACT SPST-NO 20A 125V |
0 |
|
Datasheet |
YA | Bulk | Obsolete | SPST-NO | Off-Mom | 20A (AC), 300mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 368 ~ 538gf | 283gf | 0.640" (16.3mm) | - | 0.006" (0.15mm) | 0.010" (0.25mm) | -55°C ~ 125°C |
|

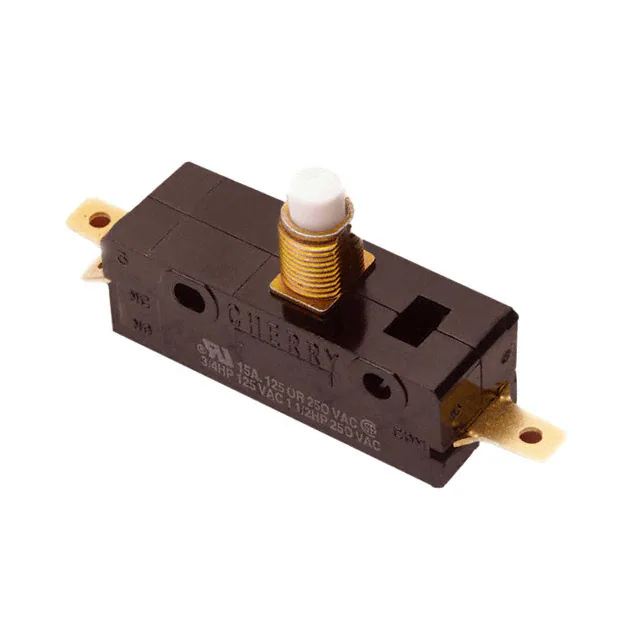

E20-00MSWITCH SNAP ACTION DPDT 20A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 20A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 1280gf | - | 0.776" (19.7mm) | 0.100" (2.5mm) | 0.015" (0.38mm) | 0.187" (4.75mm) | -40°C ~ 105°C |
|
MJ2-1734 PH-20SWITCH SNAP ACTION SPDT 20A 250V |
4,000 |
|
Datasheet |
MJ2 | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | Oil Resist Boot Seal | 200gf | 42gf | - | 0.138" (3.5mm) | 0.020" (0.5mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|
|
KH-9015-HRLSWITCH SNAP ACTION SPDT 15A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 15A | 125 V | 14 V | Lever, Roller | Chassis Mount | Screw Terminal | IP50 - Dust Protected | - | 100gf | 14gf | 1.188" (30.2mm) | 0.315" (8.0mm) | - | 0.141" (3.6mm) | -25°C ~ 80°C |
|
|
E20-00KSWITCH SNAP ACTION DPDT 20A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 20A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.860" (21.84mm) | 0.347" (8.8mm) | 0.045" (1.1mm) | 0.156" (3.96mm) | -40°C ~ 105°C |
|
|
41SM25-H2SWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 113gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
BZ-2R24-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 121°C |
|
|
V7-2A27D8-000-5SWITCH SNAP ACT SPST-NO 5A 125V |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
BA-1R357SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 15A (AC), 400mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 113gf | - | 0.680" (17.3mm) | 0.040" (1.0mm) | 0.001" (0.025mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
|
311SM778-TSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 12gf | 2.039gfm | 0.455" (11.6mm) | 0.120" (3.0mm) | 0.015" (0.38mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
|
BE-R205SWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
BE | Bulk | Obsolete | SPDT | On-Mom | 25A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 567gf | 283gf | 0.640" (16.3mm) | 0.050" (1.27mm) | 0.001" (0.025mm) | 0.023" (0.58mm) | -55°C ~ 85°C |
|
|
BZ-2R296SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 255 ~ 368gf | 113gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
