Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D433-R1RA-G2SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 194gf | 40gf | 0.806" (20.5mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
831700C2.FLSWITCH SNAP ACTION SPDT 10A 250V |
168 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | Actuator Mounted Left Side | 51gf | 10gf | 0.512" (13.0mm) | - | 0.018" (0.45mm) | 0.060" (1.5mm) | -20°C ~ 130°C |
|
HD30S01C11AMSWITCH SNAP ACT SPST-NO 3A 125V |
211 |
|
- |
HD | Box | Active | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 25gf | 0.268" (6.8mm) | 0.138" (3.5mm) | 0.025" (0.6mm) | 0.070" (1.8mm) | -20°C ~ 85°C |
|
83200003SWITCH SNAP ACTION SPDT 4A 250V |
789 |
|
Datasheet |
83200 | Bulk | Active | SPDT | On-Mom | 4A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | 153gf | 20gf | 0.413" (10.5mm) | - | 0.006" (0.15mm) | 0.079" (2.0mm) | -40°C ~ 90°C |
|
V-15G6-1B5-KSWITCH SNAP ACTION SPDT 15A 250V |
0 |
|
Datasheet |
V | Tray | Obsolete | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
|
V7-1A13E991-732-1SWITCH LIMIT SPST 5A QC |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
V-10-1C25-KSWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
V | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
|
E3101CAXH01SWITCH DETECTOR SPST-NO 5A 250V |
1,975 |
|
Datasheet |
3100 | Tray | Active | SPST-NO | Off-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
DC3C-A1AASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
DC | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 204gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|

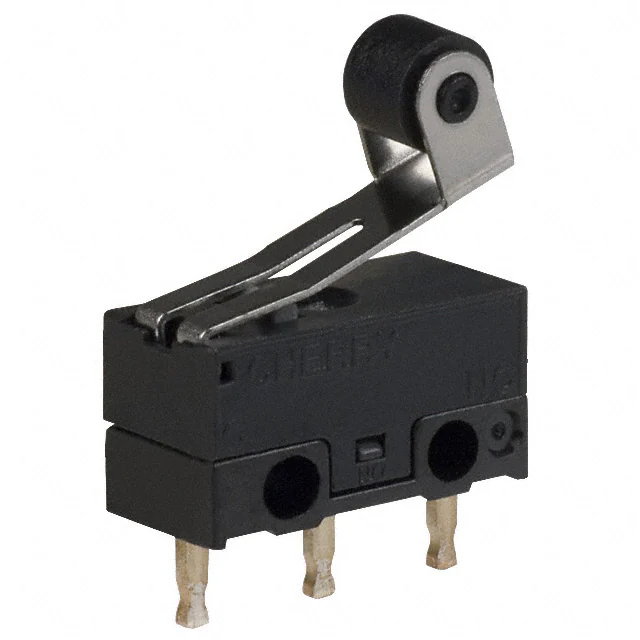

DG13-B1RASWITCH SNAP ACTION SPDT 3A 125V |
18,003 |
|
Datasheet |
DG | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 60gf | - | 0.488" (12.4mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
D2MV-01L22-1C1SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D2MV | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 10gf | 0.510gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|

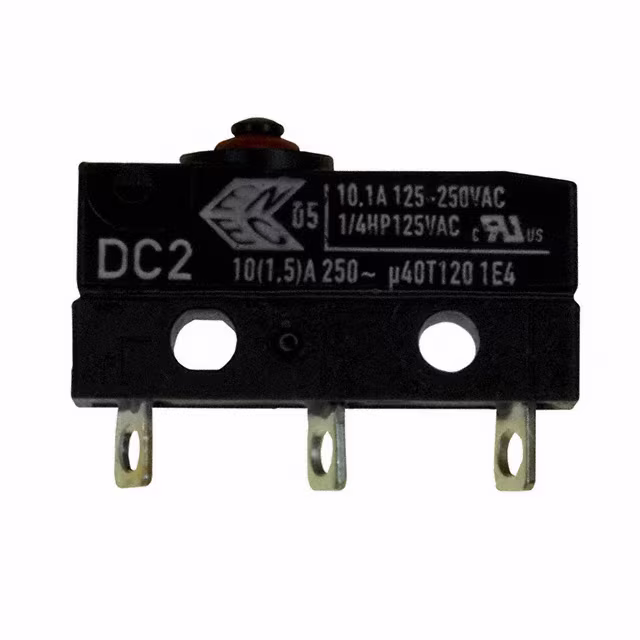

DC2C-A1AASWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
DC | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 340gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
|
V7-6A17D8-057SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 100gf | 15gf | 0.602" (15.3mm) | 0.315" (8.0mm) | 0.065" (1.7mm) | 0.146" (3.7mm) | -40°C ~ 85°C |
|
|
V15H22-CZ300A02-KSWITCH SNAP ACTION SPDT 22A 250V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 22A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 180gf | 30gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 150°C |
|

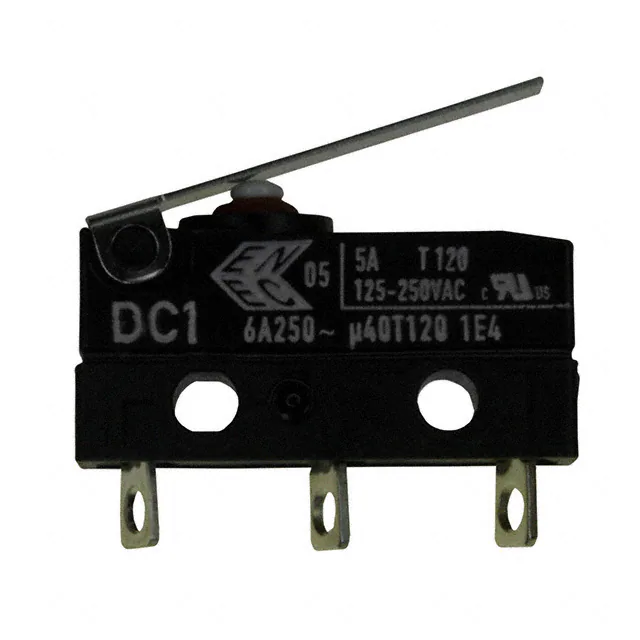

DC1C-A1LBSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
DC | Bulk | Active | SPDT | On-Mom | 5A (AC), 1A (DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 82gf | - | 0.420" (10.7mm) | 0.178" (4.5mm) | 0.020" (0.5mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|

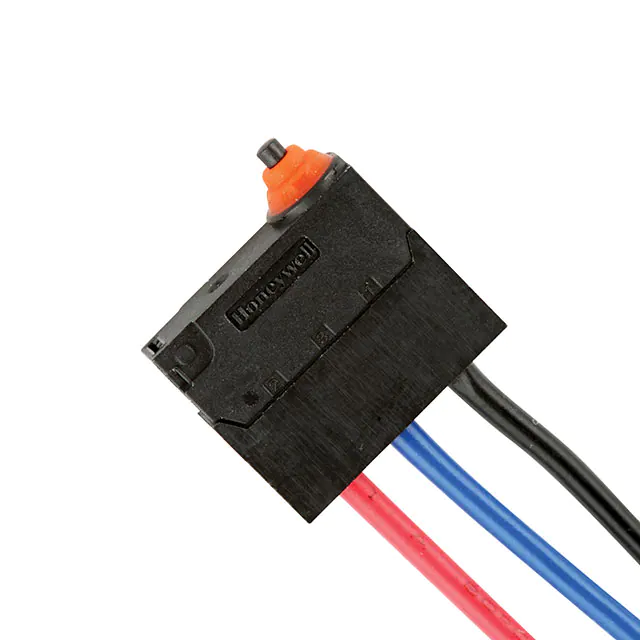

HD20S01A01AMSWITCH SNAP ACT SPDT 0.003A 12V |
235 |
|
Datasheet |
HD | Box | Active | SPDT | On-Mom | 3mA (DC) | - | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 130gf | 13gf | 0.122" (3.1mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.031" (0.79mm) | -20°C ~ 85°C |
|
E13-50HSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 65gf | - | 0.280" (7.1mm) | 0.344" (8.7mm) | 0.140" (3.55mm) | 0.187" (4.75mm) | -40°C ~ 105°C |
|
831618C6.BBSWITCH SNAP ACT SPDT 0.1A 250V |
378 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 41gf | 10gf | 0.600" (15.2mm) | - | 0.028" (0.7mm) | 0.094" (2.4mm) | -20°C ~ 125°C |
|
TF316CFP004AYSWITCH SNAP ACT SPST-NO 16A 125V |
437 |
|
Datasheet |
TF3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 190gf | - | 0.567" (14.4mm) | 0.075" (1.9mm) | 0.047" (1.2mm) | 0.026" (0.7mm) | -40°C ~ 125°C |
|

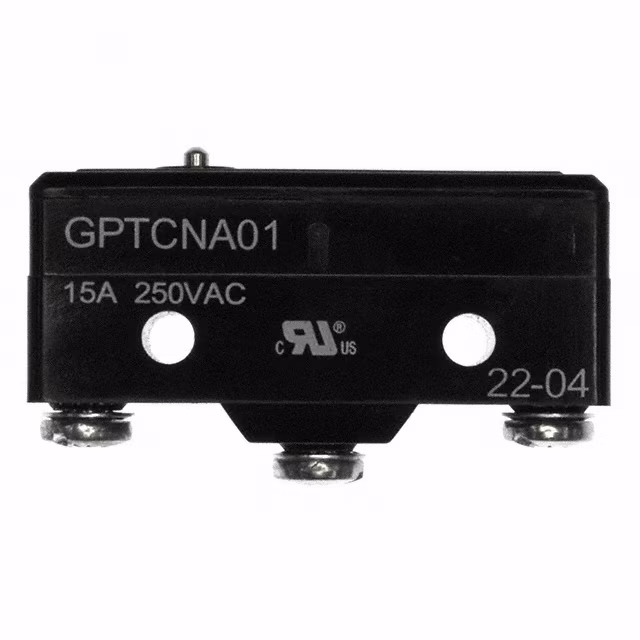

GPTCNA01SWITCH SNAP SPDT 15A SCREW TERM |
169 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 15A | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
