Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83163221SWITCH SNAP ACTION SPDT 16A 250V |
219 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 82gf | 20gf | 0.806" (20.5mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
GPTBNA01SWITCH SNAP SPDT 20A SCREW TERM |
727 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 20A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
V7-6C17D8-439SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 146gf | 24gf | 0.602" (15.3mm) | 0.200" (5.1mm) | 0.045" (1.1mm) | 0.077" (1.96mm) | -40°C ~ 85°C |
|

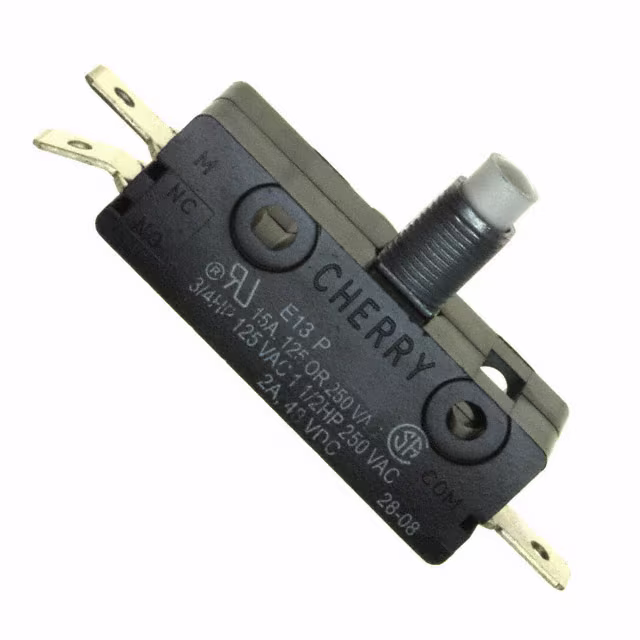

E13-00JSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 48 V | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.670" (17.0mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.109" (2.77mm) | -40°C ~ 105°C |
|
|
GPTBLS01SWITCH SNAP SPDT 20A SCREW TERM |
1,002 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 20A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
V-16G88K-3CR5SWITCH SNAP ACT SPST-NO 16A 250V |
0 |
|
Datasheet |
V | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | - | - | - | - | - | - | -25°C ~ 80°C |
|
|
GPTBNC11SWITCH SNAP SPDT 20A SCREW TERM |
222 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 20A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
E14-00ASWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | - | 0.248" (6.3mm) | 0.100" (2.5mm) | 0.015" (0.38mm) | 0.050" (1.27mm) | -40°C ~ 105°C |
|

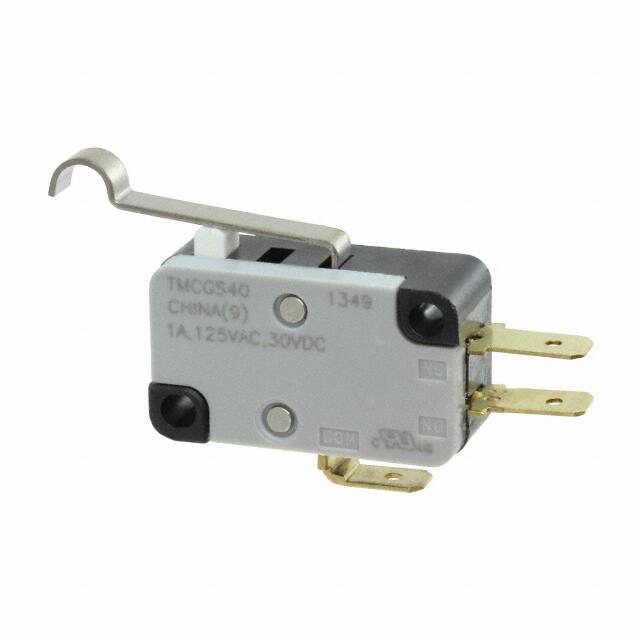

TMCGF5ST1440CSWITCH SNAP ACTION SPDT 1A 125V |
128 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 50gf | 10gf | 0.745" (18.9mm) | 0.140" (3.6mm) | 0.050" (1.3mm) | 0.062" (1.6mm) | -55°C ~ 150°C |
|

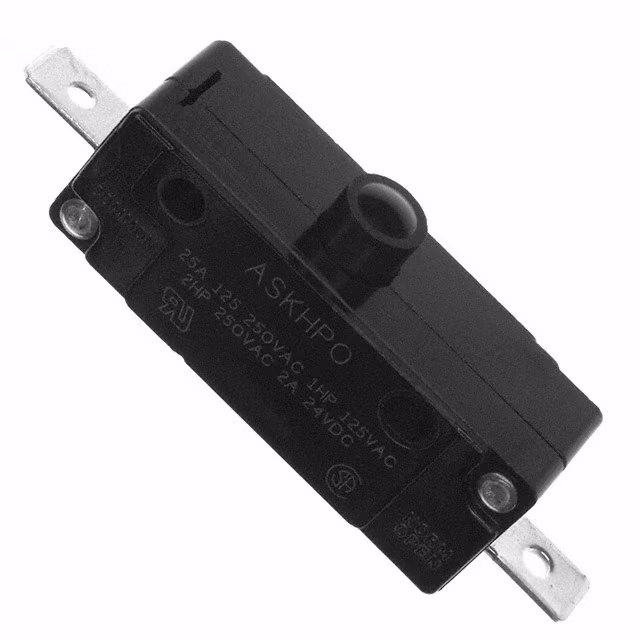

ASKHF3P04AYSWITCH SNAP ACT SPST-NO 25A 125V |
601 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
|
ABS561154SWITCH SNAP ACTION SPDT 0.1A 30V |
194 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 4.079gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
|
D2D 1021RSWITCH SNAP ACTION DPST 16A 250V |
2,140 |
|
Datasheet |
D2D | Box | Active | DPST-NO (DM) | Off-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | - | 600gf | - | 0.343" (8.70mm) | - | - | 0.090" (2.3mm) | -25°C ~ 85°C |
|
|
1520307-5SWITCH SNAP ACTION DPST 22A 125V |
0 |
|
Datasheet |
PT3 | Bulk | Obsolete | DPST-NO/NC | On-Off, Off-On | 22A (AC) | 125 V | - | - | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
E14-00HSWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 285gf | - | 0.468" (11.9mm) | 0.310" (7.9mm) | 0.050" (1.3mm) | 0.105" (2.67mm) | -40°C ~ 105°C |
|
|
KH-9012-PBCSWITCH SNAP ACTION SPDT 15A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect | IP40 | - | 500gf | - | 0.579" (14.7mm) | 0.063" (1.6mm) | - | 0.012" (0.3mm) | -25°C ~ 80°C |
|
|
KH-9012-5HRLCSWITCH SNAP ACTION SPDT 5A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 14 V | Lever, Roller | Chassis Mount | Quick Connect | IP40 | - | 150gf | - | 0.815" (20.7mm) | 0.157" (4.0mm) | - | 0.024" (0.6mm) | -25°C ~ 80°C |
|
|
KH-9012-HRSCSWITCH SNAP ACTION SPDT 15A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect | IP40 | - | 600gf | - | 0.812" (20.6mm) | 0.063" (1.6mm) | - | 0.012" (0.3mm) | -25°C ~ 80°C |
|
|
KH-9012-HRLCSWITCH SNAP ACTION SPDT 15A 125V |
1,980 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect | IP40 | - | 300gf | - | 0.815" (20.7mm) | 0.157" (4.0mm) | - | 0.024" (0.6mm) | -25°C ~ 80°C |
|
|
KH-9012-HLRCSWITCH SNAP ACTION SPDT 15A 125V |
1,980 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect | IP40 | - | 300gf | - | 0.720" (18.3mm) | 0.157" (4.0mm) | - | 0.024" (0.6mm) | -25°C ~ 80°C |
|
|
KH-9012-HLLCSWITCH SNAP ACTION SPDT 15A 125V |
1,980 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect | IP40 | - | 300gf | - | 0.602" (15.3mm) | 0.157" (4.0mm) | - | 0.024" (0.6mm) | -25°C ~ 80°C |
