Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

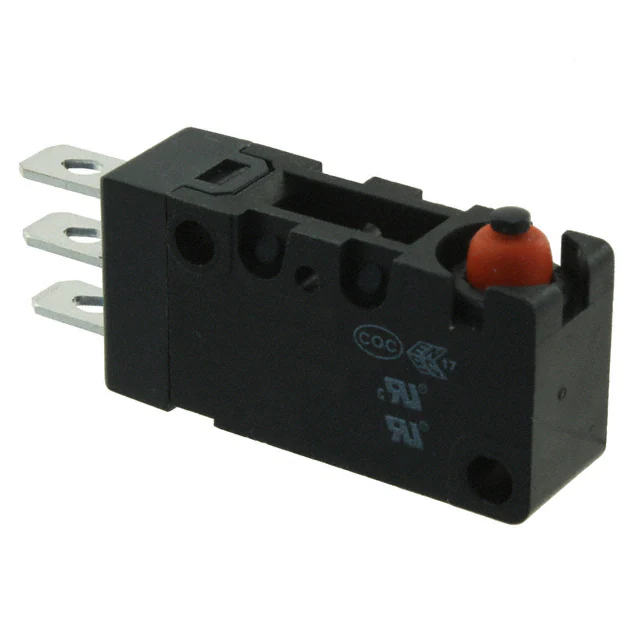

V15W11-EP015-AW1SWITCH SNP ACT SPST-NO 0.1A 125V |
468 |
|
Datasheet |
V15W | Bulk | Obsolete | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 15gf | 3.000gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|

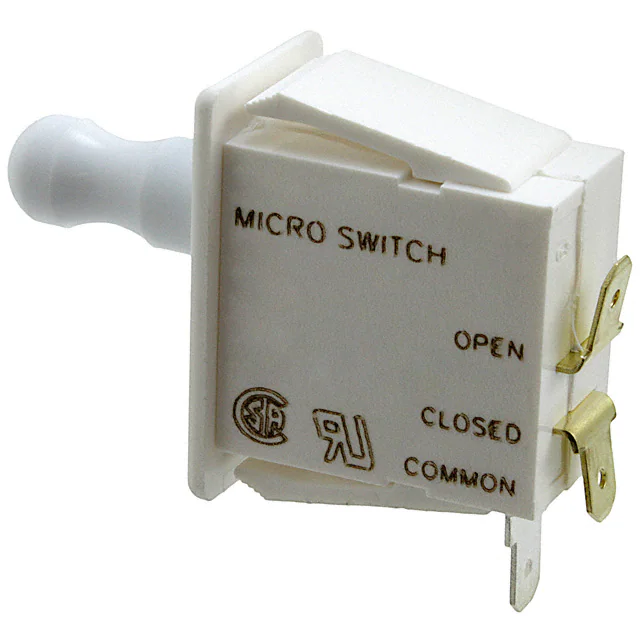

1DM435SWITCH SNAP ACTION SPDT 10A 125V |
229 |
|
Datasheet |
DM | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 425gf | - | 0.755" (19.2mm) | - | - | 0.585" (14.9mm) | -37°C ~ 82°C |
|

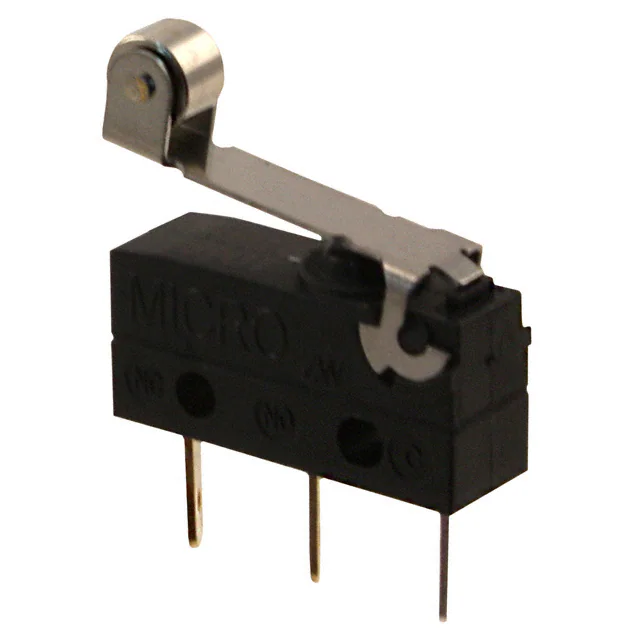

ZW10E70FD1SWITCH SNAP ACT SPDT 0.1A 125V |
145 |
|
Datasheet |
ZW | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP00 | - | 56gf | 11gf | 0.571" (14.5mm) | 0.170" (4.3mm) | 0.025" (0.6mm) | 0.035" (0.9mm) | -40°C ~ 120°C |
|

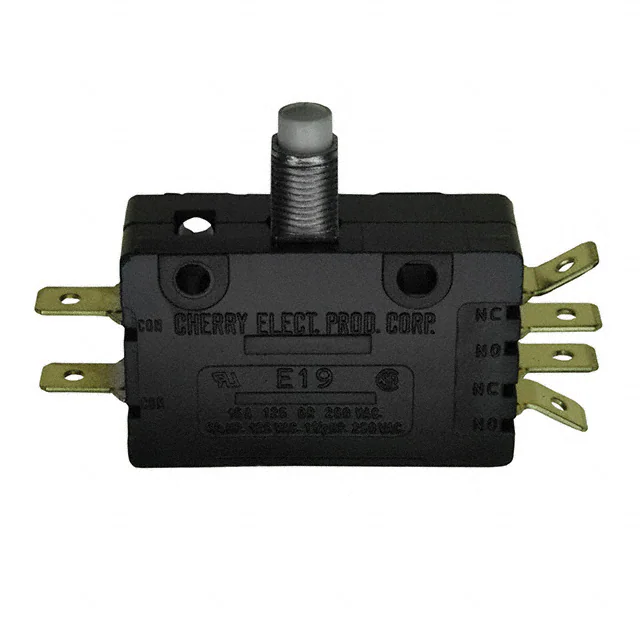

E19-00JSWITCH SNAP ACTION DPDT 15A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | - | 0.670" (17.0mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.079" (2.0mm) | -40°C ~ 105°C |
|
MJ2-1307 PHSWITCH SNAP ACTION SPDT 15A 250V |
4,000 |
|
Datasheet |
MJ2 | Retail Package | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 450gf | 114gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.217" (5.5mm) | -25°C ~ 80°C |
|
BE-2RBSWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
BE | Bulk | Obsolete | SPDT | On-Mom | 25A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | Stainless Steel Plunger | 397 ~ 624gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
341SM2-TSWITCH SNAP ACTION SPDT 11A 250V |
280 |
|
- |
SM | Bulk | Active | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 30gf | 5.099gf | 0.335" (8.5mm) | 0.180" (4.6mm) | 0.027" (0.7mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
|
YZ-2RW84510-A2LARGE BASIC SWITCH |
124 |
|
- |
YZ | Bulk | Obsolete | SPST-NO | Off-Mom | 15A | - | - | Lever, Leaf | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -55°C ~ 85°C |
|
72736G01SWITCH EZGO FORWARD/REV MICRO |
191 |
|
- |
- | Bulk | Active | - | - | - | - | - | Lever, Simulated Roller | Chassis Mount | Quick Connect | - | - | - | - | - | - | - | - | - |
|
MJ3-511132SWITCH SNAP ACTION SPDT 5A 250V |
700 |
|
Datasheet |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA | 250 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP40 | - | 400gf | 300gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.217" (5.5mm) | -25°C ~ 80°C |
|
|
MJ2-1307 PH-20SWITCH SNAP ACTION SPDT 20A 250V |
4,000 |
|
Datasheet |
MJ2 | Retail Package | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 450gf | 114gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.217" (5.5mm) | -25°C ~ 80°C |
|
MJ3-512105SWITCH SNAP ACTION SPDT 5A 250V |
700 |
|
Datasheet |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA | 250 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 600gf | 400gf | - | 0.024" (0.6mm) | 0.002" (0.05mm) | 0.213" (5.4mm) | -25°C ~ 80°C |
|
|
BA-R138-A2SWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BA | Bulk | Obsolete | SPDT | On-Mom | 20A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 312 ~ 482gf | 283gf | 0.640" (16.3mm) | 0.050" (1.27mm) | 0.002" (0.05mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
E78-30ASWITCH SNAP ACT DPDT 0.1A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 100mA (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 757gf | - | 0.610" (15.5mm) | 0.125" (3.2mm) | 0.075" (1.9mm) | 0.100" (2.54mm) | -40°C ~ 85°C |
|
YE-2RV198-A41SWITCH SNAP ACT SPST-NO 25A 125V |
0 |
|
Datasheet |
YE | Bulk | Obsolete | SPST-NO | Off-Mom | 25A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 425 ~ 595gf | 283 ~ 397gf | 0.710" (18.0mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
|
GPTBLS11SWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 20A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 79gf | 14gf | 0.715" (18.2mm) | 0.394" (10.0mm) | 0.050" (1.3mm) | 0.219" (5.6mm) | 0°C ~ 55°C |
|
|
GPTCRM01SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 158gf | 43gf | 1.172" (29.8mm) | 0.106" (2.7mm) | 0.020" (0.5mm) | 0.094" (2.4mm) | 0°C ~ 55°C |
|
GPTCRS01SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 99gf | 23gf | 1.156" (29.4mm) | 0.281" (7.14mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | 0°C ~ 55°C |
|
|
GPTCRS11SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 99gf | 23gf | 1.156" (29.4mm) | 0.281" (7.14mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | 0°C ~ 55°C |
|
|
141SM28-H2SWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 11A (AC), 5A (DC) | 250 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 255gf | 57gf | 0.350" (8.9mm) | 0.150" (3.8mm) | 0.020" (0.5mm) | 0.011" (0.3mm) | -55°C ~ 125°C |
