Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

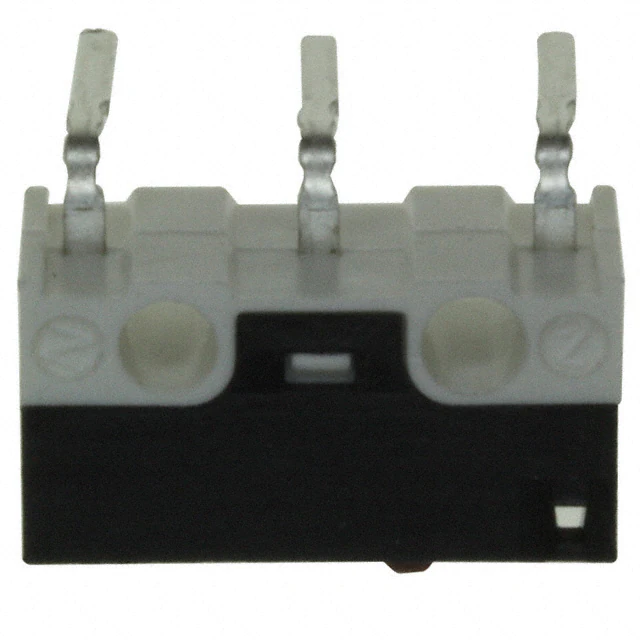

ZMCJF7P0RSWITCH SNAP ACTION SPDT 3A 125V |
206 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 150gf | - | 0.276" (7.0mm) | - | - | - | -30°C ~ 85°C |
|
D3V-11G4-1C25-KSWITCH SNAP ACTION SPDT 11A 250V |
783 |
|
Datasheet |
D3V | Tray | Obsolete | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
D3V-11G2-1C25-KSWITCH SNAP ACTION SPDT 11A 250V |
123 |
|
Datasheet |
D3V | Tray | Obsolete | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
V15T16-EZ200A02-KSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 130gf | 35gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|
|
V7-1C33E9SWITCH SNAP ACT SPST-NC 15A 125V |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NC | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 150gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
V15S05-CZ025SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 5A (AC), 100mA (DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 25gf | - | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
|
|
V7-1C28E9-022SWITCH SNAP ACT SPST-NO 15A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 85gf | 5.000gf | 0.600" (15.2mm) | 0.110" (2.8mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
|
V7-7A17D8-374SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Formed | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 273gf | - | - | - | - | - | -40°C ~ 85°C |
|
V-10G4-3C25-KSWITCH SNAP ACT SPST-NO 10A 250V |
120 |
|
Datasheet |
V | Bulk | Obsolete | SPST-NO | Off-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
|
V7-7B17D8-140SWITCH SNAP ACTION SPDT 11A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
MVS-3200SWITCH SNAP ACTION SPDT 6A 250V |
950 |
|
Datasheet |
MVS | Retail Package | Active | SPDT | On-Mom | 6A (AC), 500mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | Positive Opening | 250gf | 50gf | - | 0.047" (1.2mm) | 0.005" (0.13mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
V15T22-C1P100-01SWITCH SNAP ACT SPST-NO 22A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
D453-R1AA-G2SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 408gf | 143gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|

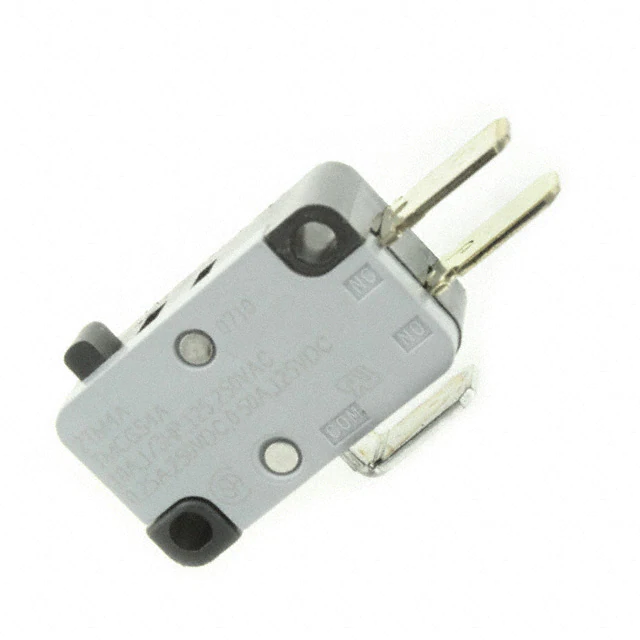

TMCGD6SP004ACSWITCH SNAP ACTION SPDT 10A 125V |
335 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 75gf | 28gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
|
V15S05-CZ200A05-01SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 5A (AC), 100mA (DC) | 125 V | 48 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
V15S05-EZ200-02SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 5A (AC), 100mA (DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
V15H16-CZ200A02SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 120gf | 20gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 150°C |
|
|
E23-50KXSWITCH ROLLER SPDT 5A QC TERM |
188 |
|
- |
E | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | - |
|

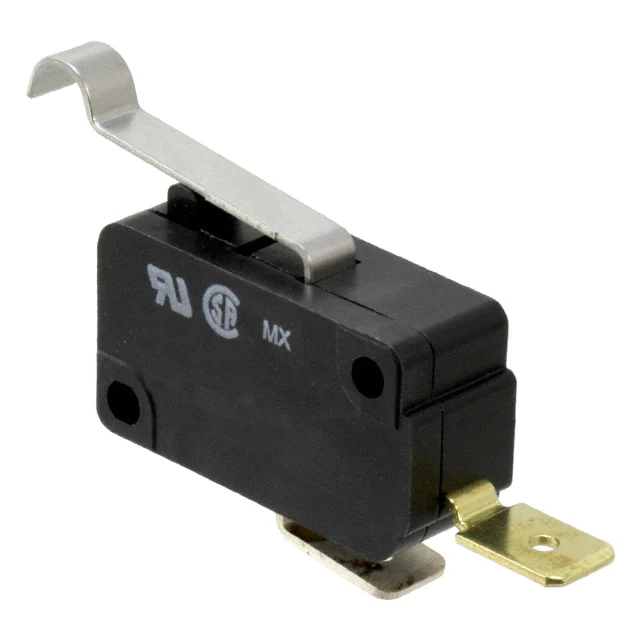

V7-1C27E9-263SWITCH SNAP ACT SPST-NO 15A 125V |
553 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 91gf | 9.000gf | 0.730" (18.5mm) | 0.106" (2.7mm) | 0.025" (0.6mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
DG23-B3RASWITCH SNAP ACT SPDT 0.05A 30V |
0 |
|
Datasheet |
DG | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | IP40 | - | 60gf | - | 0.488" (12.4mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
