Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS-5GL1363-FSWITCH SNAP ACTION ROLLER LEVER |
0 |
|
Datasheet |
SS | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D3V-11G6-1C25-KSWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
D3V | Tray | Obsolete | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
V15H16-CZ300A05SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -25°C ~ 150°C |
|
V7-1S38E9-201-1SWITCH SNP ACT SPST-NC 0.1A 125V |
445 |
|
Datasheet |
V7 | Bulk | Active | SPST-NC | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 170gf | 20gf | 0.808" (20.52mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|
V15T16-CZ100A03-KSWITCH SNAP ACTION SPDT 16A 250V |
354 |
|
Datasheet |
V15 | Tray | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 30gf | 5.000gf | 0.602" (15.3mm) | 0.252" (6.4mm) | 0.094" (2.4mm) | 0.102" (2.6mm) | -25°C ~ 125°C |
|

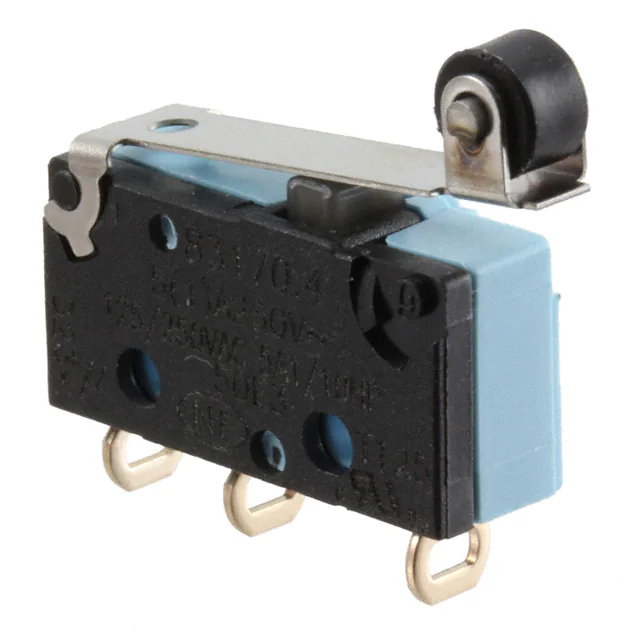

83170442MICROSWITCH V4 831704 I W2 LEVE |
857 |
|
Datasheet |
83170 | Box | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | Actuator Mounted Right Side | 41gf | 7.000gf | 0.571" (14.5mm) | - | 0.009" (0.23mm) | 0.029" (0.74mm) | -20°C ~ 130°C |
|
VX-014-1A2SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
VX | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | 2.039gfm | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
|
D443-R1MD-G2SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 88gf | 25gf | 0.600" (15.2mm) | 0.200" (5.1mm) | 0.050" (1.3mm) | 0.141" (3.6mm) | -40°C ~ 85°C |
|
|
V15T16-EZ200A01-KSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | 50gf | 0.602" (15.3mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
TF316CFA104AYSWITCH SNAP ACT SPST-NO 16A 125V |
392 |
|
Datasheet |
TF3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 190gf | - | 0.803" (20.4mm) | 0.087" (2.2mm) | 0.047" (1.2mm) | 0.015" (0.4mm) | -40°C ~ 125°C |
|
|
V15T22-MZ300-D01SWITCH SNAP ACTION SPDT 22A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 300gf | - | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
MZ-7912SWITCH SNAP ACT SPDT 0.75A 240V |
700 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP60 - Dust Tight | - | 68gf | 34gf | - | 0.047" (1.2mm) | 0.031" (0.8mm) | 0.134" (3.4mm) | -25°C ~ 80°C |
|
831613C6.0SWITCH. ACTUATOR TYPE: NO ACTUAT |
868 |
|
- |
83161 | Box | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 20gf | 0.579" (14.7mm) | - | 0.014" (0.35mm) | 0.047" (1.20mm) | -20°C ~ 125°C |
|
|
F69-75A0ZF F69-30A , |
707 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ZMSL03130T11SSCSWITCH SNAP ACTION SPDT 3A 125V |
2,638 |
|
Datasheet |
ZMS | Tray | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 160gf | 45gf | 0.539" (13.7mm) | 0.188" (4.8mm) | 0.030" (0.76mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
MDS6500AL02LSSWITCH SNAP ACT SPDT 300MA 30V |
5,307 |
|
Datasheet |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|
|
V15T16-CZ300A04SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
V7-1A38E9-201-2SWITCH ACCELERATOR MICRO |
394 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SS-5GL1111D2SWITCH SNAP ACTION HINGE SPDT |
379 |
|
Datasheet |
SS | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SS-01GL-FD1SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SS | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 16gf | 2.039gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
