Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V19S05-V3Z050SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V19 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | PC Pin | IP40 | - | 50gf | 8.000gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
|
V19S05-V3Z015SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V19 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | PC Pin | IP40 | - | 15gf | 4.000gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|
MZ-7011SWITCH SNAP ACT SPDT 0.75A 240V |
700 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 51gf | 29gf | - | 0.100" (2.5mm) | 0.045" (1.1mm) | 0.070" (1.8mm) | -25°C ~ 80°C |
|
DG23-B1LASWITCH SNAP ACT SPDT 0.05A 30V |
13,316 |
|
Datasheet |
DG | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 45gf | - | 0.268" (6.8mm) | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|

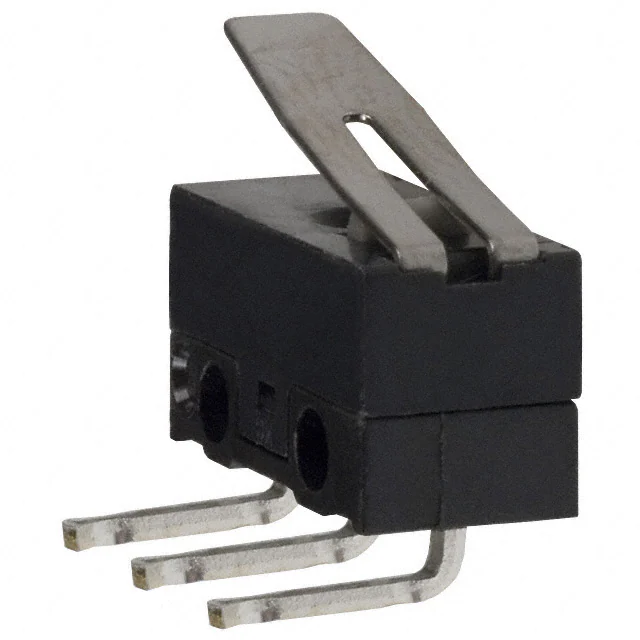

DG23-B3LASWITCH SNAP ACT SPDT 0.05A 30V |
10,613 |
|
Datasheet |
DG | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 45gf | - | 0.268" (6.8mm) | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|

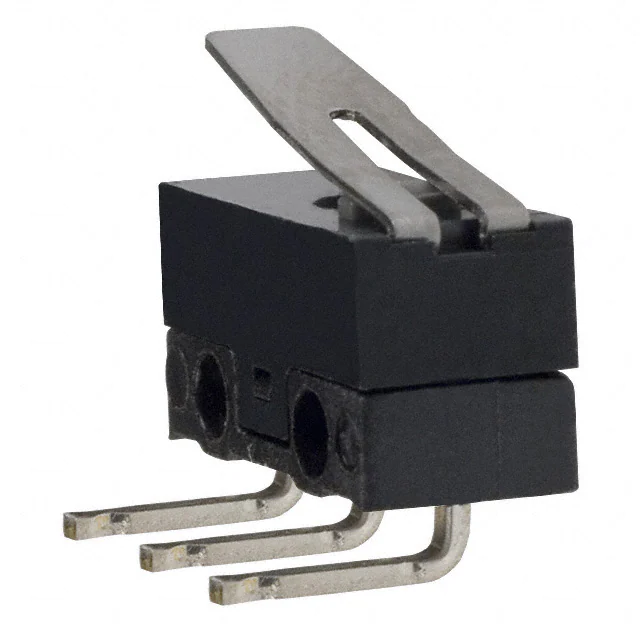

DG23-B2LASWITCH SNAP ACT SPDT 0.05A 30V |
6,588 |
|
Datasheet |
DG | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP40 | - | 45gf | - | 0.268" (6.8mm) | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
|
E33-50KSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
E | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 144gf | - | 0.806" (20.5mm) | 0.125" (3.2mm) | 0.030" (0.76mm) | 0.085" (2.16mm) | -40°C ~ 85°C |
|
|
83263014SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
V3D | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 31gf | 6.118gf | 0.606" (15.4mm) | - | 0.050" (1.3mm) | 0.130" (3.3mm) | -20°C ~ 125°C |
|
V15T16-CZ100-KSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
V7-1C37D8SWITCH SNAP ACT SPST-NC 15A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPST-NC | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
V7-7B29D883SWITCH PIN PLUNGER SPST 11A QC |
147 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NO | Off-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 277gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

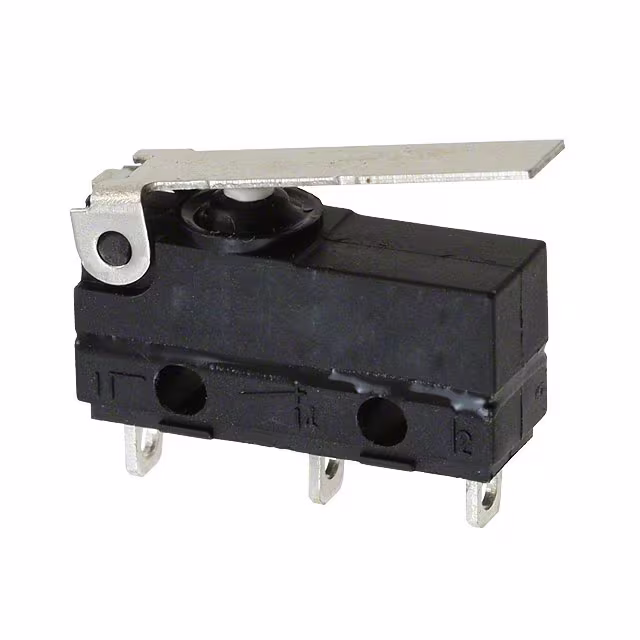

ZW10F15CD1SWITCH SNAP ACT SPDT 100MA 125V |
1,217 |
|
Datasheet |
ZW | Tray | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP00 | - | 66gf | 13gf | 0.345" (8.8mm) | 0.188" (4.8mm) | 0.028" (0.7mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
TF316CFT104AYSWITCH SNAP ACT SPST-NO 16A 125V |
474 |
|
Datasheet |
TF3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 190gf | - | 0.591" (15.0mm) | 0.094" (2.4mm) | 0.055" (1.4mm) | 0.020" (0.5mm) | -40°C ~ 125°C |
.jpg)
|
D3V-11G-1A4-KSWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
V7-1A17D8SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
V7-1B19E9SWITCH SNAP ACTION SPDT 11A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 150gf | 24gf | - | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
V15T16-CZ300A02-KSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 180gf | 30gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|
D3V-165M-1A5SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
|
ZV50B50A01SWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
Datasheet |
ZV | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 65gf | 14gf | 0.449" (11.4mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
|
V15T16-EZ200A04-KSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 20gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
