Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMCGF5ST1040CSWITCH SNAP ACTION SPDT 1A 125V |
2,313 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 28gf | 0.600" (15.2mm) | 0.080" (2.0mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
V7-7B17D8-481SWITCH SNAP ACTION SPDT 11A 125V |
176 |
|
Datasheet |
V7 | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Formed | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 178gf | 28gf | 0.770" (19.5mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
DB3C-A1RCSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 55gf | - | 0.638" (16.2mm) | 0.178" (4.5mm) | 0.025" (0.6mm) | 0.079" (2.0mm) | -40°C ~ 120°C |
|
|
D443-R1LD-G2SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 147gf | 41gf | 0.600" (15.2mm) | 0.125" (3.2mm) | 0.031" (0.8mm) | 0.090" (2.3mm) | -40°C ~ 85°C |
|
|
V15H10-KZ100-ASWITCH BASIC |
1,104 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

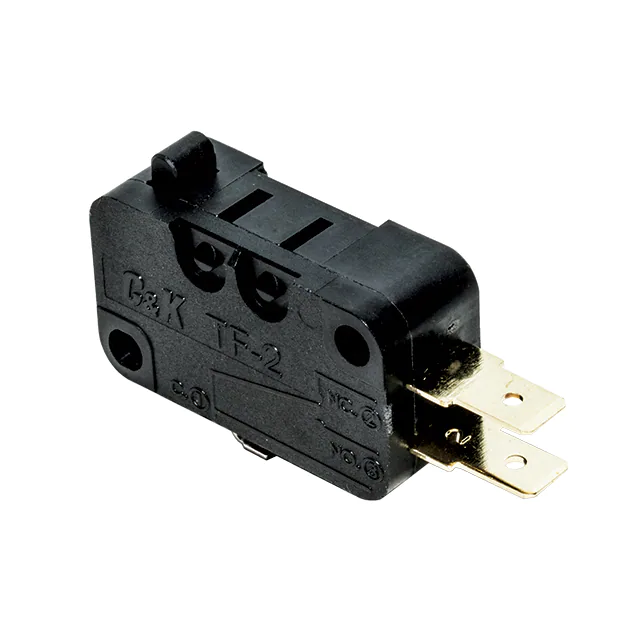

TF2CHK6SP0010CSWITCH SNAP ACTION SPDT 10A 125V |
276 |
|
Datasheet |
TF2 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 75gf | 14gf | 0.579" (14.7mm) | 0.068" (1.72mm) | 0.016" (0.4mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|
ABS1412403SWITCH SNAP ACTION SPDT 2A 125V |
134 |
|
Datasheet |
ABS | Bulk | Obsolete | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 35gf | 3.059gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
D3V-166M-1C25SWITCH SNAP ACTION SPDT 16A 250V |
200 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
|
D443-R1AA-G2SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
- |
D4 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | Explosion Proof | 291gf | 102gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
HS-2206-A1 NSSWITCH DETECTOR DPDT 200MA 30V |
2,886 |
|
Datasheet |
HS, COMAX | Tray | Active | DPDT | On-Mom | 200mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 50gf | - | 0.312" (7.9mm) | - | - | - | - |
|
MV-3005A-PSWITCH SNAP ACTION SPDT 5A 250V |
6,000 |
|
Datasheet |
MV | Retail Package | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | POM Roller | 140gf | 20gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -20°C ~ 80°C |
|
MV-3003ALSWITCH SNAP ACTION SPDT 5A 250V |
6,000 |
|
Datasheet |
MV | Bulk | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | Long Lever | 112gf | 60gf | - | 0.244" (6.2mm) | 0.060" (1.5mm) | 0.164" (4.2mm) | -20°C ~ 80°C |
|
|
V15T22-CP100-KSWITCH SNAP ACT SPST-NO 22A 250V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 22A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
SS-5GL2-FD2SWITCH SNAP ACTION SPDT 5A 125V |
390 |
|
Datasheet |
SS | Tray | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | IP40 | - | 16gf | 2.039gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D3V-11G54-1C25-KSWITCH SNAP ACTION SPDT 11A 250V |
109 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|

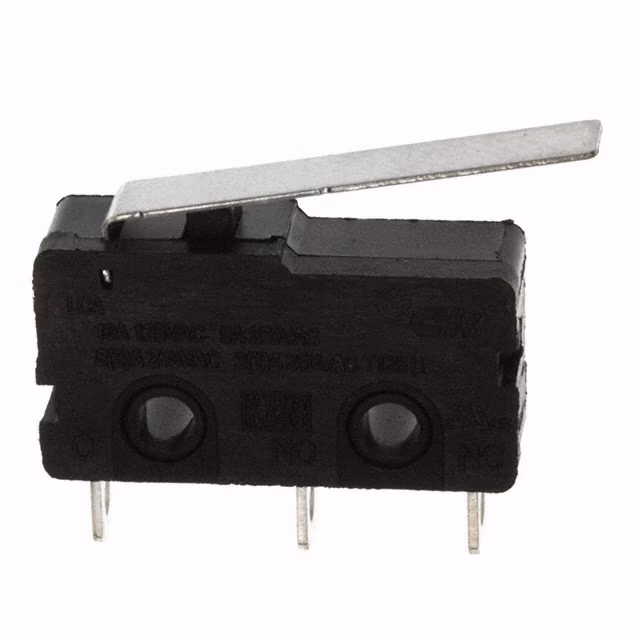

LCA10150T09SCSWITCH SNAP ACTION SPDT 10A 125V |
1,935 |
|
Datasheet |
LCA | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 33gf | 2.000gf | 0.362" (9.2mm) | 0.170" (4.3mm) | 0.070" (1.8mm) | 0.029" (0.74mm) | -40°C ~ 125°C |
|
|
V19S05-N2Z200A06-KSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V19 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.107" (2.7mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
.jpg)
|
D3V-6-1A4SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 6A (AC), 400mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
DG13-B1LASWITCH SNAP ACTION SPDT 3A 125V |
15,319 |
|
Datasheet |
DG | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 45gf | - | 0.268" (6.8mm) | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
|
V19S05-CZ050B01SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V19 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 50gf | 8.000gf | 0.598" (15.2mm) | 0.063" (1.6mm) | 0.047" (1.2mm) | 0.031" (0.79mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
