Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB2C-B1RCSWITCH SNAP ACTION SPDT 10A 125V |
1,886 |
|
- |
* | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | - | - | 0.638" (16.2mm) | 0.197" (5.0mm) | 0.040" (1.0mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|
|
DB1C-B1RCSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
DB | Bulk | Active | SPDT | On-Mom | 5A (AC), 1A (DC) | 125 V | 48 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 55gf | - | 0.638" (16.2mm) | 0.178" (4.5mm) | 0.025" (0.6mm) | 0.079" (2.0mm) | -40°C ~ 120°C |
|
DB2C-A1RCSWITCH SNAP ACTION SPDT 10A 125V |
718 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 95gf | - | 0.638" (16.2mm) | 0.197" (5.0mm) | 0.040" (1.0mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|
|
DB1C-A1RCSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
DB | Bulk | Active | SPDT | On-Mom | 5A (AC), 1A (DC) | 125 V | 48 V | Lever, Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 55gf | - | 0.638" (16.2mm) | 0.178" (4.5mm) | 0.025" (0.6mm) | 0.079" (2.0mm) | -40°C ~ 120°C |
|
|
DB3C-A1LCSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 50gf | - | 0.437" (11.1mm) | 0.178" (4.5mm) | 0.025" (0.6mm) | 0.079" (2.0mm) | -40°C ~ 120°C |
|
|
DB3C-A1LBSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 60gf | - | 0.420" (10.7mm) | 0.157" (4.0mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -40°C ~ 120°C |
|
V15S05-EZ015-K04SWITCH SNAP ACTION SPDT 5A 125V |
990 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 5A (AC), 100mA (DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 16gf | 3.000gf | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.013" (0.33mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
|
|
DB3C-B1LCSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 50gf | - | 0.437" (11.1mm) | 0.178" (4.5mm) | 0.025" (0.6mm) | 0.079" (2.0mm) | -40°C ~ 120°C |
|

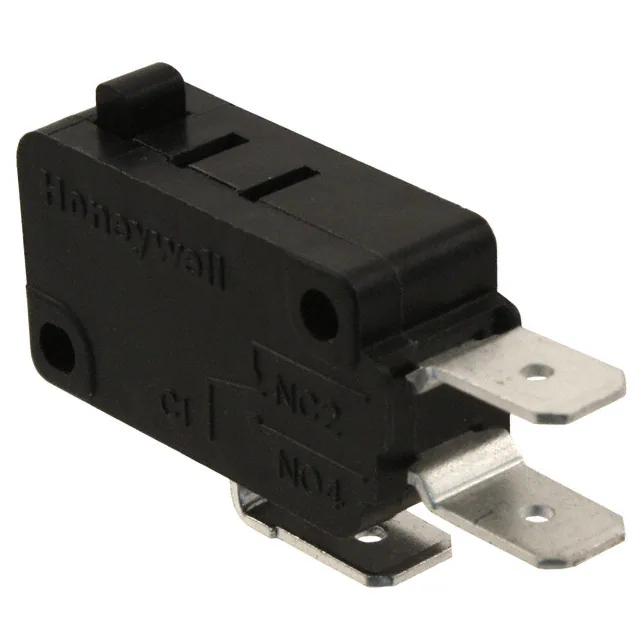

V15H22-CZ100-KSWITCH SNAP ACTION SPDT 22A 250V |
794 |
|
Datasheet |
V15 | Tray | Obsolete | SPDT | On-Mom | 22A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 150°C |
|
V-10-6C5SWITCH SNAP ACT SPST-NO 10A 250V |
193 |
|
Datasheet |
V | Bulk | Obsolete | SPST-NO | Off-Mom | 10A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
.jpg)
|
D3V-16G-1A5-KSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
MDS6500AL02RSSWITCH SNAP ACT SPDT 300MA 30V |
4,056 |
|
Datasheet |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|
|
ZX10C30B01SWITCH SNAP ACTION SPDT 0.1A 48V |
0 |
|
Datasheet |
ZX | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 48 V | Lever, Straight | Through Hole | PC Pin | - | - | 40gf | 6.000gf | 0.250" (6.4mm) | 0.134" (3.4mm) | 0.050" (1.3mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
MDS6500AL02RLSWITCH SNAP ACT SPDT 300MA 30V |
1,577 |
|
Datasheet |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|
|
D2AW-ER073H RSWITCH SNAP ACTION SUBMINI BASIC |
489 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

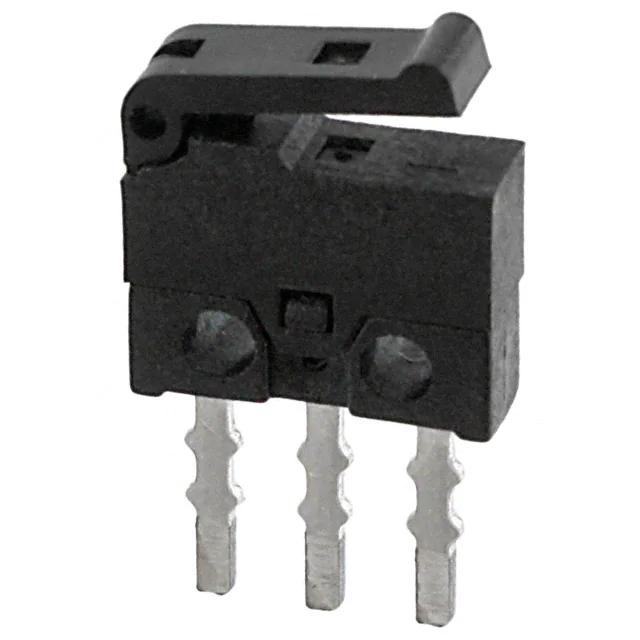

MDS6500AL02PLSWITCH SNAP ACT SPDT 300MA 30V |
395 |
|
Datasheet |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|
D3V-21G-3C4A-KSWITCH SNP ACT SPST-NO 21A 250V |
175 |
|
Datasheet |
D3V | Bulk | Obsolete | SPST-NO | Off-Mom | 21A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
|
ZMSH00130T11SSCSWITCH SNAP ACT SPDT SLDR |
273 |
|
Datasheet |
ZMS | Bulk | Obsolete | SPDT | On-Mom | 100mA (DC) | - | 12 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 160gf | 45gf | 0.539" (13.7mm) | 0.188" (4.8mm) | 0.027" (0.7mm) | 0.101" (2.57mm) | -40°C ~ 85°C |
|
D3V-16G-3C25SWITCH SNAP ACT SPST-NO 16A 250V |
975 |
|
Datasheet |
D3V | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
|
V19T16-P2Z400SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
V19 | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | PC Pin | IP40 | - | 400gf | 79gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 125°C |
