Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
150102J630BBCAP FILM 1000PF 5% 630VDC AXIAL |
426 |
|
Datasheet |
Axial | 1000 pF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
BFC241641004CAP FILM 0.1UF 2% 63VDC RADIAL |
6,440 |
|
Datasheet |
Radial | 0.1 µF | ±2% | 25V | 63V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
P295BJ222M500ACAP FILM 2200PF 20% 500VAC RAD |
5,513 |
|
Datasheet |
Radial | 2200 pF | ±20% | 500V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
224MPW400KCAP FILM 0.22UF 10% 400VDC AXIAL |
323 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.413" Dia x 1.142" L (10.50mm x 29.00mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
R46KR422000M2MCAP FILM 2.2UF 20% 560VDC RADIAL |
9,499 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

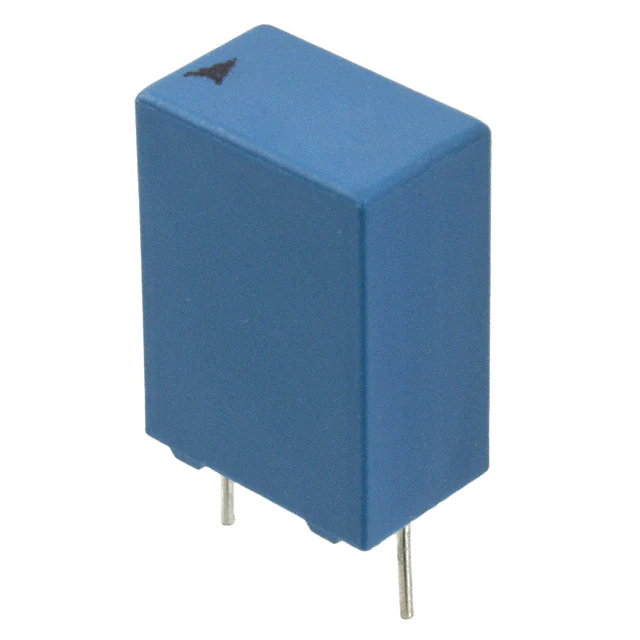

B32671P4105K000CAP FILM 1UF 10% 450VDC RADIAL |
1,500 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.315" W (13.00mm x 8.00mm) | 0.689" (17.50mm) | PC Pins | 0.394" (10.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
 Series Straight 18x12.jpg)
|
ECW-F2225JACAP FILM 2.2UF 5% 250VDC RADIAL |
1,387 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740" L x 0.496" W (18.80mm x 12.60mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
MKS4G042206B00KSSDCAP FILM 2.2UF 10% 400VDC RADIAL |
973 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R60CF4560506AKCAP FILM 5.6UF 10% 50VDC RADIAL |
3,399 |
|
Datasheet |
Radial | 5.6 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
FKP3D031004D00KSSDCAP FILM 0.1UF 10% 100VDC RAD |
2,451 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
MKP4F041005D00KSSDMKP 4 1.0 F 250 VDC 7X16.5X26.5 |
2,274 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
685MMR250KCAP FILM 6.8UF 10% 250VDC RADIAL |
1,195 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
R76UN23304040JCAP FILM 0.033UF 5% 2KVDC RADIAL |
545 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32524Q6225KCAP FILM 2.2UF 10% 400VDC RADIAL |
470 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
SMDTC04100QB00KP00CAP FILM 1UF 10% 40VAC 2220 |
139 |
|
Datasheet |
2220 (5750 Metric) | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.201" W (5.70mm x 5.10mm) | 0.189" (4.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
B32522C0475J000CAP FILM 4.7UF 5% 63VDC RADIAL |
15,478 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
ECQ-E4155KFCAP FILM 1.5UF 10% 400VDC RADIAL |
272 |
|
Datasheet |
Radial | 1.5 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.374" W (31.00mm x 9.50mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
MKT1813410635CAP FILM 0.1UF 10% 630VDC AXIAL |
130 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.413" Dia x 0.748" L (10.50mm x 19.00mm) | - | PC Pins | - | General Purpose | - | - |
|
PME295RB4220MR30CAP FILM 2200PF 20% 480VAC RAD |
5,637 |
|
Datasheet |
Radial | 2200 pF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
|
BFC237011105CAP FILM 1UF 10% 63VDC RADIAL |
5,212 |
|
Datasheet |
Radial | 1 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
