Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32654A7104J000CAP FILM 0.1UF 5% 1.25KVDC RAD |
2,453 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
104MPW630KCAP FILM 0.1UF 10% 630VDC AXIAL |
1,234 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.413" Dia x 1.142" L (10.50mm x 29.00mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
B32642B0104KCAP FILM 0.1UF 10% 1KVDC RADIAL |
237 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32529D5335J289CAP FILM 3.3UF 5% 50VDC RADIAL |
17,639 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 32V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
BFC233820154CAP FILM 0.15UF 20% 630VDC RAD |
2,662 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E2W105KHCAP FILM 1UF 10% 450VDC RADIAL |
1,740 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 450V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.335" W (18.20mm x 8.50mm) | 0.705" (17.90mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | - | - |
|
ECW-U1C224JC9CAP FILM 0.22UF 5% 16VDC 1913 |
4,103 |
|
Datasheet |
1913 (4833 Metric) | 0.22 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|
R75TN312050H3JCAP FILM 0.12UF 5% 1.6KVDC RAD |
377 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 9.3 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
SMR5224J50J02L16.5CBULKCAP FILM 0.22UF 5% 50VDC RADIAL |
3,766 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|

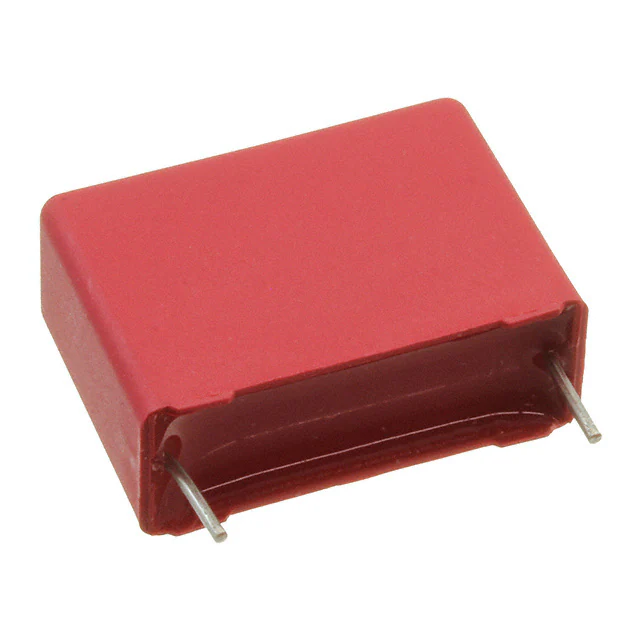

MKP1U024705G00KSSDCAP FILM 0.047UF 10% 2KVDC RAD |
2,692 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
F339X141048MFP2B0CAP FILM 0.1UF 20% 1KVDC RADIAL |
2,029 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
QXK2E105KTPTZHCAP FILM 1UF 10% 250VDC RADIAL |
256 |
|
Datasheet |
Radial | 1 µF | ±10% | 125V | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.339" W (20.50mm x 8.60mm) | 0.642" (16.30mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
B32912B3334M189CAP FILM 0.33UF 20% 760VDC RAD |
13,114 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
|
MKT1813310404CAP FILM 10000PF 5% 400VDC AXIAL |
1,772 |
|
Datasheet |
Axial | 10000 pF | ±5% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
F872BS104M480LCAP FILM POLYPROP RAD X1 |
1,381 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
B32672Z5105K000CAP FILM 1UF 10% 520VDC RADIAL |
1,183 |
|
Datasheet |
Radial | 1 µF | ±10% | 277V | 520V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | - | - |
|
B32522C1225K189CAP FILM 2.2UF 10% 100VDC RADIAL |
9,249 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
PHE850ED6100MD18R06L2CAP FILM 0.1UF 20% 1.25KVDC RAD |
8,635 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
MKT1813210635GCAP FILM 1000PF 10% 630VDC AXIAL |
5,246 |
|
Datasheet |
Axial | 1000 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | General Purpose | - | - |
|
MMK5105K50J02L4BULKCAP FILM 1UF 10% 50VDC RADIAL |
4,007 |
|
Datasheet |
Radial | 1 µF | ±10% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
