Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKT1813233635GCAP FILM 3300PF 10% 630VDC AXIAL |
3,246 |
|
Datasheet |
Axial | 3300 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | General Purpose | - | - |
|
MKT1813410255CAP FILM 0.1UF 10% 250VDC AXIAL |
1,901 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.236" Dia x 0.551" L (6.00mm x 14.00mm) | - | PC Pins | - | General Purpose | - | - |
|
B32653A0224J000CAP FILM 0.22UF 5% 1KVDC RADIAL |
1,659 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
PFR5471H100J11L4BULKCAP FILM 470PF 2.5% 100VDC RAD |
330 |
|
Datasheet |
Radial | 470 pF | ±2.5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
FKP1Y013305H00KSC9CAP FILM 3300PF 10% 6KVDC RAD |
1,801 |
|
Datasheet |
Radial | 3300 pF | ±10% | 700V | 6000V (6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

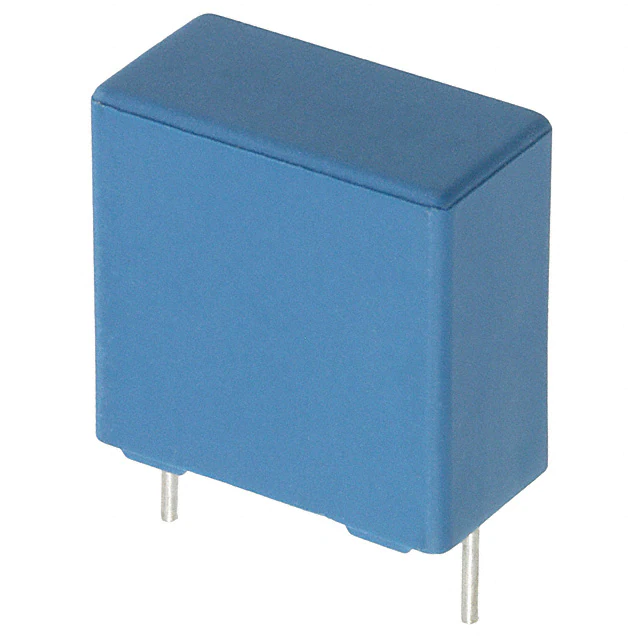

B32672P4185K000CAP FILM 1.8UF 10% 450VDC RADIAL |
109 |
|
Datasheet |
Radial | 1.8 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | - | - |
|
B32674D8474K000CAP FILM 0.47UF 10% 875VDC RAD |
3,560 |
|
Datasheet |
Radial | 0.47 µF | ±10% | - | 875V | Polypropylene (PP), Metallized | 45.2 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
PME271M547MR30CAP FILM 0.047UF 20% 275VAC RAD |
2,273 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
150333J250BBCAP FILM 0.033UF 5% 250VDC AXIAL |
371 |
|
Datasheet |
Axial | 0.033 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKS2B044701K00MSSDCAP FILM 4.7UF 20% 50VDC RADIAL |
2,005 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32923C3225K000CAP FILM 2.2UF 10% 630VDC RADIAL |
1,686 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.571" W (26.50mm x 14.50mm) | 1.161" (29.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
F863DV155K310ZCAP FILM 1.5UF 10% 630VDC RADIAL |
959 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PWS1632150KDCAP FILM 0.015UF 10% 630VDC AXL |
657 |
|
Datasheet |
Axial | 0.015 µF | ±10% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
PWS1632220KDCAP FILM 0.022UF 10% 630VDC AXL |
287 |
|
Datasheet |
Axial | 0.022 µF | ±10% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.315" Dia x 0.748" L (8.00mm x 19.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
25MU104KZ22012CAP FILM 0.1UF 10% 25VDC 0805 |
5,855 |
|
Datasheet |
0805 (2012 Metric) | 0.1 µF | ±10% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
MKT1813247635GCAP FILM 4700PF 10% 630VDC AXIAL |
2,948 |
|
Datasheet |
Axial | 4700 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | General Purpose | - | - |
|
ECQ-E4225KFCAP FILM 2.2UF 10% 400VDC RADIAL |
1,643 |
|
Datasheet |
Radial | 2.2 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
B32672P4155K000CAP FILM 1.5UF 10% 450VDC RADIAL |
7,933 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
|
BFC233660222CAP FILM 2200PF 20% 1KVDC RADIAL |
693 |
|
Datasheet |
Radial | 2200 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.157" W (12.50mm x 4.00mm) | 0.394" (10.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|

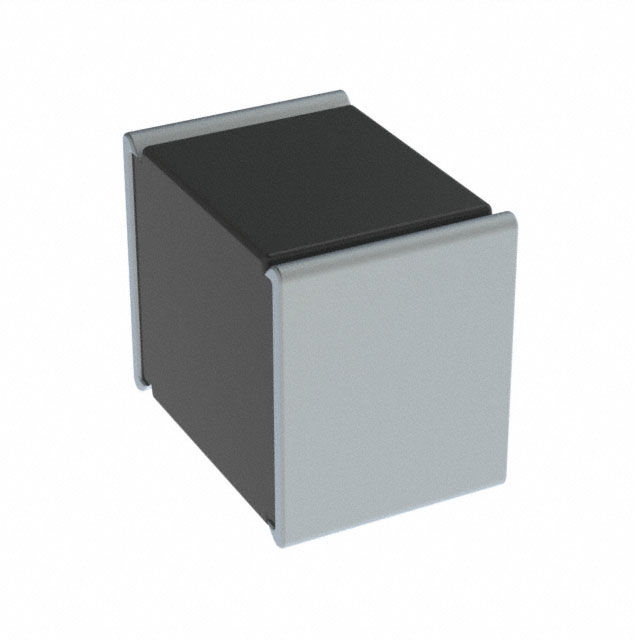

SMDTC03470KB00KP00CAP FILM 0.47UF 10% 40VAC 1812 |
647 |
|
Datasheet |
1812 (4532 Metric) | 0.47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.169" (4.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
