Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PME271Y422MR19T0CAP FILM 2200PF 20% 1KVDC RADIAL |
5,148 |
|
Datasheet |
Radial | 2200 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
BFC241941002CAP FILM 1000PF 2% 400VDC RADIAL |
1,953 |
|
Datasheet |
Radial | 1000 pF | ±2% | 125V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|

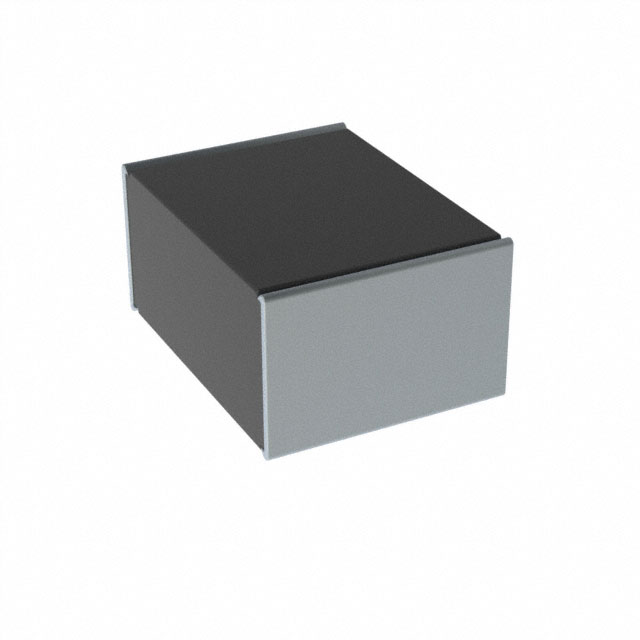

SMDTD04100VA00KR00CAP FILM 1UF 10% 63VAC 4030 |
1,696 |
|
Datasheet |
4030 (10276 Metric) | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.299" W (10.20mm x 7.60mm) | 0.209" (5.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
685MMR100KCAP FILM 6.8UF 10% 100VDC RADIAL |
16,194 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
B32523Q1335K000CAP FILM 3.3UF 10% 100VDC RADIAL |
9,347 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
CB042D0684JBCCAP FILM 0.68UF 5% 63VDC 2220 |
2,531 |
|
Datasheet |
2220 (5750 Metric) | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.157" (4.00mm) | Solder Pads | - | General Purpose | - | - |
|
MKP1G034706A00KSSDCAP FILM 0.47UF 10% 400VDC RAD |
1,340 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|

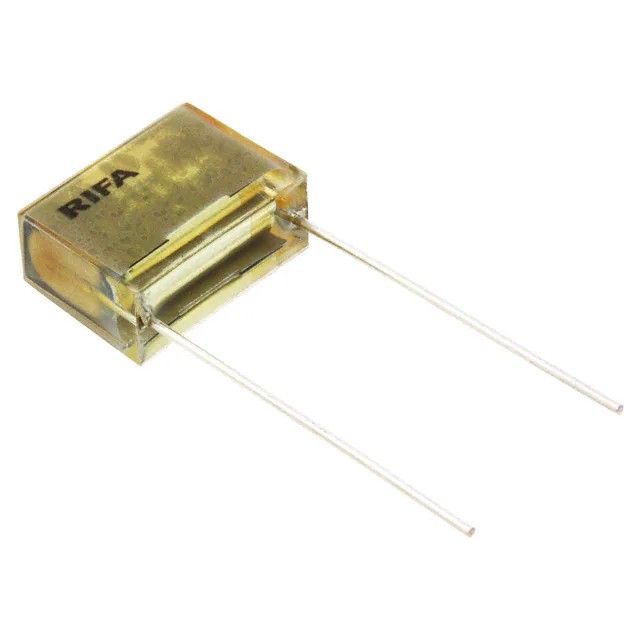

PME271M568MR30CAP FILM 0.068UF 20% 275VAC RAD |
193 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.307" W (18.50mm x 7.80mm) | 0.532" (13.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
PME295RB3680MR30CAP FILM 680PF 20% 1.5KVDC RAD |
126 |
|
Datasheet |
Radial | 680 pF | ±20% | 440V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
ECW-U2473JC9CAP FILM 0.047UF 5% 250VDC 2416 |
4,807 |
|
Datasheet |
2416 (6041 Metric) | 0.047 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|

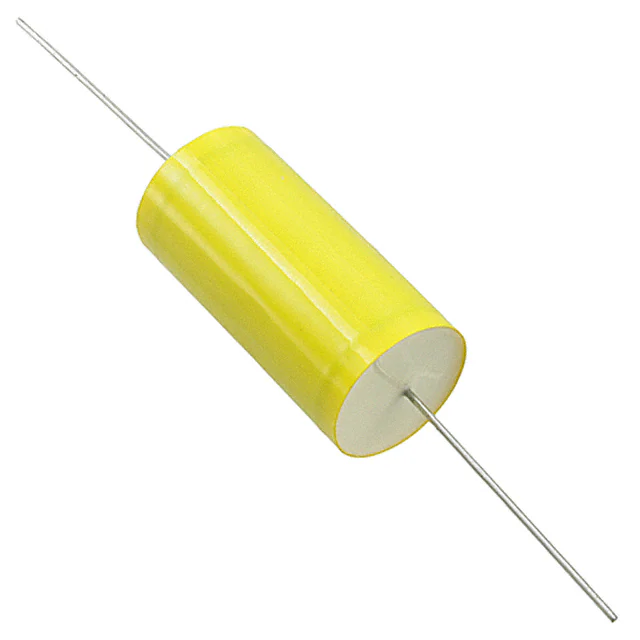

A50QH1470AA00KCAP FILM 4700PF 10% 1KVDC AXIAL |
844 |
|
Datasheet |
Axial | 4700 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.295" Dia x 0.551" L (7.50mm x 14.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
ECQ-UAAF225MCAP FILM 2.2UF 20% 275VAC RADIAL |
476 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.571" W (31.00mm x 14.50mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
PWS2102100KGCAP FILM 10000PF 10% 1KVDC AXIAL |
430 |
|
Datasheet |
Axial | 10000 pF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.276" Dia x 1.063" L (7.00mm x 27.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|

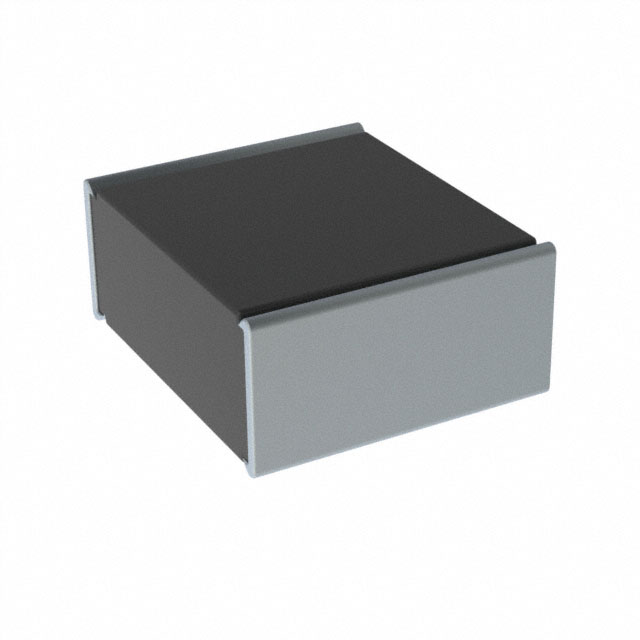

SMDTC04100TA00KQ00CAP FILM 1UF 10% 40VAC 2824 |
3,985 |
|
Datasheet |
2824 (7260 Metric) | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.130" (3.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
PME271M610MR30CAP FILM 0.1UF 20% 275VAC RADIAL |
8,892 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X2 | - |
|
MKT1813315635GCAP FILM 0.015UF 10% 630VDC AXL |
2,979 |
|
Datasheet |
Axial | 0.015 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.256" Dia x 0.551" L (6.50mm x 14.00mm) | - | PC Pins | - | General Purpose | - | - |
|
PHE426HD7100JR06L2CAP FILM 1UF 5% 250VDC RADIAL |
2,466 |
|
Datasheet |
Radial | 1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F862DU125K310ZLH0JCAP FILM 1.2UF 10% 630VDC RADIAL |
5,684 |
|
Datasheet |
Radial | 1.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
ECW-U1C334JC9CAP FILM 0.33UF 5% 16VDC 2416 |
2,481 |
|
Datasheet |
2416 (6041 Metric) | 0.33 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.087" (2.20mm) | Solder Pads | - | General Purpose | - | - |
|
B32653A8103J000CAP FILM 10000PF 5% 2KVDC RADIAL |
1,816 |
|
Datasheet |
Radial | 10000 pF | ±5% | 1000V (1kV) | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
