Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E6105KFCAP FILM 1UF 10% 630VDC RADIAL |
19,003 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.492" W (31.00mm x 12.50mm) | 0.902" (22.90mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECW-U1224KC9CAP FILM 0.22UF 10% 100VDC 2820 |
6,111 |
|
Datasheet |
2820 (7150 Metric) | 0.22 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|
MKP1837310011CAP FILM 10000PF 1% 160VDC RAD |
2,606 |
|
Datasheet |
Radial | 10000 pF | ±1% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.295" L x 0.217" W (7.50mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
R76UN24704040JCAP FILM 0.047UF 5% 2KVDC RADIAL |
421 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
MKT1813247635CAP FILM 4700PF 10% 630VDC AXIAL |
1,093 |
|
Datasheet |
Axial | 4700 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKP1837315161GCAP FILM 0.015UF 1% 160VDC RAD |
801 |
|
Datasheet |
Radial | 0.015 µF | ±1% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.295" L x 0.217" W (7.50mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
F339X141048MIP2T0CAP FILM 0.1UF 20% 1KVDC RADIAL |
192 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
MKP1F041005I00JSSDCAP FILM 1UF 5% 250VDC RAD |
4,501 |
|
Datasheet |
Radial | 1 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
ECW-F6203HLCAP FILM 0.02UF 3% 630VDC RADIAL |
197 |
|
Datasheet |
Radial | 0.02 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.256" W (12.50mm x 6.50mm) | 0.425" (10.80mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
B32653A6474J000CAP FILM 0.47UF 5% 630VDC RADIAL |
9,930 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
B32924C3105M000CAP FILM 1UF 20% 630VDC RADIAL |
5,514 |
|
Datasheet |
Radial | 1 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKT1813222635GCAP FILM 2200PF 10% 630VDC AXIAL |
3,480 |
|
Datasheet |
Axial | 2200 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | General Purpose | - | - |
|
BFC233860223CAP FILM 0.022UF 20% 1KVDC RAD |
51,083 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|

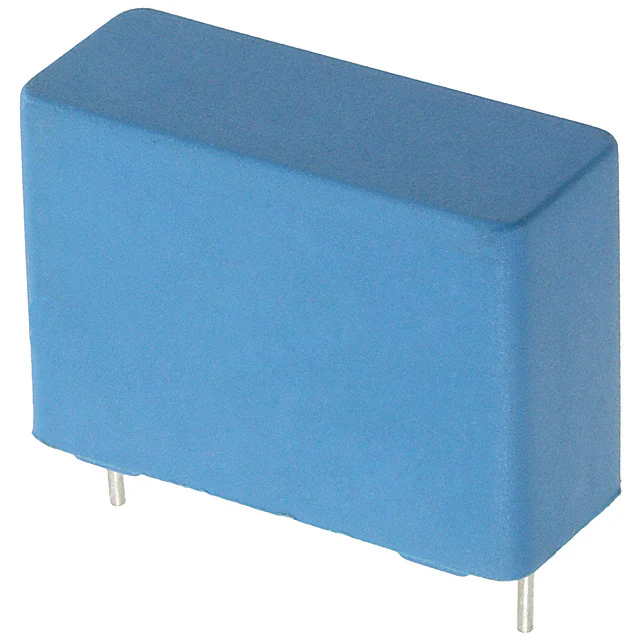

B32023A3154M000CAP FILM 0.15UF 20% 1.5KVDC RAD |
39,076 |
|
Datasheet |
Radial | 0.15 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
QXK2J105KTPCAP FILM 1UF 10% 630VDC RADIAL |
2,314 |
|
Datasheet |
Radial | 1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.201" L x 0.472" W (30.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|

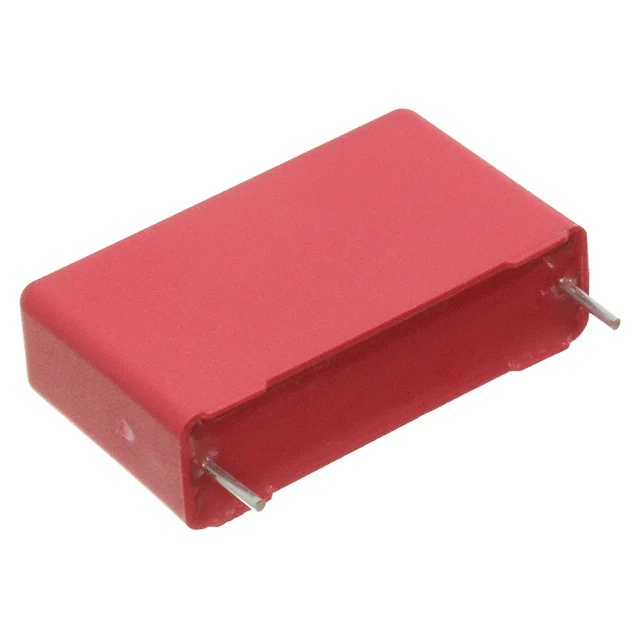

MKP1T026806A00KSSDCAP FILM 0.068UF 10% 1.6KVDC RAD |
2,028 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.354" W (31.50mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKP1G036806B00KSSDCAP FILM 0.68UF 10% 400VDC RAD |
1,723 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
BFC236845224CAP FILM 0.22UF 10% 250VDC RAD |
2,004 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
B32523Q3335J000CAP FILM 3.3UF 5% 250VDC RADIAL |
6,629 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
MKT1813215635GCAP FILM 1500PF 10% 630VDC AXIAL |
3,454 |
|
Datasheet |
Axial | 1500 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.236" Dia x 0.551" L (6.00mm x 14.00mm) | - | PC Pins | - | General Purpose | - | - |
