Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FKP3C031004C00JSSDCAP FILM 0.1UF 5% 63VDC RAD |
4,398 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MKS4J033305D00KSSDCAP FILM 0.33UF 10% 630VDC RAD |
2,272 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PME271Y522MR19T0CAP FILM 0.022UF 20% 1KVDC RAD |
1,980 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
PME261JB5220KR30CAP FILM 0.022UF 10% 1KVDC RAD |
1,253 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 500V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | General Purpose | - | - |
|
BFC233820334CAP FILM 0.33UF 20% 630VDC RAD |
1,096 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
PME271M522MR30CAP FILM 0.022UF 20% 275VAC RAD |
949 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
ECW-F4513JLCAP FILM 0.051UF 5% 400VDC RAD |
381 |
|
Datasheet |
Radial | 0.051 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.252" W (12.50mm x 6.40mm) | 0.421" (10.70mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
|
MKP1O131005F00KSC9CAP FILM 0.1UF 10% 1KVDC RAD |
10,118 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
SMR5104J50J01L16.5CBULKCAP FILM 0.1UF 5% 50VDC RADIAL |
7,216 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
F861DP155K310ZLH0JCAP FILM 1.5UF 10% 310VAC RADIAL |
5,497 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE844RD6100KR06L2CAP FILM 0.1UF 10% 1KVDC RADIAL |
2,457 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
105MWR050KCAP FILM 1UF 10% 50VDC AXIAL |
1,931 |
|
Datasheet |
Axial | 1 µF | ±10% | 30V | 50V | Polyester, Metallized | 1.768 Ohms | -40°C ~ 105°C | Through Hole | 0.295" Dia x 0.453" L (7.50mm x 11.50mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
ECW-FD2W475JCAP FILM 4.7UF 5% 450VDC RADIAL |
1,848 |
|
Datasheet |
Radial | 4.7 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.996" L x 0.461" W (25.30mm x 11.70mm) | 0.646" (16.40mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

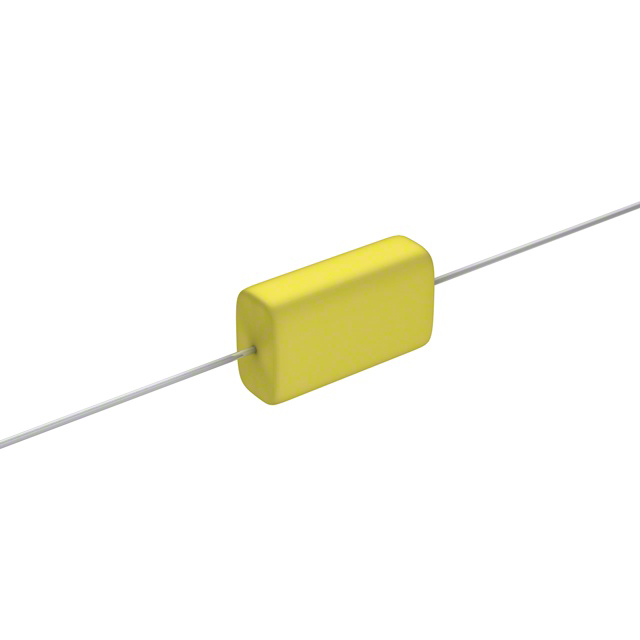

MMP6S33K-FCAP FILM 0.033UF 630VDC AXIAL |
1,318 |
|
Datasheet |
Axial | 0.033 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.394" W, 0.236" T x 0.669" L (10.00mm, 6.00mm x 17.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
KP1830222011CAP FILM 2200PF 1% 100VDC RADIAL |
968 |
|
Datasheet |
Radial | 2200 pF | ±1% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-F6473HLCAP FILM 0.047UF 3% 630VDC RAD |
685 |
|
Datasheet |
Radial | 0.047 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.252" W (15.50mm x 6.40mm) | 0.484" (12.30mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
ECW-U4473V17CAP FILM 0.047UF 5% 400VDC 2820 |
26,977 |
|
Datasheet |
2820 (7150 Metric) | 0.047 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.165" (4.20mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|

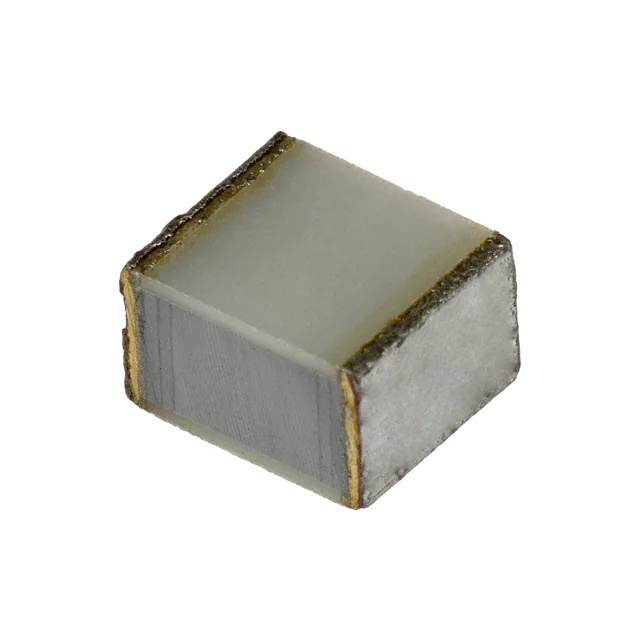

ECW-U4563V17CAP FILM 0.056UF 5% 400VDC 2825 |
1,988 |
|
Datasheet |
2825 (7163 Metric) | 0.056 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.157" (4.00mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|

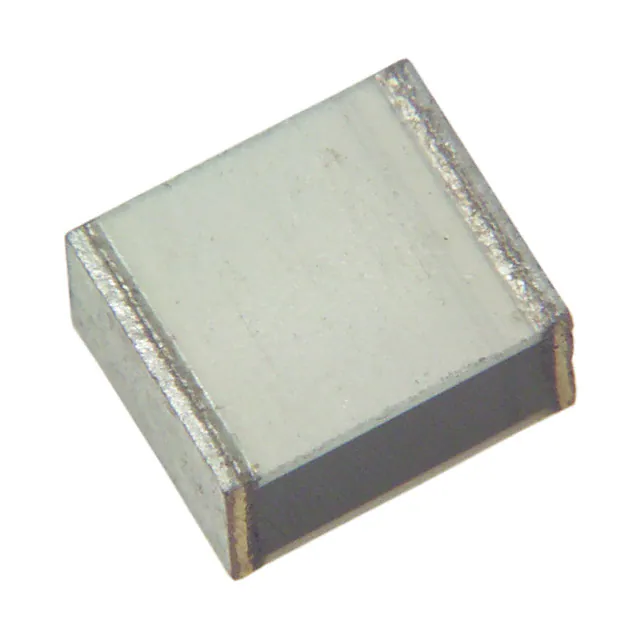

ECW-U2104KC9CAP FILM 0.1UF 10% 250VDC 2420 |
20,711 |
|
Datasheet |
2420 (6050 Metric) | 0.1 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.157" (4.00mm) | Solder Pads | - | General Purpose | - | - |
|
F872BS104M480ACAP FILM 0.1UF 20% 1KVDC RAD |
3,526 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
