Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FKP1Y013305H00JSSDFKP 1 3300 PF 6000 VDC 10.5X20.5 |
1,550 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CB047D0684JBCCAP FILM |
936 |
|
Datasheet |
2220 (5750 Metric) | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.154" (3.90mm) | Solder Pads | - | General Purpose | - | - |
 Series Straight 26x16x21.jpg)
|
ECW-FA2J225JCAP FILM 2.2UF 5% 630VDC RADIAL |
3,431 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.642" W (26.00mm x 16.30mm) | 0.843" (21.40mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
ECW-H12473JVCAP FILM 0.047UF 5% 1.25KVDC RAD |
2,674 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.453" W (23.00mm x 11.50mm) | 0.866" (22.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
MKS4D043304J00KSSDCAP FILM 3.3UF 10% 100VDC RADIAL |
1,600 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

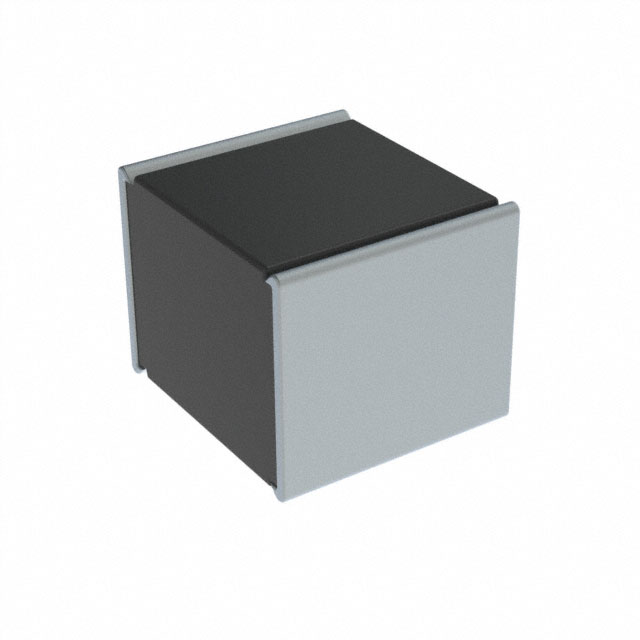

SMDIF02100QA00KP00CAP FILM 10000PF 10% 250VDC 2220 |
1,205 |
|
Datasheet |
2220 (5750 Metric) | 10000 pF | ±10% | 160V | 250V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 140°C | Surface Mount | 0.224" L x 0.201" W (5.70mm x 5.10mm) | 0.150" (3.80mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-F4204JLCAP FILM 0.2UF 5% 400VDC RADIAL |
241 |
|
Datasheet |
Radial | 0.2 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.339" W (15.50mm x 8.60mm) | 0.583" (14.80mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
B32653A2153J000CAP FILM 0.015UF 5% 2KVDC RADIAL |
2,038 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
SMDTD04100TB00MQ00CAP FILM 1UF 20% 63VAC 2824 |
1,754 |
|
Datasheet |
2824 (7260 Metric) | 1 µF | ±20% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.209" (5.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
PME295RB4100MR30CAP FILM 1000PF 20% 480VAC RAD |
1,354 |
|
Datasheet |
Radial | 1000 pF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
ECW-U4154V17CAP FILM 0.15UF 5% 400VDC 3931 |
861 |
|
Datasheet |
3931 (9880 Metric) | 0.15 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.386" L x 0.315" W (9.80mm x 8.00mm) | 0.197" (5.00mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
B32924C3225M000CAP FILM 2.2UF 20% 630VDC RADIAL |
16,809 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

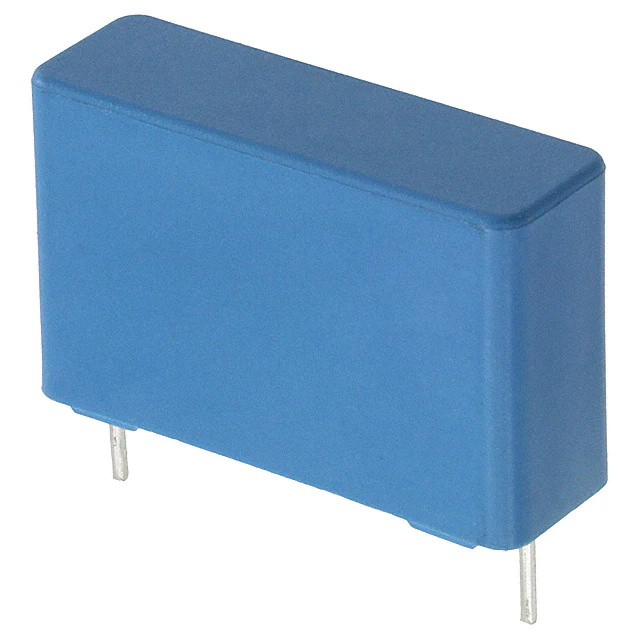

B32673P4225K000CAP FILM 2.2UF 10% 450VDC RADIAL |
11,705 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Power Factor Correction (PFC) | - | - |
|
|
B32924C3225K000CAP FILM 2.2UF 10% 630VDC RADIAL |
5,588 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
168474J63H-FCAP FILM 0.47UF 5% 63VDC RADIAL |
2,469 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.295" (7.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
B32654A0224J000CAP FILM 0.22UF 5% 1KVDC RADIAL |
2,287 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
PME271YB5220MR30CAP FILM 0.022UF 20% 1KVDC RAD |
1,026 |
|
Datasheet |
Radial | 0.022 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
R75PR4100AA30KCAP FILM 1UF 10% 630VDC RADIAL |
11,168 |
|
Datasheet |
Radial | 1 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC237012105CAP FILM 1UF 5% 63VDC RADIAL |
3,633 |
|
Datasheet |
Radial | 1 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
R75RN310050H3JCAP FILM 0.1UF 5% 1.25KVDC RAD |
903 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 11.1 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
