Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R53BN41005000KCAP FILM 1UF 10% 800VDC RADIAL |
633 |
|
Datasheet |
Radial | 1 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.878" (22.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
MKP1837333011CAP FILM 0.033UF 1% 160VDC RAD |
445 |
|
Datasheet |
Radial | 0.033 µF | ±1% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.354" (9.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
C4AQNBU4170M1WJCAP FILM 1.7UF 5% 1KVDC RADIAL |
570 |
|
Datasheet |
Radial | 1.7 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 23.3 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
MKT1813322635GCAP FILM 0.022UF 10% 630VDC AXL |
3,973 |
|
Datasheet |
Axial | 0.022 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.295" Dia x 0.551" L (7.50mm x 14.00mm) | - | PC Pins | - | General Purpose | - | - |
|
B32924C3105K189CAP FILM 1UF 10% 630VDC RADIAL |
3,656 |
|
Datasheet |
Radial | 1 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
B32924C3105M189CAP FILM 1UF 20% 630VDC RADIAL |
3,556 |
|
Datasheet |
Radial | 1 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKP1837347161GCAP FILM 0.047UF 1% 160VDC RAD |
355 |
|
Datasheet |
Radial | 0.047 µF | ±1% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.354" (9.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
SMDTC04100QB00MP00CAP FILM 1UF 20% 40VAC 2220 |
9,236 |
|
Datasheet |
2220 (5750 Metric) | 1 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.201" W (5.70mm x 5.10mm) | 0.189" (4.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
BFC247076104CAP FILM 0.1UF 5% 63VDC RADIAL |
7,032 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | Long Life |
|
B32672P4205K000CAP FILM 2UF 10% 450VDC RADIAL |
5,786 |
|
Datasheet |
Radial | 2 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
|
6PSD30CAP FILM 3000PF 10% 600VDC RAD |
931 |
|
Datasheet |
Radial | 3000 pF | ±10% | 200V | 600V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.350" Dia x 0.701" L (8.90mm x 17.80mm) | 0.587" (14.90mm) | PC Pins | 0.500" (12.70mm) | Audio | - | - |
|
BFC237341105CAP FILM 1UF 10% 250VDC RADIAL |
2,125 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | Long Life |
|
R71VN42204030KCAP FILM 2.2UF 10% 520VDC RADIAL |
660 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 250V | 520V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|

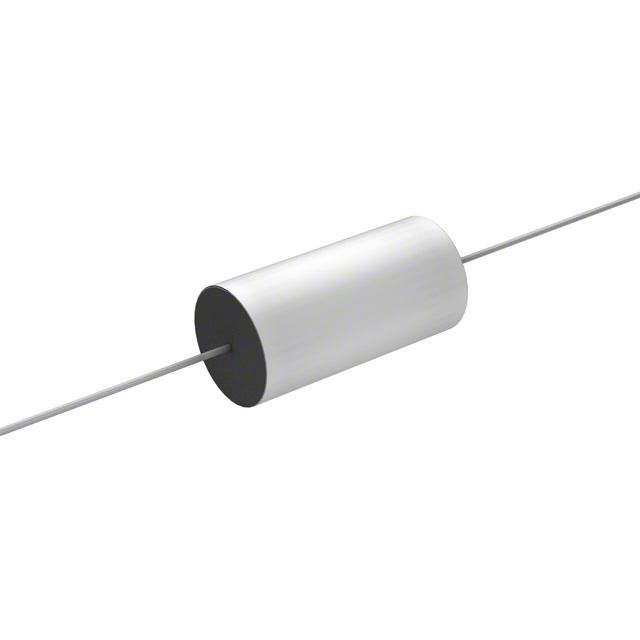

WMF4S47K-FCAP FILM 0.047UF 10% 400VDC AXIA |
2,150 |
|
Datasheet |
Axial | 0.047 µF | ±10% | - | 400V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.433" Dia x 0.874" L (11.00mm x 22.20mm) | - | PC Pins | - | General Purpose | - | - |
|
B32522C0475K000CAP FILM 4.7UF 10% 63VDC RADIAL |
1,994 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
PWS1632330KGCAP FILM 0.033UF 10% 630VDC AXL |
733 |
|
Datasheet |
Axial | 0.033 µF | ±10% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" Dia x 0.748" L (10.00mm x 19.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
334MPW630KCAP FILM 0.33UF 10% 630VDC AXIAL |
4,623 |
|
Datasheet |
Axial | 0.33 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 536 mOhms | -55°C ~ 105°C | Through Hole | 0.610" Dia x 1.339" L (15.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
R46KN422040P0MCAP FILM 2.2UF 20% 560VDC RADIAL |
1,547 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PME271Y547MR30CAP FILM 0.047UF 20% 1KVDC RAD |
894 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | Y2 | - |
|
150472K630BBCAP FILM 4700PF 10% 630VDC AXIAL |
2,982 |
|
Datasheet |
Axial | 4700 pF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
