Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
105MWR250KCAP FILM 1UF 10% 250VDC AXIAL |
2,558 |
|
Datasheet |
Axial | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | 1.415 Ohms | -40°C ~ 105°C | Through Hole | 0.413" Dia x 1.063" L (10.50mm x 27.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
MKS2C043301K00MSSDCAP FILM 3.3UF 20% 63VDC RADIAL |
1,648 |
|
Datasheet |
Radial | 3.3 µF | ±20% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
R413N310040M1MCAP FILM 0.1UF 20% 1KVDC RADIAL |
292 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|

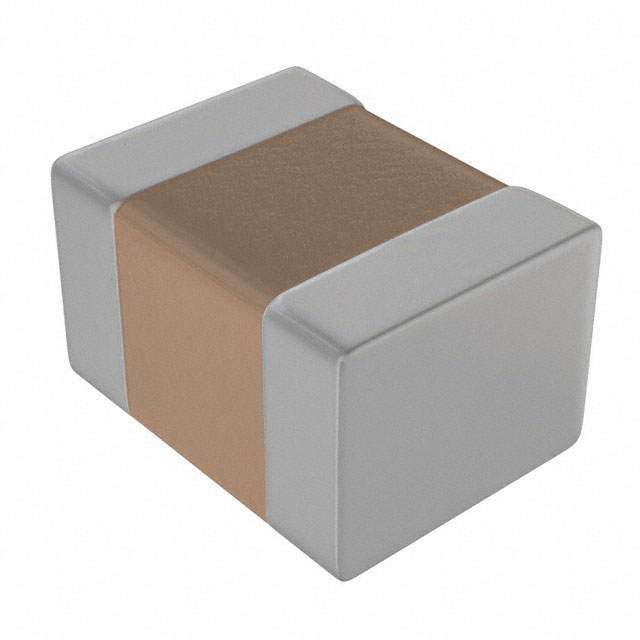

LDBAB3100GC5N0CAP FILM 0.1UF 2% 16VDC 1210 |
32,717 |
|
Datasheet |
1210 (3225 Metric) | 0.1 µF | ±2% | - | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.079" (2.00mm) | Solder Pads | - | General Purpose | - | - |
|

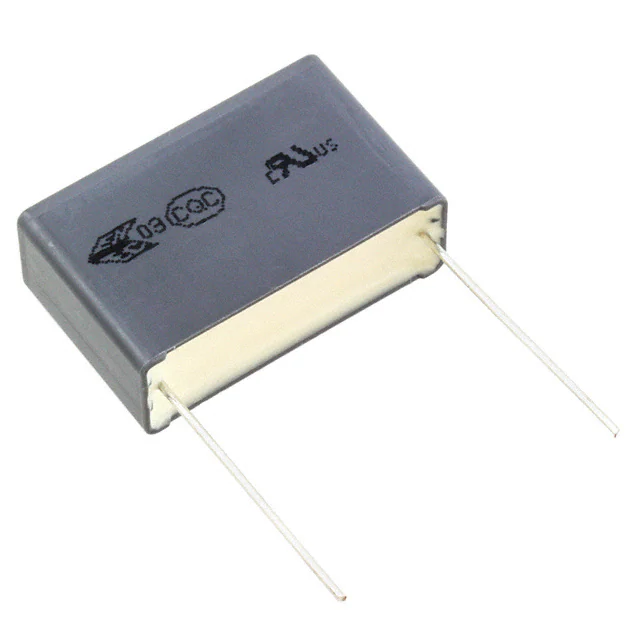

R46KR410050M1KCAP FILM 1UF 10% 560VDC RADIAL |
21,510 |
|
Datasheet |
Radial | 1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC237524511CAP FILM 510PF 5% 1KVDC RADIAL |
1,643 |
|
Datasheet |
Radial | 510 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.571" L x 0.217" W (14.50mm x 5.50mm) | 0.532" (13.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
472MPW630KCAP FILM 4700PF 10% 630VDC AXIAL |
1,222 |
|
Datasheet |
Axial | 4700 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 37.625 Ohms | -55°C ~ 105°C | Through Hole | 0.236" Dia x 0.571" L (6.00mm x 14.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
|
R46KR410050M1MCAP FILM 1UF 20% 560VDC RADIAL |
834 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-E4105JFCAP FILM 1UF 5% 400VDC RADIAL |
403 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
BFC233824104CAP FILM 0.1UF 20% 630VDC RADIAL |
8,141 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
332MPW400KCAP FILM 3300PF 10% 400VDC AXIAL |
4,684 |
|
Datasheet |
Axial | 3300 pF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.256" Dia x 0.571" L (6.50mm x 14.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
BFC237525201CAP FILM 200PF 3.5% 1KVDC RADIAL |
1,421 |
|
Datasheet |
Radial | 200 pF | ±3.5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.571" L x 0.217" W (14.50mm x 5.50mm) | 0.532" (13.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
|
822MPW400KCAP FILM 8200PF 10% 400VDC AXIAL |
772 |
|
Datasheet |
Axial | 8200 pF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.256" Dia x 0.571" L (6.50mm x 14.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
ECQ-E1475JFCAP FILM 4.7UF 5% 100VDC RADIAL |
685 |
|
Datasheet |
Radial | 4.7 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.295" W (26.00mm x 7.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R60MR4100AA30KCAP FILM 1UF 10% 400VDC RAD |
615 |
|
Datasheet |
Radial | 1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECQ-E2475JFCAP FILM 4.7UF 5% 250VDC RADIAL |
343 |
|
Datasheet |
Radial | 4.7 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
B32912A5473M000CAP FILM 0.047UF 20% 1KVDC RAD |
264 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
PME261JB5100KR30CAP FILM 10000PF 10% 1KVDC RAD |
185 |
|
Datasheet |
Radial | 10000 pF | ±10% | 500V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.205" W (18.50mm x 5.20mm) | 0.413" (10.50mm) | PC Pins | 0.598" (15.20mm) | General Purpose | - | - |
|
DME6P1K-FCAP FILM 0.1UF 10% 630VDC RADIAL |
22,183 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32521C0335J000CAP FILM 3.3UF 5% 63VDC RADIAL |
11,096 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
