Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

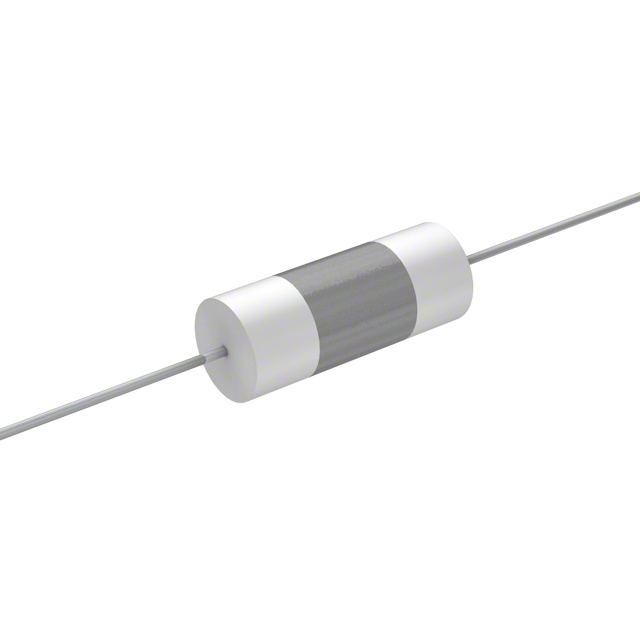

150222J630BBCAP FILM 2200PF 5% 630VDC AXIAL |
1,067 |
|
Datasheet |
Axial | 2200 pF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.236" Dia x 0.650" L (6.00mm x 16.50mm) | - | PC Pins | - | General Purpose | - | - |
|
104MWR102KCAP FILM 0.1UF 10% 1KVDC AXIAL |
1,045 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | 14.147 Ohms | -40°C ~ 105°C | Through Hole | 0.472" Dia x 1.142" L (12.00mm x 29.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
R71PI415050H6KFILM, RADIAL, PULSE, SINGLE META |
749 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 27 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|

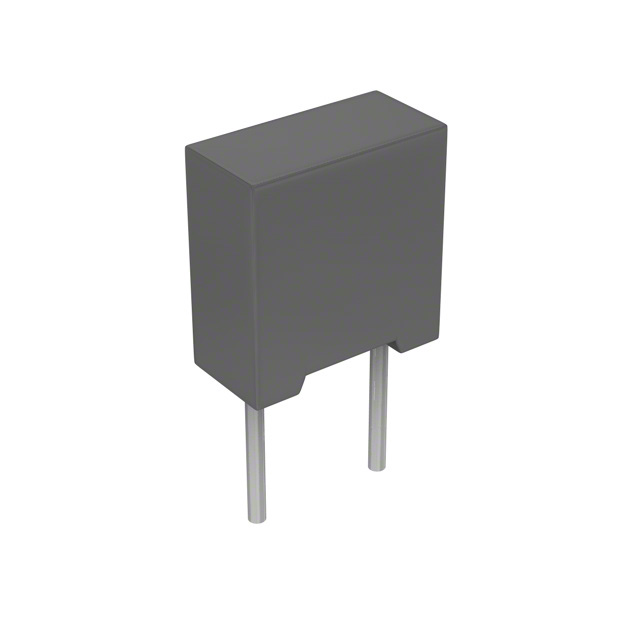

168224J63C-FCAP FILM 0.22UF 5% 63VDC RADIAL |
647 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.295" (7.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
224MWR630KCAP FILM 0.22UF 10% 630VDC AXIAL |
478 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" Dia x 1.063" L (12.50mm x 27.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
PME271Y515MR30CAP FILM 0.015UF 20% 1KVDC RAD |
10,210 |
|
Datasheet |
Radial | 0.015 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.433" (11.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
158X104KCAP FILM 0.1UF 10% 275VAC RADIAL |
9,921 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.669" L x 0.315" W (17.00mm x 8.00mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
PME271Y510MR06CAP FILM 10000PF 20% 1KVDC RAD |
2,392 |
|
Datasheet |
Radial | 10000 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.205" W (18.50mm x 5.20mm) | 0.413" (10.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
B32933B3474K189CAP FILM 0.47UF 10% 305VAC RAD |
2,262 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
BFC237021474CAP FILM 0.47UF 10% 100VDC RAD |
2,094 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
|
PME271M510MR30CAP FILM 10000PF 20% 275VAC RAD |
1,988 |
|
Datasheet |
Radial | 10000 pF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.205" W (18.50mm x 5.20mm) | 0.413" (10.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
 Series Straight 18x10.jpg)
|
ECW-F2W155JACAP FILM 1.5UF 5% 450VDC RADIAL |
60,915 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740" L x 0.421" W (18.80mm x 10.70mm) | 0.681" (17.30mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32653A7104K000CAP FILM 0.1UF 10% 1.25KVDC RAD |
17,679 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|

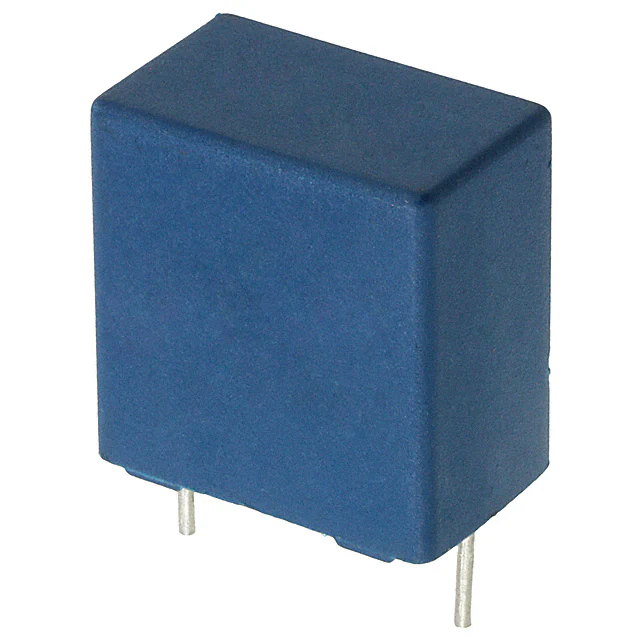

B32022A3823M000CAP FILM 0.082UF 20% 1.5KVDC RAD |
8,271 |
|
Datasheet |
Radial | 0.082 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
PME271M547MR04CAP FILM 0.047UF 20% 630VDC RAD |
5,351 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
PME264NB5100MR30CAP FILM 10000PF 20% 660VAC RAD |
1,517 |
|
Datasheet |
Radial | 10000 pF | ±20% | 660V | - | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
P295BE471M500ACAP FILM 470PF 20% 500VAC RADIAL |
1,382 |
|
Datasheet |
Radial | 470 pF | ±20% | 500V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
|
154MWR630KCAP FILM 0.15UF 10% 630VDC AXIAL |
583 |
|
Datasheet |
Axial | 0.15 µF | ±10% | 220V | 630V | Polyester, Metallized | 9.431 Ohms | -40°C ~ 105°C | Through Hole | 0.413" Dia x 1.142" L (10.50mm x 29.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
ECW-U1104KC9CAP FILM 0.1UF 10% 100VDC 2416 |
9,660 |
|
Datasheet |
2416 (6041 Metric) | 0.1 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.079" (2.00mm) | Solder Pads | - | General Purpose | - | - |
|
R413N310000M1MCAP FILM 0.1UF 20% 1KVDC RADIAL |
5,768 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
