Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-H6104HCCAP FILM 0.1UF 3% 630VDC RADIAL |
123 |
|
Datasheet |
Radial | 0.1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.339" W (20.70mm x 8.60mm) | 0.591" (15.00mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
SMDTC03470TA00KQ00CAP FILM 0.47UF 10% 40VAC 2824 |
2,378 |
|
Datasheet |
2824 (7260 Metric) | 0.47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.130" (3.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
LDEDB3100JA0N00CAP FILM 0.1UF 5% 63VDC 1210 |
19,231 |
|
Datasheet |
1210 (3225 Metric) | 0.1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.083" (2.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
474MKP275KCAP FILM 0.47UF 10% 310VAC RAD |
3,169 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.236" W (31.00mm x 6.00mm) | 0.543" (13.80mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
B32560J0225K000CAP FILM 2.2UF 10% 63VDC 2DIP |
1,001 |
|
Datasheet |
2-DIP | 2.2 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.354" L x 0.256" W (9.00mm x 6.50mm) | 0.323" (8.20mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
|
MKT1813347405CAP FILM 0.047UF 10% 400VDC AXL |
522 |
|
Datasheet |
Axial | 0.047 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.276" Dia x 0.551" L (7.00mm x 14.00mm) | - | PC Pins | - | General Purpose | - | - |
|
MKP4O132205I00KSSDCAP FILM 0.22UF 10% 1KVDC RAD |
10,672 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
PFR5472F63J11L4BULKCAP FILM 4700PF 1% 63VDC RADIAL |
3,185 |
|
Datasheet |
Radial | 4700 pF | ±1% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
224MPW630KCAP FILM 0.22UF 10% 630VDC AXIAL |
1,339 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 804 mOhms | -55°C ~ 105°C | Through Hole | 0.492" Dia x 1.339" L (12.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
BFC237524101CAP FILM 100PF 5% 1KVDC RADIAL |
1,114 |
|
Datasheet |
Radial | 100 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.571" L x 0.197" W (14.50mm x 5.00mm) | 0.532" (13.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
MKP1J031005D00JSSDCAP FILM 0.1UF 5% 630VDC RAD |
736 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
-2,80mm.jpg)
|
CB037D0224JBACAP FILM 0.22UF 5% 63VDC 1812 |
7,077 |
|
Datasheet |
1812 (4532 Metric) | 0.22 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-F6433HLCAP FILM 0.043UF 3% 630VDC RAD |
6,546 |
|
Datasheet |
Radial | 0.043 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.311" W (13.00mm x 7.90mm) | 0.480" (12.20mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
B32033A4473M000CAP FILM 0.047UF 20% 1KVDC RAD |
2,595 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|

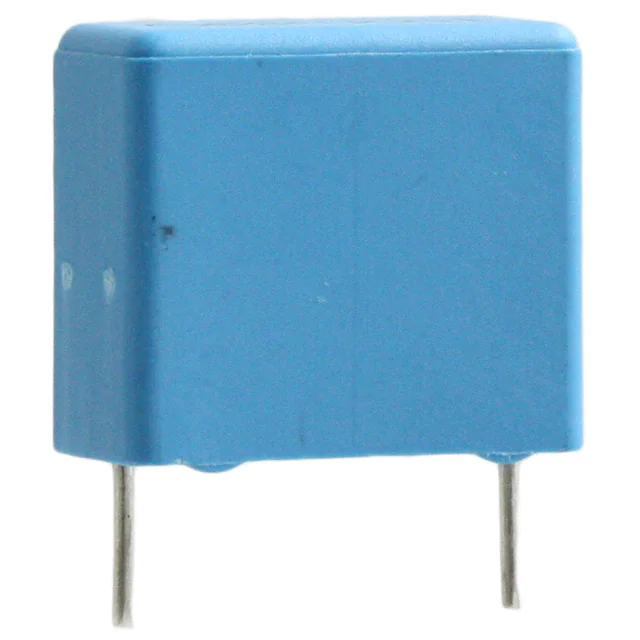

PHE450MB6100JR06CAP FILM 0.1UF 5% 630VDC RADIAL |
1,034 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
104MPW400KCAP FILM 0.1UF 10% 400VDC AXIAL |
705 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | 1.768 Ohms | -55°C ~ 105°C | Through Hole | 0.335" Dia x 0.807" L (8.50mm x 20.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
ECQ-UAAF155KCAP FILM 1.5UF 10% 275VAC RADIAL |
689 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.472" W (31.00mm x 12.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
QXP2J104KRPTCAP FILM 0.1UF 10% 630VDC RADIAL |
2,998 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 200V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.827" L x 0.323" W (21.00mm x 8.20mm) | 0.626" (15.90mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
B32912B3224M189CAP FILM 0.22UF 20% 760VDC RAD |
1,437 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
BFC237524241CAP FILM 240PF 5% 1KVDC RADIAL |
1,156 |
|
Datasheet |
Radial | 240 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.571" L x 0.217" W (14.50mm x 5.50mm) | 0.532" (13.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
