Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFC241674704CAP FILM 0.47UF 2% 63VDC RADIAL |
2,066 |
|
Datasheet |
Radial | 0.47 µF | ±2% | 25V | 63V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.276" W (17.50mm x 7.00mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
MKP1F034705D00JSSDCAP FILM 0.47UF 5% 250VDC RAD |
1,204 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
ECW-F6304JLCAP FILM 0.3UF 5% 630VDC RADIAL |
993 |
|
Datasheet |
Radial | 0.3 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.429" W (20.50mm x 10.90mm) | 0.736" (18.70mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
168104J50A-FCAP FILM 0.1UF 5% 50VDC RADIAL |
13,356 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
PFR5103J63J12L4BULKCAP FILM 10000PF 5% 63VDC RADIAL |
7,825 |
|
Datasheet |
Radial | 10000 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R82CC4220DQ70KCAP FILM 2.2UF 10% 50VDC RADIAL |
4,096 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
MKP2D034701M00KSSDCAP FILM 0.47UF 10% 100VDC RAD |
2,261 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.335" W (7.20mm x 8.50mm) | 0.551" (14.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
|
168103J100A-FCAP FILM 10000PF 5% 100VDC RAD |
2,213 |
|
Datasheet |
Radial | 10000 pF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
B32923C3155M189CAP FILM 1.5UF 20% 630VDC RADIAL |
275,391 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
B32672P4105K000CAP FILM 1UF 10% 450VDC RADIAL |
6,862 |
|
Datasheet |
Radial | 1 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
|
MKS2B043301H00KI00CAP FILM 3.3UF 10% 50VDC RADIAL |
2,392 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.453" (11.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
MKS4D042204F00KSSDCAP FILM 2.2UF 10% 100VDC RADIAL |
1,447 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32522E6105K000CAP FILM 1UF 10% 400V RADIAL |
1,214 |
|
Datasheet |
Radial | 1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
ECQ-E6474JFCAP FILM 0.47UF 5% 630VDC RADIAL |
1,000 |
|
Datasheet |
Radial | 0.47 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.366" W (26.00mm x 9.30mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R76TN24704040JCAP FILM 0.047UF 5% 1.6KVDC RAD |
10,920 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32653A6334J000CAP FILM 0.33UF 5% 630VDC RADIAL |
2,160 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
332MPW630KCAP FILM 3300PF 10% 630VDC AXIAL |
1,473 |
|
Datasheet |
Axial | 3300 pF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.256" Dia x 0.571" L (6.50mm x 14.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
ECW-F6203JLCAP FILM 0.02UF 5% 630VDC RADIAL |
963 |
|
Datasheet |
Radial | 0.02 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.256" W (12.50mm x 6.50mm) | 0.425" (10.80mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|

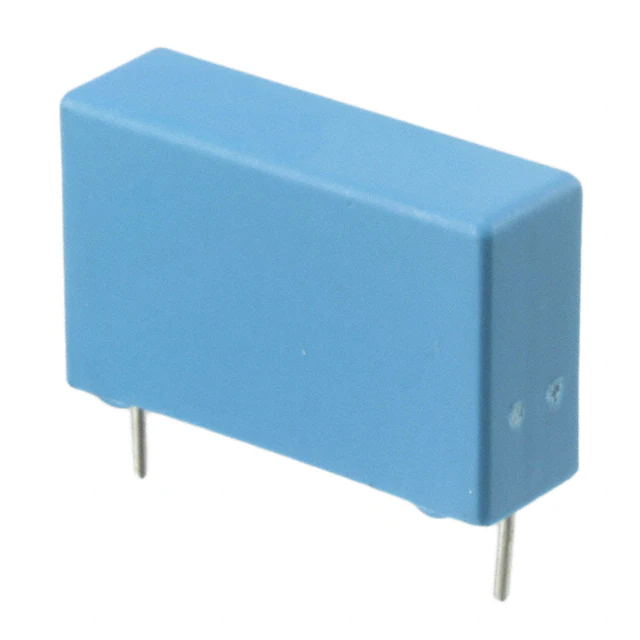

PHE840MY6470MD14R06L2CAP FILM 0.47UF 20% 760VDC RAD |
641 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
333MPW630KCAP FILM 0.03UF 10% 630VDC AXIAL |
258 |
|
Datasheet |
Axial | 0.03 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.335" Dia x 0.807" L (8.50mm x 20.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
