Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKS2B042201F00KF00CAP FILM 2.2UF 10% 50VDC RADIAL |
3,159 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.394" (10.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
PHE448SB3270JR06CAP FILM 270PF 5% 2KVDC RADIAL |
1,344 |
|
Datasheet |
Radial | 270 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-F6103JLCAP FILM 10000PF 5% 630VDC RAD |
1,323 |
|
Datasheet |
Radial | 10000 pF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.205" W (12.50mm x 5.20mm) | 0.374" (9.50mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECW-HC3F103JDCAP FILM 10000PF 5% 3KVDC RADIAL |
1,230 |
|
Datasheet |
Radial | 10000 pF | ±5% | 1060V (1.06kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.016" L x 0.323" W (25.80mm x 8.20mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|

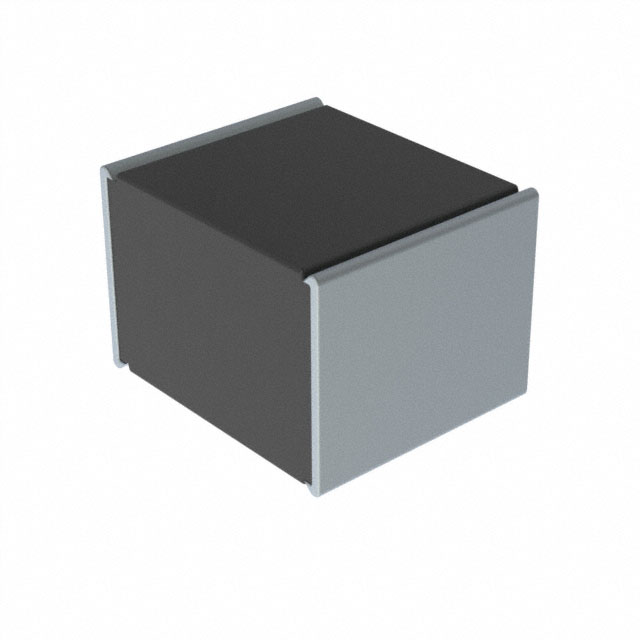

SMDTF03220TB00MQ00CAP FILM 0.22UF 20% 160VAC 2824 |
2,150 |
|
Datasheet |
2824 (7260 Metric) | 0.22 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.209" (5.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|

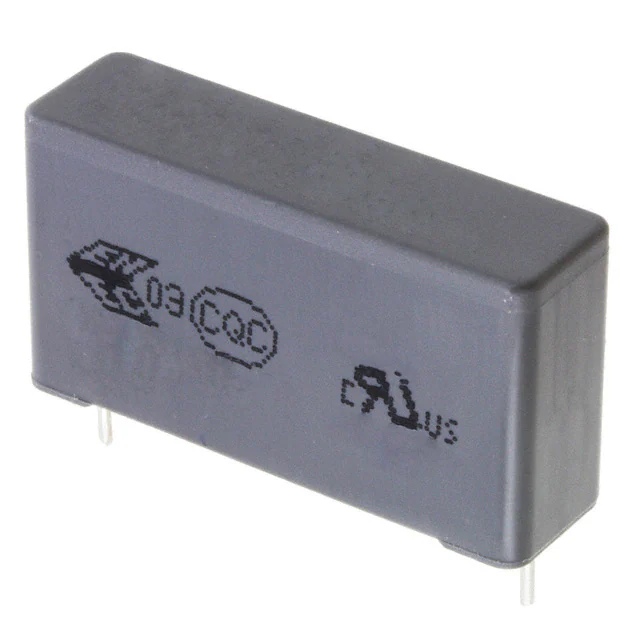

R46KR34700001MCAP FILM 0.47UF 20% 560VDC RAD |
2,271 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R533N368050P0KCAP FILM 0.68UF 10% 630VDC RAD |
1,574 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.642" (16.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
BFC233820103CAP FILM 10000PF 20% 630VDC RAD |
10,289 |
|
Datasheet |
Radial | 10000 pF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression | X2 | - |
|
155MKP275KCAP FILM 1.5UF 10% 310VAC RADIAL |
6,846 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.394" W (31.00mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
168104K63A-FCAP FILM 0.1UF 10% 63VDC RADIAL |
3,304 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
LDECB3100JA0N00CAP FILM 0.1UF 5% 50VDC 1210 |
14,115 |
|
Datasheet |
1210 (3225 Metric) | 0.1 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.083" (2.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
A50MH3100AA60KCAP FILM 0.1UF 10% 400VDC AXIAL |
4,937 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.256" Dia x 0.551" L (6.50mm x 14.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
B32529D0225J289CAP FILM 2.2UF 5% 63VDC RADIAL |
4,340 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
MKS2B041501E00JSSDCAP FILM 1.5UF 5% 50VDC RADIAL |
3,609 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.374" (9.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
PFR5561F63J11L4BULKCAP FILM 560PF 1% 63VDC RADIAL |
3,553 |
|
Datasheet |
Radial | 560 pF | ±1% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
SMDTF03220TB00KQ00CAP FILM 0.22UF 10% 160VAC 2824 |
1,912 |
|
Datasheet |
2824 (7260 Metric) | 0.22 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.209" (5.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
B32522C1225K000CAP FILM 2.2UF 10% 100VDC RADIAL |
12,108 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
MKS0B041000F00KSC9CAP FILM 1UF 10% 50VDC RAD |
9,489 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.217" W (4.60mm x 5.50mm) | 0.394" (10.00mm) | PC Pins | 0.098" (2.50mm) | General Purpose | - | - |
|
|
168104J100H-FCAP FILM 0.1UF 5% 100VDC RADIAL |
8,486 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|

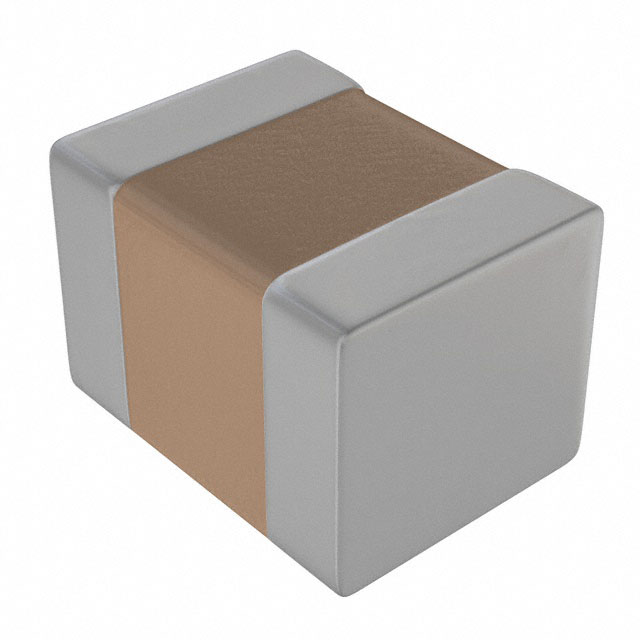

LDBCB2470JC5N0CAP FILM 0.047UF 5% 50VDC 1210 |
2,491 |
|
Datasheet |
1210 (3225 Metric) | 0.047 µF | ±5% | 40V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
