Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKS2B043301H00MSSDCAP FILM 3.3UF 20% 50VDC RADIAL |
2,520 |
|
Datasheet |
Radial | 3.3 µF | ±20% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.453" (11.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B81123C1472M289CAP FILM 4700PF 20% 500VAC RAD |
2,445 |
|
Datasheet |
Radial | 4700 pF | ±20% | 500V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | 85C/85% Humidity |
|

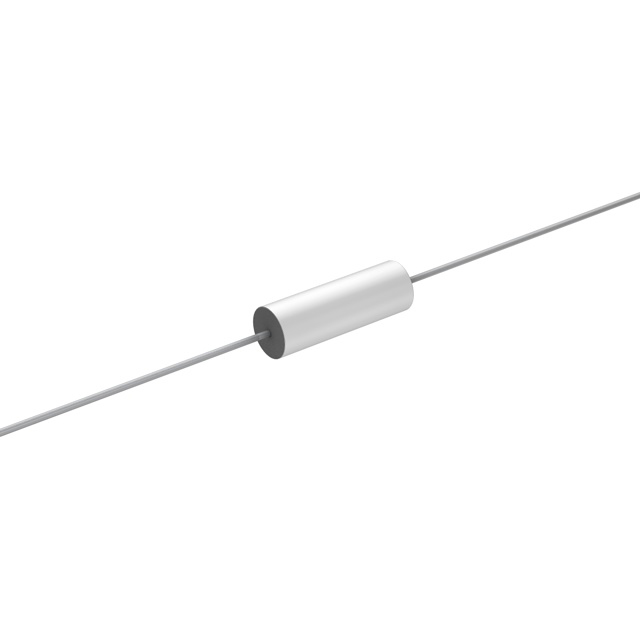

WMF1D5K-FCAP FILM 5000PF 10% 100VDC AXIAL |
1,694 |
|
Datasheet |
Axial | 5000 pF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.189" Dia x 0.563" L (4.80mm x 14.30mm) | - | PC Pins | - | General Purpose | - | - |
|
FKP1Y011505D00JSSDCAP FILM 1500PF 5% 6KVDC RAD |
1,656 |
|
Datasheet |
Radial | 1500 pF | ±5% | 700V | 6000V (6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
MKS2C042201K00JC00CAP FILM 2.2UF 5% 63VDC RADIAL |
1,423 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
MKS2C042201K00JO00CAP FILM 2.2UF 5% 63VDC RADIAL |
809 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
MKP1837410161FCAP FILM 0.1UF 1% 160VDC RADIAL |
6,228 |
|
Datasheet |
Radial | 0.1 µF | ±1% | 100V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.354" L x 0.295" W (9.00mm x 7.50mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching | - | - |
|
R60DF4330506AJCAP FILM 3.3UF 5% 63VDC RADIAL |
1,342 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
-2,80mm.jpg)
|
CB037E0104JBACAP FILM 0.1UF 5% 100VDC 1812 |
3,433 |
|
Datasheet |
1812 (4532 Metric) | 0.1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
MKS4J032205B00KSSDCAP FILM 0.22UF 10% 630VDC RAD |
1,039 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 400V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R463R410000M1KCAP FILM 1UF 10% 630VDC RADIAL |
563 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
B32562J1225K000CAP FILM 2.2UF 10% 100VDC 2DIP |
13,651 |
|
Datasheet |
2-DIP | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | 0.315" (8.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32022B3473K000CAP FILM 0.047UF 10% 1.5KVDC RAD |
2,000 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
MKP1839410254CAP FILM 0.1UF 5% 250VDC AXIAL |
527 |
|
Datasheet |
Axial | 0.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.295" Dia x 0.551" L (7.50mm x 14.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
F863DS105K310RCAP FILM 1UF 10% 630VDC RADIAL |
339 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECQ-E1335JFCAP FILM 3.3UF 5% 100VDC RADIAL |
255 |
|
Datasheet |
Radial | 3.3 µF | ±5% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32912B3334M000CAP FILM 0.33UF 20% 760VDC RAD |
8,011 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
MMK5474K50J01L4BULKCAP FILM 0.47UF 10% 50VDC RADIAL |
7,487 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
BFC233920474CAP FILM 0.47UF 20% 630VDC RAD |
6,869 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
P295BE102M500ACAP FILM 1000PF 20% 500VAC RAD |
2,018 |
|
Datasheet |
Radial | 1000 pF | ±20% | 500V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
