Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32529D5335K000CAP FILM 3.3UF 10% 50VDC RADIAL |
1,159 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 32V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.307" L x 0.307" W (7.80mm x 7.80mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
R82CC4220Z370KCAP FILM 2.2UF 10% 50VDC RADIAL |
943 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
PFR5102F100J11L4BULKCAP FILM 1000PF 1% 100VDC RADIAL |
301 |
|
Datasheet |
Radial | 1000 pF | ±1% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-HA3C473JCAP FILM 0.047UF 5% 1.6KVDC RAD |
106 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 700V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.811" L x 0.528" W (20.60mm x 13.40mm) | 0.756" (19.20mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
B32522C1225J000CAP FILM 2.2UF 5% 100VDC RADIAL |
31,789 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.709" L x 0.276" W (18.00mm x 7.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
105MMR400KCAP FILM 1UF 10% 400VDC RADIAL |
10,093 |
|
Datasheet |
Radial | 1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
F17724102000CAP FILM 0.1UF 10% 630VDC RADIAL |
3,347 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

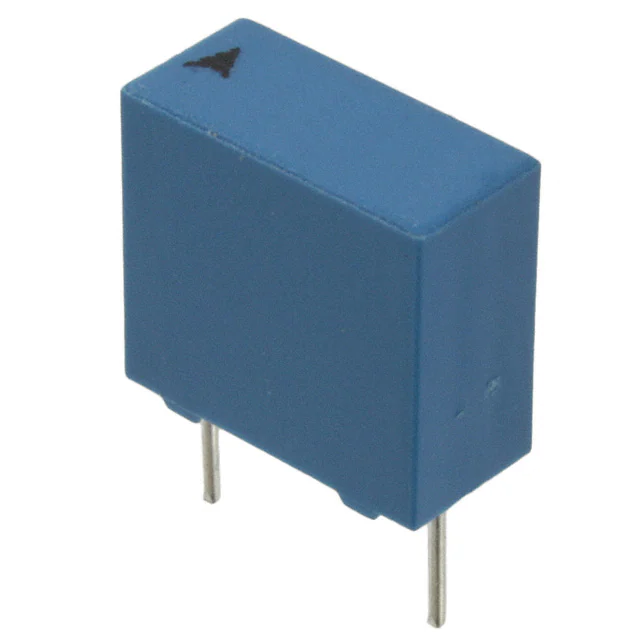

B32671P4474K000CAP FILM 0.47UF 10% 450VDC RAD |
2,696 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.551" (14.00mm) | PC Pins | 0.394" (10.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
224MPW160KCAP FILM 0.22UF 10% 160VDC AXIAL |
2,093 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 90V | 160V | Polypropylene (PP), Metallized | 804 mOhms | -55°C ~ 105°C | Through Hole | 0.315" Dia x 0.571" L (8.00mm x 14.50mm) | - | PC Pins | - | DC Link, DC Filtering | - | Low ESR |
|
104MWR630KCAP FILM 0.1UF 10% 630VDC AXIAL |
226 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 220V | 630V | Polyester, Metallized | 14.147 Ohms | -40°C ~ 105°C | Through Hole | 0.354" Dia x 1.063" L (9.00mm x 27.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
B32922C3684M189CAP FILM 0.68UF 20% 630VDC RAD |
20,549 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32671P4684K000CAP FILM 0.68UF 10% 450VDC RAD |
16,086 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.276" W (13.00mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.394" (10.00mm) | Power Factor Correction (PFC) | AEC-Q200 | - |
|
CB042K0103KBCCAP FILM 10000PF 10% 630VDC 2220 |
12,992 |
|
Datasheet |
2220 (5750 Metric) | 10000 pF | ±10% | 250V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.228" L x 0.197" W (5.80mm x 5.00mm) | 0.110" (2.80mm) | Solder Pads | - | General Purpose | - | Low ESR |
|
|
B32922C3684K189CAP FILM 0.68UF 10% 630VDC RAD |
11,181 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

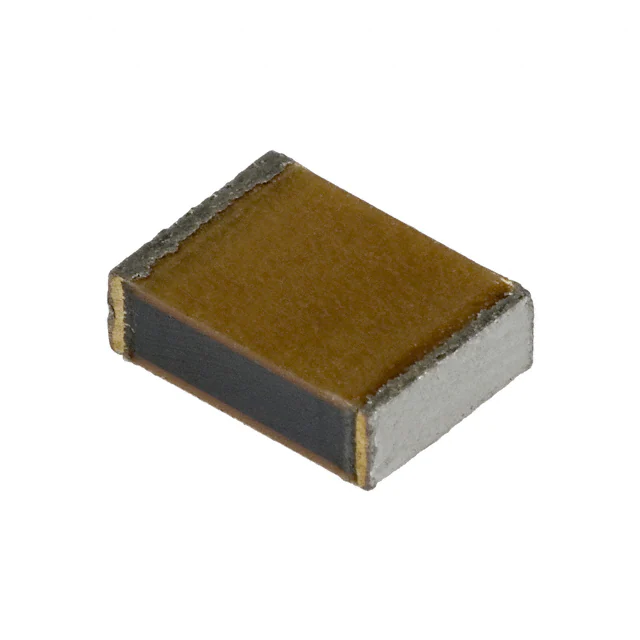

ECH-U1473JC9CAP FILM 0.047UF 5% 100VDC 2416 |
5,255 |
|
Datasheet |
2416 (6041 Metric) | 0.047 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|
334MKP275KCAP FILM 0.33UF 10% 310VAC RAD |
4,949 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.484" (12.30mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
105MWR100KCAP FILM 1UF 10% 100VDC AXIAL |
4,139 |
|
Datasheet |
Axial | 1 µF | ±10% | 63V | 100V | Polyester, Metallized | 1.415 Ohms | -40°C ~ 105°C | Through Hole | 0.374" Dia x 0.748" L (9.50mm x 19.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
LDEDB3100KA0N00CAP FILM 0.1UF 10% 63VDC 1210 |
3,007 |
|
Datasheet |
1210 (3225 Metric) | 0.1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.083" (2.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
224MWR400KCAP FILM 0.22UF 10% 400VDC AXIAL |
2,971 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.335" Dia x 1.063" L (8.50mm x 27.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
R463N410050M1KCAP FILM 1UF 10% 630VDC RADIAL |
2,737 |
|
Datasheet |
Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | - | - | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
