Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQQBW5300A3MJCAP FILM 30UF 5% 1.1KVDC RADIAL |
1,214 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PHE845VW7100MR06L2CAP FILM 1UF 20% 1.5KVDC RADIAL |
1,200 |
|
Datasheet |
Radial | 1 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
B32524Q1476K000CAP FILM 47UF 10% 100VDC RADIAL |
1,069 |
|
Datasheet |
Radial | 47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
942C20P15K-FCAP FILM 0.15UF 10% 2KVDC AXIAL |
124 |
|
Datasheet |
Axial | 0.15 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.161" Dia x 1.811" L (29.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
106PHC400KCAP FILM 10UF 10% 400VDC AXIAL |
12,110 |
|
Datasheet |
Axial | 10 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 1.063" Dia x 2.165" L (27.00mm x 55.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|

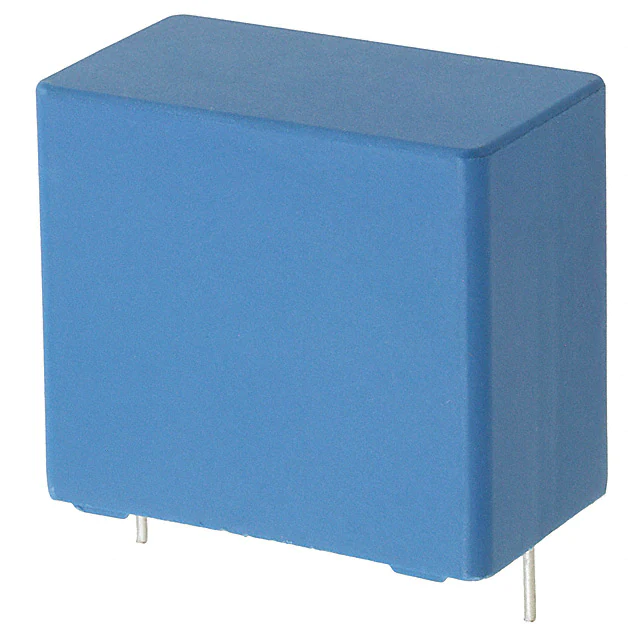

B32524R0476K000CAP FILM 47UF 10% 63VDC RADIAL |
511 |
|
Datasheet |
Radial | 47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
FFB14E0206K--CAP FILM 20UF 10% 100VDC RADIAL |
149 |
|
Datasheet |
Radial | 20 µF | ±10% | 60V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.512" W (31.10mm x 13.00mm) | 0.882" (22.40mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|

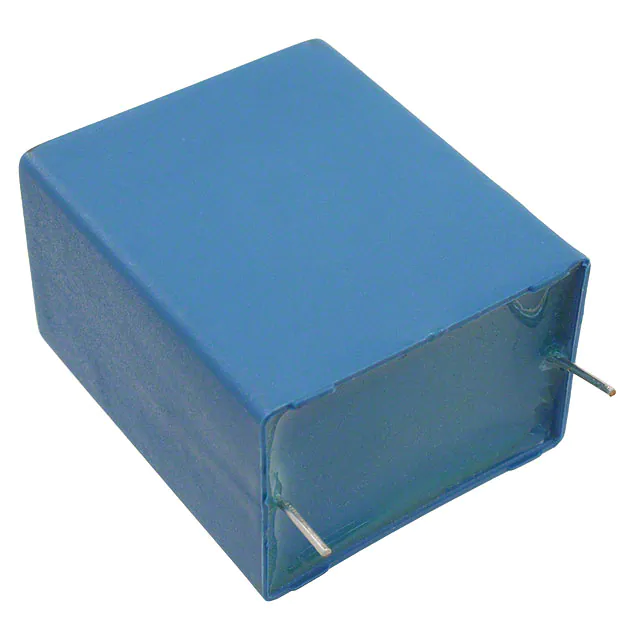

B32524Q1686K000CAP FILM 68UF 10% 100VDC RADIAL |
2,347 |
|
Datasheet |
Radial | 68 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
FFB46C0515K--CAP FILM 5.1UF 10% 900VDC RADIAL |
224 |
|
Datasheet |
Radial | 5.1 µF | ±10% | 150V | 900V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.819" W (31.10mm x 20.80mm) | 1.232" (31.30mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
16MU226MD35750CAP FILM 22UF 20% 16VDC 2220 |
619 |
|
Datasheet |
2220 (5750 Metric) | 22 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.110" (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
35MU106MD35750CAP FILM 10UF 20% 35VDC 2220 |
1,815 |
|
Datasheet |
2220 (5750 Metric) | 10 µF | ±20% | - | 35V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.110" (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
.JPG)
|
105PPB102KCAP FILM 1UF 10% 1KVDC RADIAL |
730 |
|
Datasheet |
Radial | 1 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | - |
|

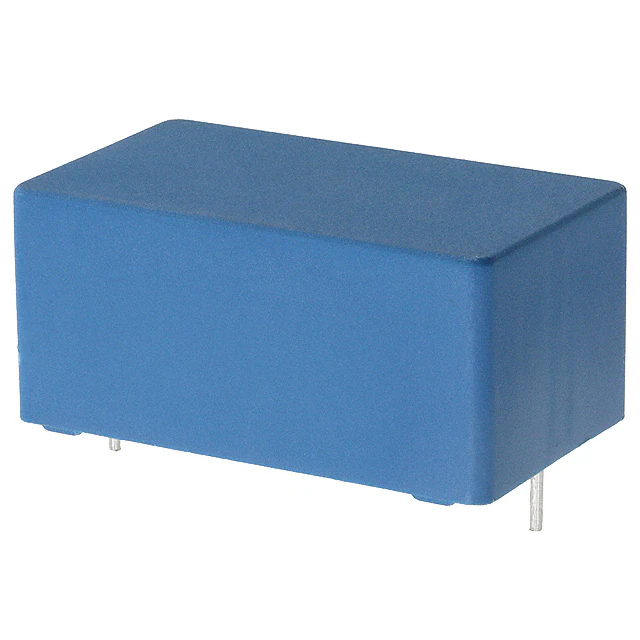

B32526T1476K000CAP FILM 47UF 10% 100VDC RADIAL |
831 |
|
Datasheet |
Radial | 47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
B32678G6256K000CAP FILM 25UF 10% 630VDC RADIAL |
343 |
|
Datasheet |
Radial | 25 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
940C20P47K-FCAP FILM 0.47UF 10% 2KVDC AXIAL |
270 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.260" Dia x 1.811" L (32.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
DCP4L054007ID4KSSDCAP FILM 40UF 10% 800VDC RAD |
1,421 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 3.3 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 1.220" W (41.50mm x 31.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32718H9856K000Film Cap 85uF 900V |
768 |
|
Datasheet |
Radial - 4 Leads | 85 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | Long Life |
|
C4BSPBX4150ZALJCAP FILM 1.5UF 5% 1.2KVDC SCREW |
128 |
|
Datasheet |
Rectangular Box | 1.5 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|

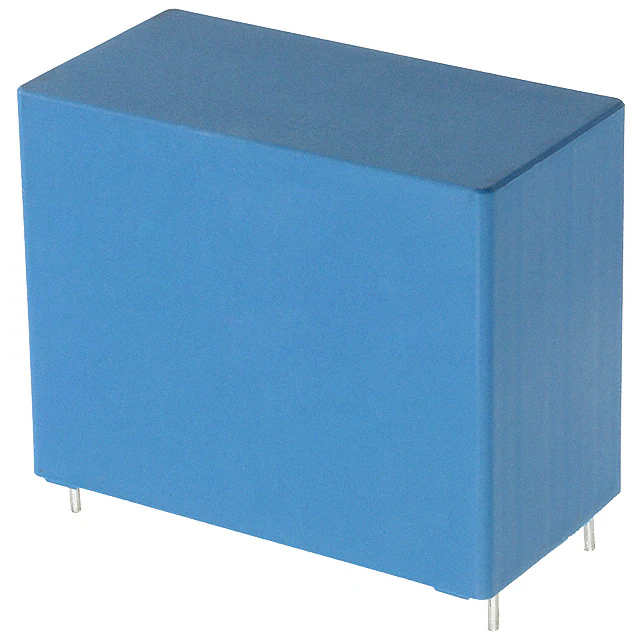

B32778G1206K000CAP FILM 20UF 1.3KVDC RAD 4 LEAD |
498 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 9.7 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32524R0107K000CAP FILM 100UF 10% 63VDC RADIAL |
1,046 |
|
Datasheet |
Radial | 100 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
