Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32524R3106K000CAP FILM 10UF 10% 250VDC RADIAL |
1,352 |
|
Datasheet |
Radial | 10 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|

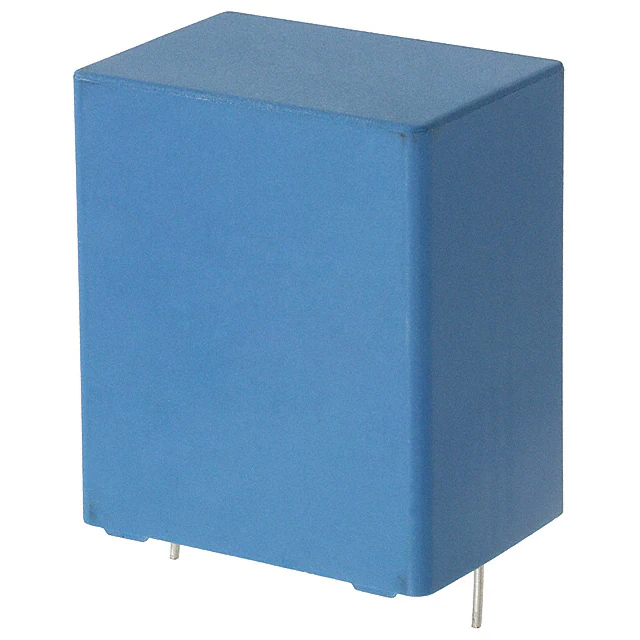

B32924C3565M000CAP FILM 5.6UF 20% 630VDC RADIAL |
4,023 |
|
Datasheet |
Radial | 5.6 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
FKP1Y022207E00KSSDCAP FILM 0.022UF 10% 6KVDC RAD |
919 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 700V | 6000V (6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

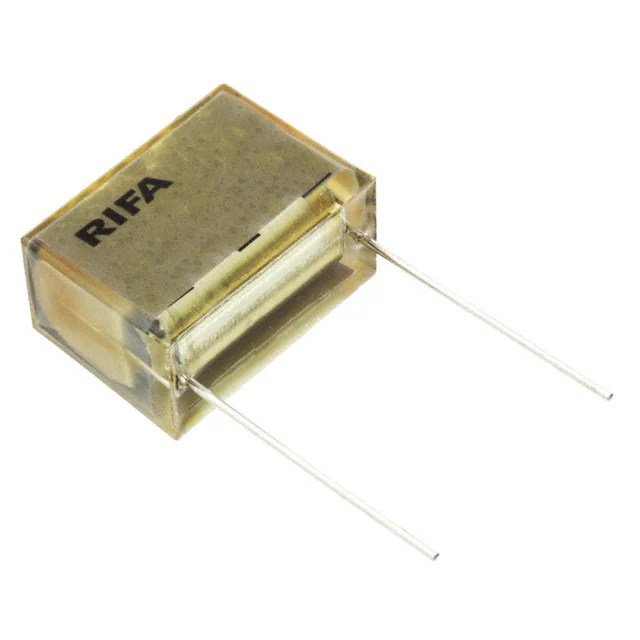

PME271M647KR30CAP FILM 0.47UF 10% 275VAC RAD |
140 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|

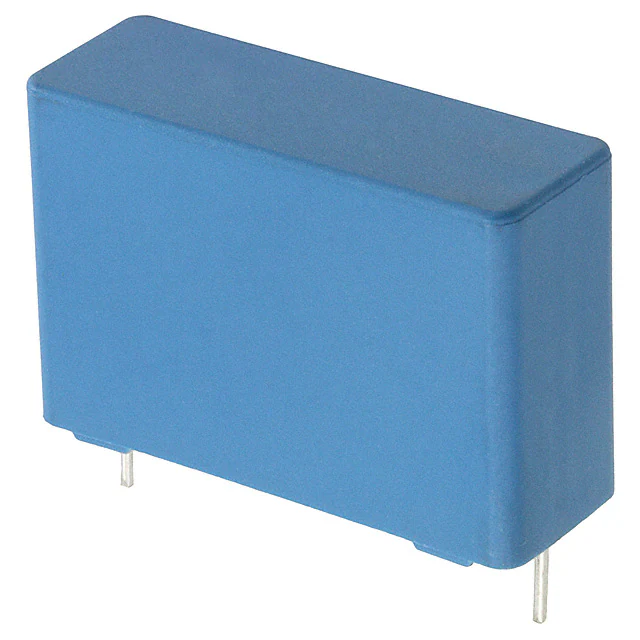

B32774D0205K000CAP FILM 2UF 10% 1.1KVDC RADIAL |
2,760 |
|
Datasheet |
Radial | 2 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 26.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32934B3225K000CAP FILM 2.2UF 10% 305VAC RADIAL |
428 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
B32914A5684M000CAP FILM 0.68UF 20% 1KVDC RADIAL |
740 |
|
Datasheet |
Radial | - | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|

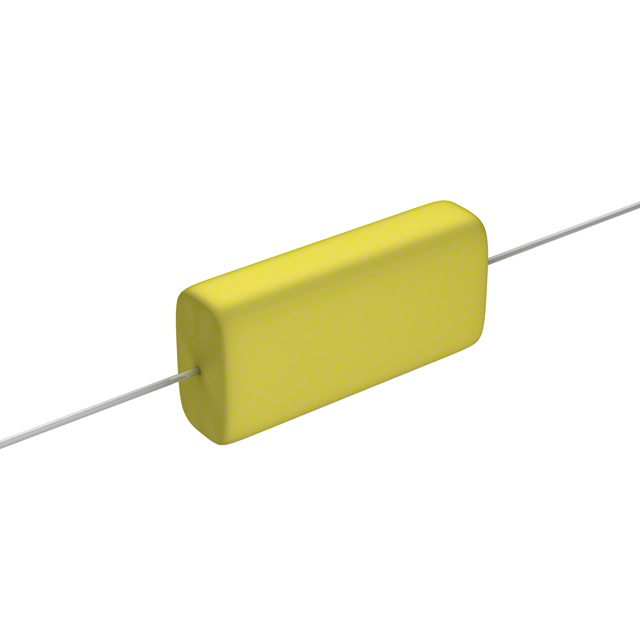

MMP2W1K-FCAP FILM 1UF 10% 250VDC AXIAL |
274 |
|
Datasheet |
Axial | 1 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.531" W, 0.295" T x 1.102" L (13.50mm, 7.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
MKP1848530094K2CAP FILM 3UF 5% 900VDC RADIAL |
3,601 |
|
Datasheet |
Radial | 3 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 29.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
B32523R0226K000CAP FILM 22UF 10% 63VDC RADIAL |
428 |
|
Datasheet |
Radial | 22 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | - | - |
|

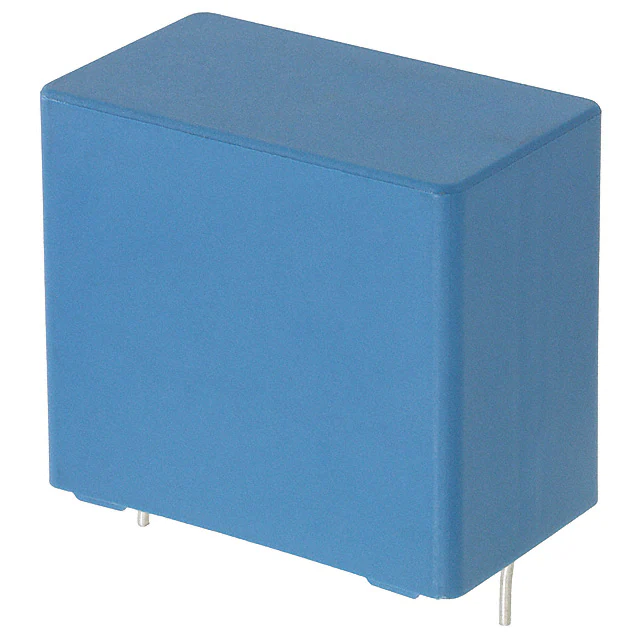

B32774D1305K000CAP FILM 3UF 10% 1.3KVDC RADIAL |
6,013 |
|
Datasheet |
Radial | 3 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 16 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
MKP4O141007E00KSSDCAP FILM 1UF 10% 1KVDC RAD |
783 |
|
Datasheet |
Radial | 1 µF | ±10% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
B32562J1106K000CAP FILM 10UF 10% 100VDC 2DIP |
1,985 |
|
Datasheet |
2-DIP | 10 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | - | - | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
B32926C3685K000CAP FILM 6.8UF 10% 630VDC RADIAL |
4,823 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
PME264NE6100MR30CAP FILM 0.1UF 20% 660VAC RADIAL |
164 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 660V | - | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|
B32676E6475K000CAP FILM 4.7UF 10% 630VDC RADIAL |
973 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.709" W (42.00mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
MKP1848S61070JP2CCAP FILM 10UF 5% 700VDC RADIAL |
647 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 13.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.063" W (42.00mm x 27.00mm) | 0.709" (18.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
BFC233920475CAP FILM 4.7UF 20% 630VDC RADIAL |
1,876 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|

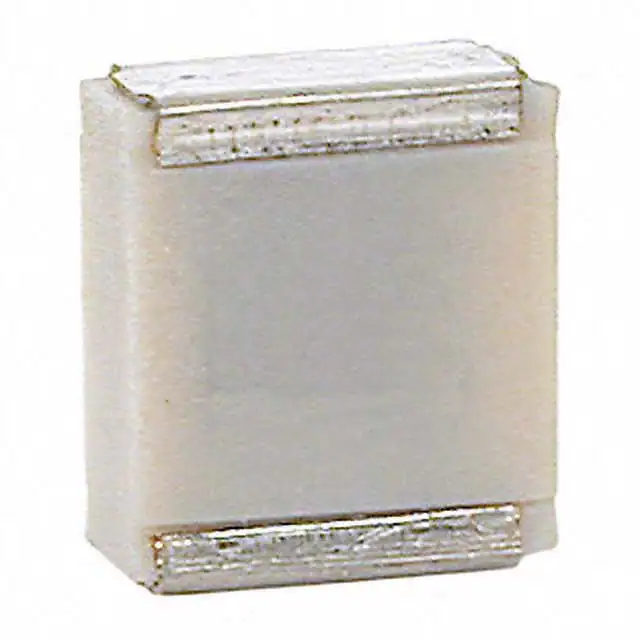

SMC5.7104J50J35TR12CAP FILM 0.1UF 5% 50VDC 2220 |
4,841 |
|
Datasheet |
2220 (5750 Metric) | 0.1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.165" (4.20mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
35MU105MB13225CAP FILM 1UF 20% 35VDC 1210 |
9,495 |
|
Datasheet |
1210 (3225 Metric) | 1 µF | ±20% | - | 35V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
