Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32656A0105K000CAP FILM 1UF 10% 1KVDC RADIAL |
640 |
|
Datasheet |
Radial | 1 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
F340Y251030MPM2T0CAP FILM 1UF 20% 1KVDC RADIAL |
1,182 |
|
Datasheet |
Radial | 1 µF | ±20% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.319" (33.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|

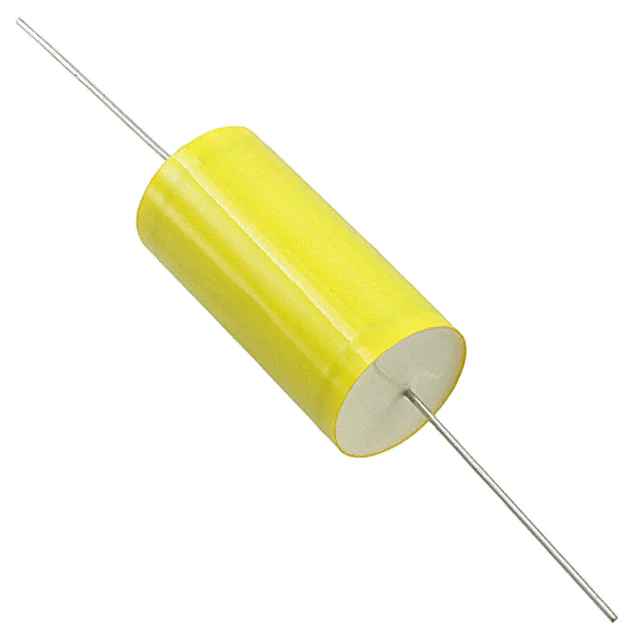

C4CAYUD3100AA1JCAP FILM 0.1UF 5% 3KVDC AXIAL |
467 |
|
Datasheet |
Axial | 0.1 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 12.8 mOhms | -40°C ~ 85°C | Through Hole | 1.063" Dia x 1.732" L (27.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|

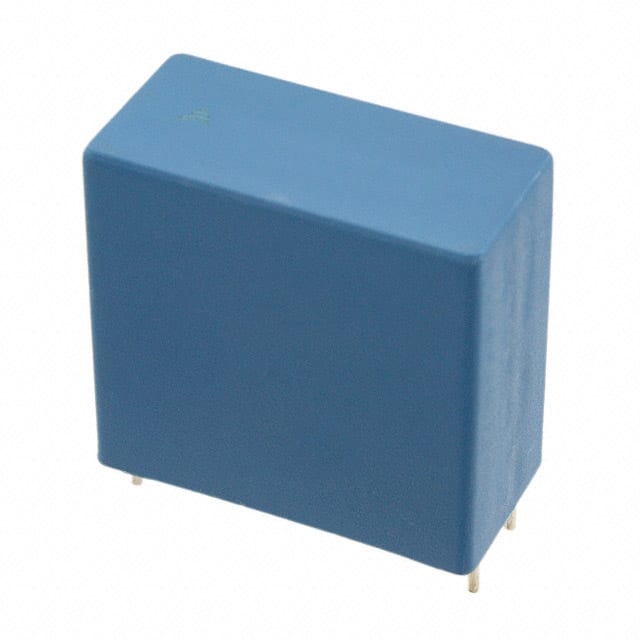

B32776G1805K000CAP FILM 8UF 1.3KVDC RAD 4 LEAD |
4,522 |
|
Datasheet |
Radial - 4 Leads | 8 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 12.1 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
25MU475MC24532CAP FILM 4.7UF 20% 25VDC 1812 |
221 |
|
Datasheet |
1812 (4532 Metric) | 4.7 µF | ±20% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.079" (2.00mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
RA6504K500-FACAP FILM 0.5UF 10% 500VDC RADIAL |
3,948 |
|
Datasheet |
Radial | 0.5 µF | ±10% | 250V | 500V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.449" L x 0.280" W (11.40mm x 7.10mm) | 0.539" (13.70mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - | Low ESR; Low ESL; Long Life |
|
DME1W10K-FCAP FILM 10UF 10% 100VDC RADIAL |
778 |
|
Datasheet |
Radial | 10 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 0.886" (22.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
MKP1848S62010JY5FCAP FILM 20UF 5% 1KVDC RADIAL |
1,322 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 9.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.535" W (57.50mm x 39.00mm) | 0.945" (24.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
715P10458MD3CAP FILM 0.1UF 5% 800VDC RADIAL |
464 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 450V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.669" Dia x 1.650" L (17.00mm x 41.90mm) | 0.980" (24.90mm) | PC Pins | 1.094" (27.80mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
B32926C3106M000CAP FILM 10UF 20% 630VDC RADIAL |
595 |
|
Datasheet |
Radial | 10 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634" L x 1.102" W (41.50mm x 28.00mm) | 1.673" (42.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
35MU475KC44532CAP FILM 4.7UF 10% 35VDC 1812 |
1,464 |
|
Datasheet |
1812 (4532 Metric) | 4.7 µF | ±10% | - | 35V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
DCP4L052007GD4KSSDCAP FILM 20UF 10% 800VDC RADIAL |
756 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
940C16P22K-FCAP FILM 0.22UF 1.6KVDC AXIAL |
970 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 105°C | Through Hole | 1.004" Dia x 1.339" L (25.50mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|

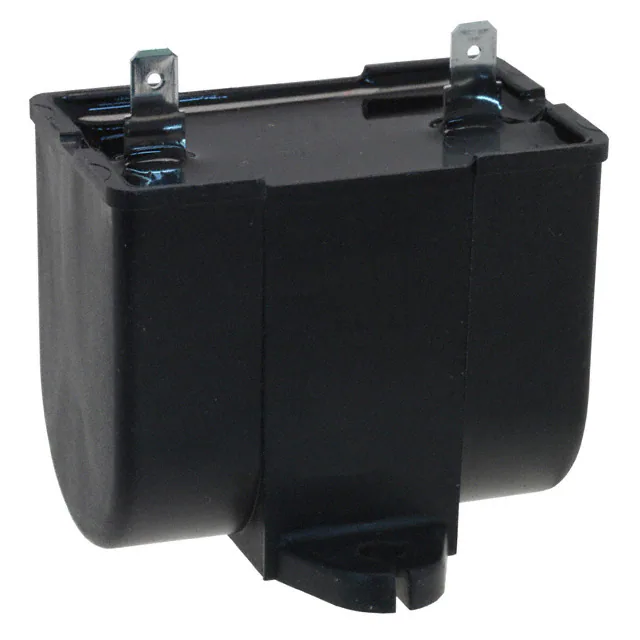

JS251156-BACAP FILM 15UF 10% 250VAC CHAS MT |
381 |
|
Datasheet |
Rectangular Box | 15 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.969" L x 1.201" W (50.00mm x 30.50mm) | 1.654" (42.00mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|

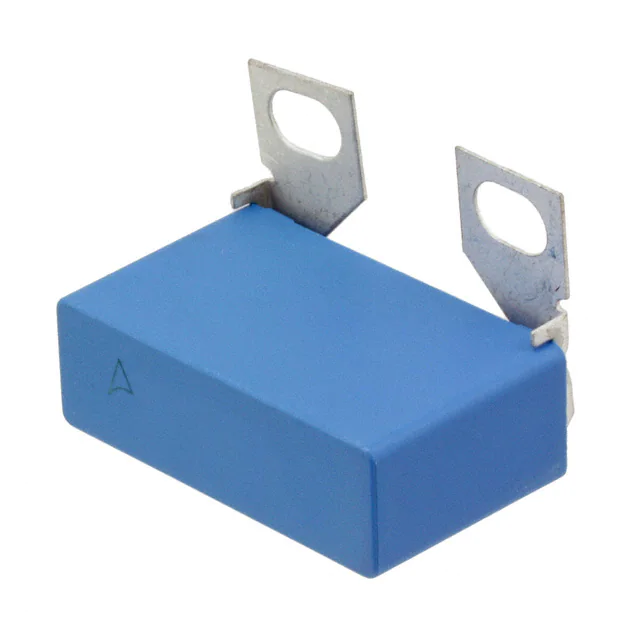

B32656S7224K564CAP FILM 0.22UF 1.25KVDC SCREW |
317 |
|
Datasheet |
Rectangular Box | 0.22 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 11.5 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 0.984" (25.00mm) | Snubber | - | Low ESL |
|
R76QW4100SE30KCAP FILM 1UF 10% 1KVDC RADIAL |
3,493 |
|
Datasheet |
Radial | 1 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4ATDBW5200A30JCAP FILM 20UF 5% 250VDC RADIAL |
3,444 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
940C10P47K-FCAP FILM 0.47UF 10% 1KVDC AXIAL |
3,253 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 0.945" Dia x 1.339" L (24.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
474PPA850KCAP FILM 0.47UF 10% 850VDC AXIAL |
678 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 4 mOhms | -55°C ~ 85°C | Through Hole | 0.846" Dia x 1.339" L (21.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
|
25MU106MD15750CAP FILM 10UF 20% 25VDC 2220 |
2,103 |
|
Datasheet |
2220 (5750 Metric) | 10 µF | ±20% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.079" (2.00mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
