Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UNL6W30K-FCAP FILM 30UF 10% 600VDC RADIAL |
278 |
|
Datasheet |
Radial, Can | 30 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 9 mOhms | -55°C ~ 105°C | Through Hole | 1.378" Dia (35.00mm) | 2.134" (54.20mm) | PC Pins | 0.500" (12.70mm) | - | - | Low ESR |
|
JSNIJ5100KB6L0CAP FILM 10UF 10% 250VDC SMD |
509 |
|
Datasheet |
SMD, J-Lead | 10 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681" L x 1.181" W (17.30mm x 30.00mm) | 0.720" (18.30mm) | - | - | DC Link, DC Filtering | - | Low ESR, Low ESL |
|

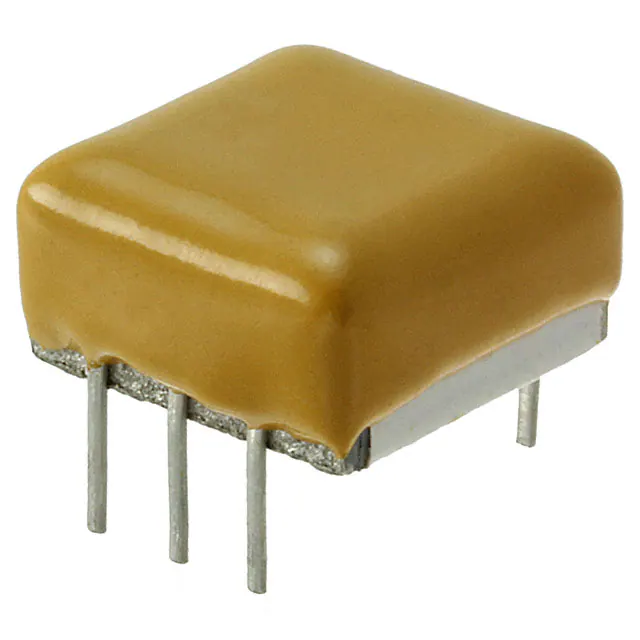

475K100CS4-FACAP FILM 4.7UF 10% 100VDC 6DIP |
431 |
|
Datasheet |
6-DIP | 4.7 µF | ±10% | - | 100V | Polymer, Metallized | 6 mOhms | -55°C ~ 125°C | Through Hole | 0.524" L x 0.500" W (13.30mm x 12.70mm) | 0.250" (6.35mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching | - | Low ESR, Low ESL |
|
B32361B2207J050CAP FILM 200UF 5% 250VAC RADIAL |
881 |
|
Datasheet |
Radial, Can | 200 µF | ±5% | 250V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 5.669" (144.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
.jpg)
|
944U700K122ABMCAP FILM 70UF 10% 1.2KVDC RADIAL |
177 |
|
Datasheet |
Radial, Can | 70 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|

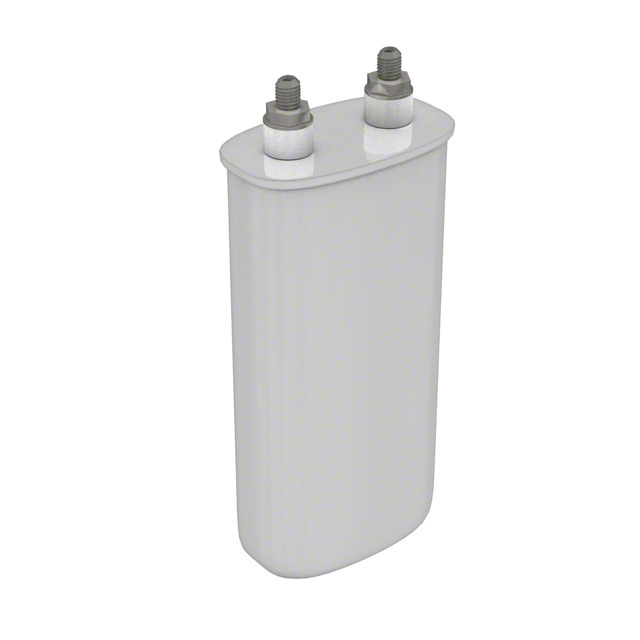

SCRN247R-FCAP FILM 0.5UF 10% 2KVPK RADIAL |
245 |
|
Datasheet |
Radial, Can | 0.5 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.690" (68.33mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
SCRN248R-FCAP FILM 1UF 10% 2KVPK RADIAL |
238 |
|
Datasheet |
Radial, Can | 1 µF | ±10% | 2000Vpk (2KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 3.190" (81.03mm) | Threaded, Male | 0.810" (20.57mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
944U660K102AAMCAP FILM 66UF 10% 1KVDC RADIAL |
178 |
|
Datasheet |
Radial, Can | 66 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 0.6 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 1.614" (41.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
B32362B3207J030CAP FILM 200UF 5% 330VAC RADIAL |
96 |
|
Datasheet |
Radial, Can | 200 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.984" (152.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
.JPG)
|

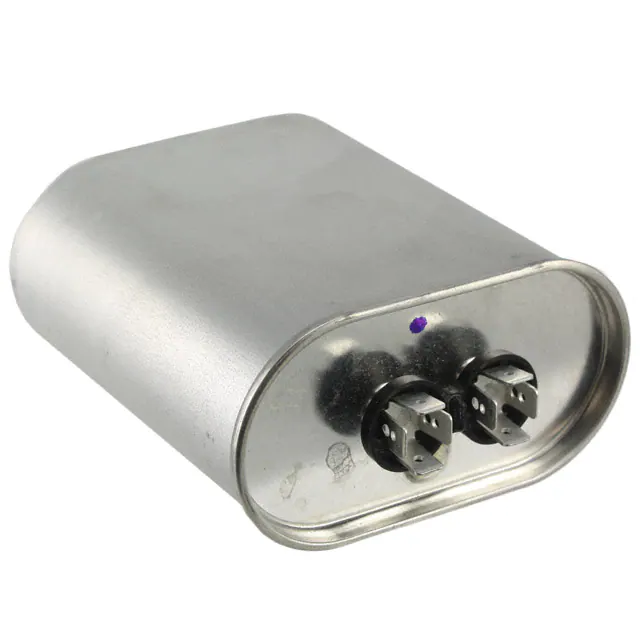

SFD66T30K391B-FCAP FILM 30UF 10% 660VAC RADIAL |
47 |
|
Datasheet |
Radial, Can | 30 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 4.030" (102.36mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
B25620B1227K321CAP FILM 220UF 10% 1.32KVDC RAD |
187 |
|
Datasheet |
Radial, Can | 220 µF | ±10% | - | 1320V (1.32kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.039" (128.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
C4DENPQ6100A8TKCAP FILM 100UF 10% 1KVDC RADIAL |
487 |
|
Datasheet |
Radial, Can | 100 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 1.3 mOhms | -40°C ~ 85°C | Chassis Mount | 3.307" Dia (84.00mm) | 2.598" (66.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Low ESL |
|
MKP1848716704Y5CAP FILM 160UF 5% 700VDC RADIAL |
93 |
|
Datasheet |
Radial - 6 Leads | 160 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 2.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 2.756" W (57.50mm x 70.00mm) | 2.362" (60.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
DCP4G064009JD4KSSDCAP FILM 400UF 10% 400VDC RAD |
110 |
|
Datasheet |
Radial - 4 Leads | 400 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | 1 mOhms | -55°C ~ 105°C | Through Hole | 2.244" L x 1.772" W (57.00mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32362A4207J080CAP FILM 200UF 5% 480VAC RADIAL |
90 |
|
Datasheet |
Radial, Can | 200 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.724" (247.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
944U101K102ABICAP FILM 100UF 10% 1KVDC RADIAL |
67 |
|
Datasheet |
Radial, Can | 100 µF | ±10% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 0.8 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
SFD66T25K391B-FCAP FILM 25UF 10% 660VAC RADIAL |
30 |
|
Datasheet |
Radial, Can | 25 µF | ±10% | 660V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip | 4.030" (102.36mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
|
|
944U221K801ACMCAP FILM 220UF 10% 800VDC RADIAL |
39 |
|
Datasheet |
Radial, Can | 220 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
944U101K801AAMCAP FILM 100UF 10% 800VDC RADIAL |
216 |
|
Datasheet |
Radial, Can | 100 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 0.5 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 1.614" (41.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
944U520K142ABMCAP FILM 52UF 10% 1.4KVDC RADIAL |
37 |
|
Datasheet |
Radial, Can | 52 µF | ±10% | - | 1400V (1.4kV) | Polypropylene (PP), Metallized | 1.1 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
