Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

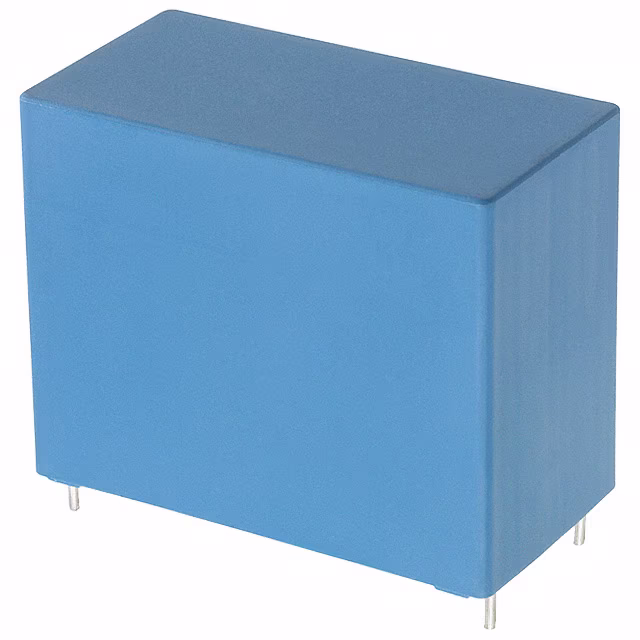

B32778G8456K000CAP FILM 45UF 800VDC RAD 4 LEAD |
734 |
|
Datasheet |
Radial - 4 Leads | 45 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
SMC12.7105J50B31TR24CAP FILM 1UF 5% 50VDC SMD |
875 |
|
Datasheet |
Nonstandard | 1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.256" (6.50mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
C4AEOBW5400A3NJCAP FILM 40UF 5% 900VDC RADIAL |
340 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AQLBW6130A3NKCAP FILM 130UF 10% 500VDC RADIAL |
386 |
|
Datasheet |
Radial - 4 Leads | 130 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 2.4 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
940C10W2K-FCAP FILM 2UF 10% 1KVDC AXIAL |
502 |
|
Datasheet |
Axial | 2 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 3 mOhms | -55°C ~ 105°C | Through Hole | 1.398" Dia x 1.811" L (35.50mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
FFV36L0905K--CAP FILM 9UF 10% 1.1KVDC RADIAL |
441 |
|
Datasheet |
Radial - 4 Leads | 9 µF | ±10% | 180V | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" (40.00mm) | PC Pins | 0.984" (25.00mm) | General Purpose | - | - |
|

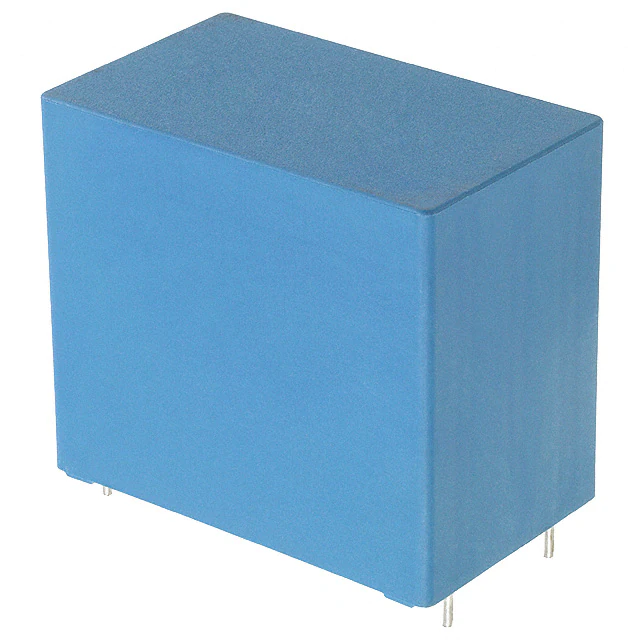

B32778G0406K000CAP FILM 40UF 1.1KVDC RAD 4 LEAD |
479 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
940C20W1K-FCAP FILM 1UF 10% 2KVDC AXIAL |
498 |
|
Datasheet |
Axial | 1 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.614" Dia x 2.126" L (41.00mm x 54.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
FFV36A0206K--CAP FILM 20UF 10% 700VDC RADIAL |
428 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | 120V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" (40.00mm) | PC Pins | 0.984" (25.00mm) | General Purpose | - | - |
|
FFB54I0206K--CAP FILM 20UF 10% 400VDC RADIAL |
134 |
|
Datasheet |
Radial | 20 µF | ±10% | 105V | 400V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
935C4W3K-FCAP FILM 3UF 10% 400VDC AXIAL |
1,977 |
|
Datasheet |
Axial | 3 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 0.961" Dia x 1.748" L (24.40mm x 44.40mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
RA6106K100CAP FILM 10UF 10% 100VDC RADIAL |
511 |
|
Datasheet |
Radial | 10 µF | ±10% | 80V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.260" W (16.50mm x 6.60mm) | 0.461" (11.70mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT; EMI, RFI Suppression | - | Low ESR; Low ESL; Long Life |
|
|
C4AQLBW6100A3MKCAP FILM 100UF 10% 500VDC RADIAL |
132 |
|
Datasheet |
Radial - 4 Leads | 100 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

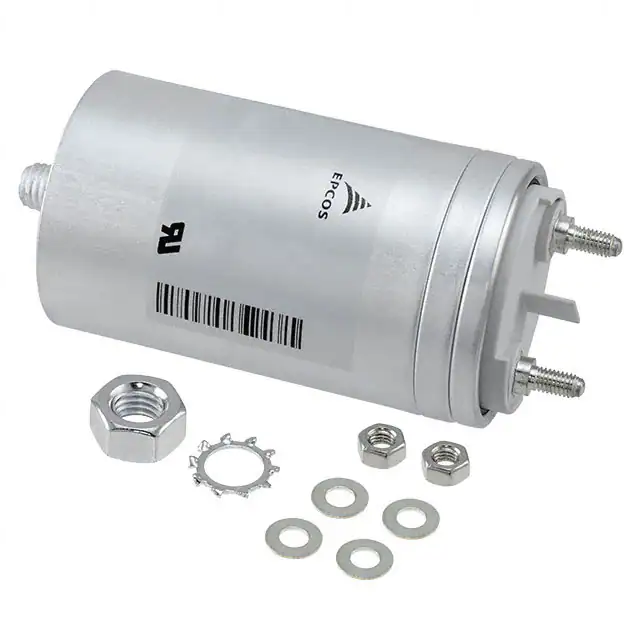

B32361A4206J080CAP FILM 20UF 5% 480VAC RADIAL |
876 |
|
Datasheet |
Radial, Can | 20 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 2.756" (70.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
B32361B3107J030CAP FILM 100UF 5% 330VAC RADIAL |
447 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 5.276" (134.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
944U101K122ACICAP FILM 100UF 10% 1.2KVDC RAD |
2,848 |
|
Datasheet |
Radial, Can | 100 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 1.3 mOhms | -40°C ~ 85°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
UNL4W30K-FCAP FILM 30UF 10% 400VDC RADIAL |
359 |
|
Datasheet |
Radial, Can | 30 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.378" Dia (35.00mm) | 2.134" (54.20mm) | PC Pins | 0.500" (12.70mm) | - | - | Low ESR |
|
|
B32361A4606J080CAP FILM 60UF 5% 480VAC RADIAL |
214 |
|
Datasheet |
Radial, Can | 60 µF | ±5% | 480V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 5.197" (132.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
MKP1848680704Y5CAP FILM 80UF 5% 700VDC RADIAL |
492 |
|
Datasheet |
Radial - 4 Leads | 80 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
|
FFV36C0136K--CAP FILM 13UF 10% 900VDC RADIAL |
448 |
|
Datasheet |
Radial - 4 Leads | 13 µF | ±10% | 150V | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" (40.00mm) | PC Pins | 0.984" (25.00mm) | General Purpose | - | - |
