Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32926C3825M000CAP FILM 8.2UF 20% 630VDC RADIAL |
489 |
|
Datasheet |
Radial | 8.2 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|

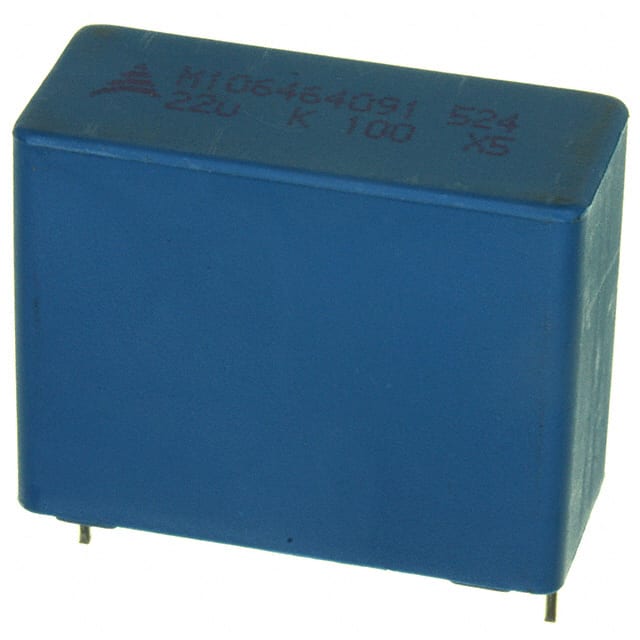

B32524Q1226K000CAP FILM 22UF 10% 100VDC RADIAL |
8,442 |
|
Datasheet |
Radial | 22 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
B32914A5105M000CAP FILM 1UF 20% 1KVDC RADIAL |
1,663 |
|
Datasheet |
Radial | 1 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
B32774D4106K000CAP FILM 10UF 10% 450VDC RADIAL |
12,927 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 10.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32754C4305K000CAP FILM 3UF 10% 800VDC RADIAL |
723 |
|
Datasheet |
Radial | 3 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 6.5 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
25MU225MB23225CAP FILM 2.2UF 20% 25VDC 1210 |
2,368 |
|
Datasheet |
1210 (3225 Metric) | 2.2 µF | ±20% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|

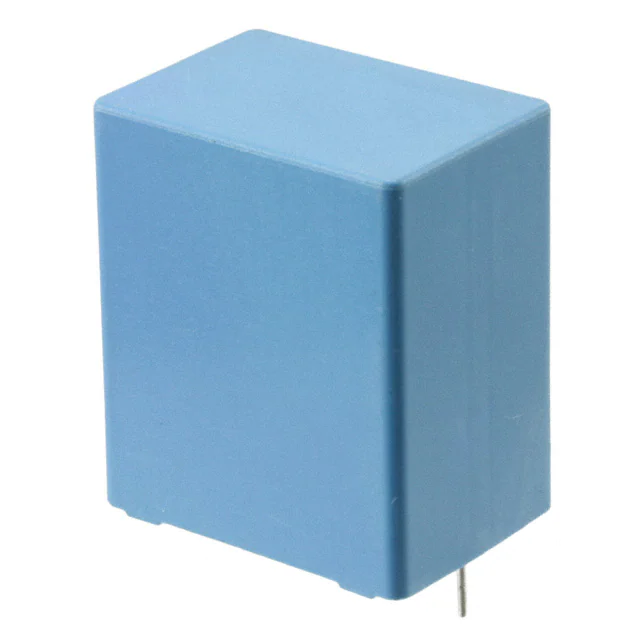

B32024A3105M000CAP FILM 1UF 20% 1.5KVDC RADIAL |
5,120 |
|
Datasheet |
Radial | 1 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
MKT1813610065GCAP FILM 10UF 10% 63VDC AXIAL |
862 |
|
Datasheet |
Axial | 10 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.571" Dia x 1.240" L (14.50mm x 31.50mm) | - | PC Pins | - | General Purpose | - | - |
|
B32774D1505K000CAP FILM 5UF 10% 1.3KVDC RADIAL |
1,273 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 9.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
16MU335MB33225CAP FILM 3.3UF 20% 16VDC 1210 |
1,086 |
|
Datasheet |
1210 (3225 Metric) | 3.3 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
F339X151048MKP2T0CAP FILM 1UF 20% 1KVDC RADIAL |
4,613 |
|
Datasheet |
Radial | 1 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
B32914A5155M000CAP FILM 1.5UF 20% 1KVDC RADIAL |
8,377 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
FE37M6C0206KBCAP FILM 20UF 10% 900VDC RADIAL |
5,604 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 5.5 mOhms | -40°C ~ 100°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
B32774D8126K000CAP FILM 12UF 10% 800VDC RADIAL |
5,997 |
|
Datasheet |
Radial | 12 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
B32916A3335M000CAP FILM 3.3UF 20% 760VDC RADIAL |
1,944 |
|
Datasheet |
Radial | 3.3 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
16MU106MC44532CAP FILM 10UF 20% 16VDC 1812 |
2,475 |
|
Datasheet |
1812 (4532 Metric) | 10 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
940C30S68K-FCAP FILM 0.068UF 10% 3KVDC AXIAL |
838 |
|
Datasheet |
Axial | 0.068 µF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | 12 mOhms | -55°C ~ 105°C | Through Hole | 0.748" Dia x 1.811" L (19.00mm x 46.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
|
16MU475MC14532CAP FILM 4.7UF 20% 16VDC 1812 |
666 |
|
Datasheet |
1812 (4532 Metric) | 4.7 µF | ±20% | - | 16V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
PHE850ER7100MR03R06L2CAP FILM 1UF 20% 1.25KVDC RADIAL |
1,450 |
|
Datasheet |
Radial | 1 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|
|
940C6W1K-FCAP FILM 1UF 10% 600VDC AXIAL |
488 |
|
Datasheet |
Axial | 1 µF | ±10% | 275V | 600V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 0.827" Dia x 1.339" L (21.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
