Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B25690A3107K003100UF +-10% 3000V PEC MKP DC |
46 |
|
Datasheet |
Radial, Can | 100 µF | ±10% | - | 3000V (3kV) | - | 1.4 mOhms | -40°C ~ 75°C | Chassis Mount | 4.567" Dia (116.00mm) | 6.929" (176.00mm) | Threaded, Female | 1.969" (50.00mm) | General Purpose | - | - |
|
|
B32362A3407J030CAP FILM 400UF 5% 330VAC RADIAL |
75 |
|
Datasheet |
Radial, Can | 400 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 10.512" (267.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
C4DEFPQ6380A8TKCAP FILM 380UF 10% 400VDC RADIAL |
66 |
|
Datasheet |
Radial, Can | 380 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | 0.81 mOhms | -40°C ~ 85°C | Chassis Mount | 3.307" Dia (84.00mm) | 2.598" (66.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Low ESL |
|
B25674C5252J025CAP FILM 96.2UF 5% 525VAC RADIAL |
35 |
|
Datasheet |
Radial, Can | 96.2 µF | ±5% | 525V | - | Polypropylene (PP), Metallized | - | -40°C ~ 60°C | Chassis Mount | 4.567" Dia (116.00mm) | 8.268" (210.00mm) | Screw Terminals | - | 3 Phase, Power Factor Correction (PFC) | - | - |
|
B25690A1128K103CAP FILM 1200UF 10% 1.1KV RADIAL |
264 |
|
Datasheet |
Radial, Can | 1200 µF | ±10% | - | 1100V (1.1kV) | - | 1.2 mOhms | -40°C ~ 75°C | Chassis Mount | 4.567" Dia (116.00mm) | 9.055" (230.00mm) | Threaded, Female | 1.969" (50.00mm) | General Purpose | - | - |
|

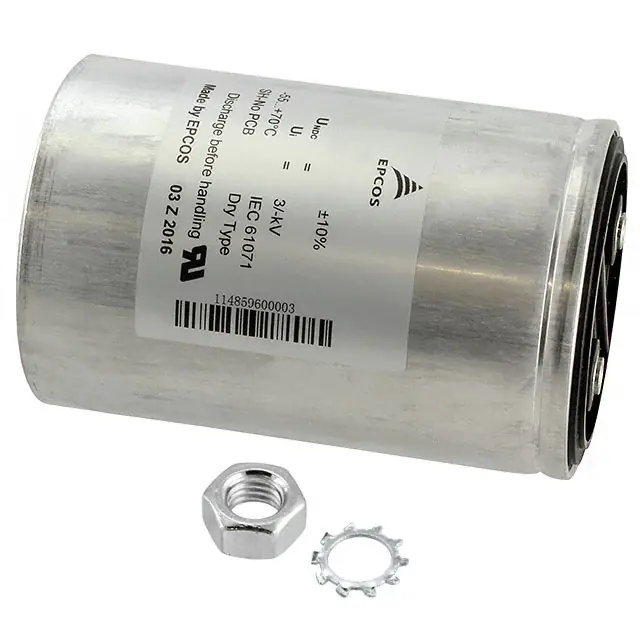

B25620B0158K883CAP FILM 1500UF 10% 900VDC RAD |
134 |
|
Datasheet |
Radial, Can | 1500 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 7.126" (181.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
B25620B1108K323CAP FILM 1000UF 10% 1.32KVDC RAD |
229 |
|
Datasheet |
Radial, Can | 1000 µF | ±10% | - | 1320V (1.32kV) | Polypropylene (PP), Metallized | - | -55°C ~ 75°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 10.984" (279.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
B25690C1308K103CAP FILM 3000UF 10% 1.1KV RADIAL |
35 |
|
Datasheet |
Radial, Can | 3000 µF | ±10% | - | 1100V (1.1kV) | - | 1 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 14.567" (370.00mm) | Threaded, Female | 1.969" (50.00mm) | General Purpose | - | - |
|
|
B25690C2807K003CAP FILM 800UF 10% 2KV RADIAL |
146 |
|
Datasheet |
Radial, Can | 800 µF | ±10% | - | 2000V (2kV) | - | 1 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 14.567" (370.00mm) | Threaded, Female | 1.969" (50.00mm) | General Purpose | - | - |
|
|
B25690C1248K2032400UF +-10% 1200V PEC MKP DC |
60 |
|
Datasheet |
Radial, Can | 2.4 mF | ±10% | - | 1200V (1.2kV) | - | 1 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 14.567" (370.00mm) | Threaded, Female | 1.969" (50.00mm) | General Purpose | - | - |
|
|
B25690C3327K003320UF +-10% 3000V PEC MKP DC |
32 |
|
Datasheet |
Radial, Can | 320 µF | ±10% | - | 3000V (3kV) | - | 1.3 mOhms | -40°C ~ 75°C | Chassis Mount | 5.354" Dia (136.00mm) | 13.583" (345.00mm) | Threaded, Female | 1.969" (50.00mm) | General Purpose | - | - |
|
FFLR6Z1656KJECAP FILM 165UF, 3800VDC |
124 |
|
Datasheet |
Radial, Can | 165 µF | ±10% | - | 3800V (3.8kV) | Polypropylene (PP), Metallized | 1.6 mOhms | -40°C ~ 95°C | Chassis Mount | 4.567" Dia (116.00mm) | 13.465" (342.00mm) | Threaded, Male | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
B32921C3104M189CAP FILM 0.1UF 20% 630VDC RADIAL |
84,700 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
R82EC1220AA50JCAP FILM 2200PF 5% 100VDC RADIAL |
24,839 |
|
Datasheet |
Radial | 2200 pF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R82DC3100AA50KCAP FILM 0.1UF 10% 63VDC RADIAL |
19,807 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R82EC1470DQ50KCAP FILM 4700PF 10% 100VDC RAD |
7,097 |
|
Datasheet |
Radial | 4700 pF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R82MC1100DQ50KCAP FILM 1000PF 10% 400VDC RAD |
5,372 |
|
Datasheet |
Radial | 1000 pF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R82DC3100DQ50JCAP FILM 0.1UF 5% 63VDC RADIAL |
144,292 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R82EC3100AA70KCAP FILM 0.1UF 10% 100VDC RADIAL |
53,640 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
R82EC1100AA50JCAP FILM 1000PF 5% 100VDC RADIAL |
27,425 |
|
Datasheet |
Radial | 1000 pF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.260" (6.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
