Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F340Y243330MIM2T0CAP FILM 0.33UF 20% 1KVDC RADIAL |
550 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 305V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.610" W (26.50mm x 15.50mm) | 1.063" (27.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | 85C/85% Humidity |
|
MKS2B046801M00JSSDCAP FILM 6.8UF 5% 50VDC RADIAL |
625 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.335" W (7.20mm x 8.50mm) | 0.551" (14.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32523Q1106K000CAP FILM 10UF 10% 100VDC RADIAL |
4,557 |
|
Datasheet |
Radial | 10 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
MKP4F043306D00KSSDCAP FILM 3.3UF 10% 250VDC RAD |
4,033 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
MKS2B051001N00KSSDCAP FILM 10UF 10% 50VDC RADIAL |
2,027 |
|
Datasheet |
Radial | 10 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.433" W (7.20mm x 11.00mm) | 0.630" (16.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
 Series Straight 26x13.jpg)
|
ECW-F2W475JACAP FILM 4.7UF 5% 450VDC RADIAL |
419 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.035" L x 0.543" W (26.30mm x 13.80mm) | 0.831" (21.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
PHE845VY6220MR30L2CAP FILM 0.22UF 20% 1.5KVDC RAD |
4,215 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
B32914A5474M000CAP FILM 0.47UF 20% 1KVDC RADIAL |
1,536 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 530V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.492" W (31.50mm x 12.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
ECW-U1105KCVCAP FILM 1UF 10% 100VDC 3925 |
703 |
|
Datasheet |
3925 (9863 Metric) | 1 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
B32674D4475K000CAP FILM 4.7UF 10% 450VDC RADIAL |
3,414 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
ECQ-E1106KFCAP FILM 10UF 10% 100VDC RADIAL |
3,538 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
LDEDD4100JA0N00CAP FILM 1UF 5% 63VDC 2220 |
3,344 |
|
Datasheet |
2220 (5750 Metric) | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
B32926C3475M000CAP FILM 4.7UF 20% 630VDC RADIAL |
4,158 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
 Series Straight 23x14.jpg)
|
ECW-F2475JACAP FILM 4.7UF 5% 250VDC RADIAL |
3,046 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.583" W (23.80mm x 14.80mm) | 0.870" (22.10mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|

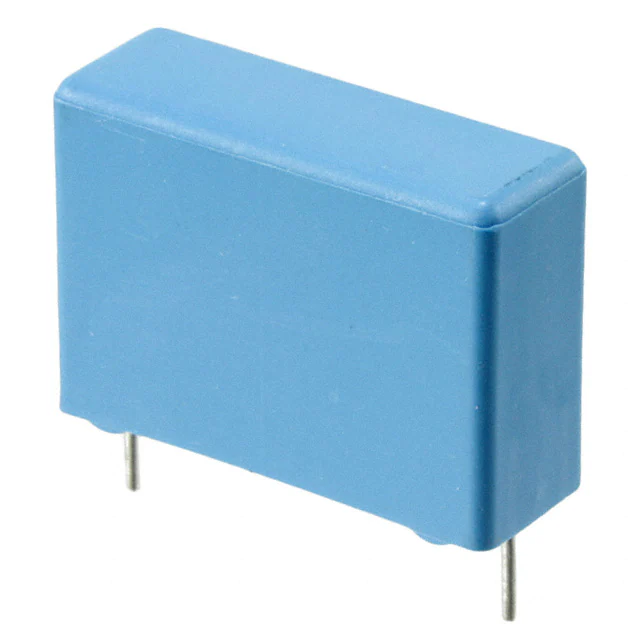

PHE450XD5100JD15R06L2CAP FILM 10000PF 5% 3KVDC RADIAL |
1,950 |
|
Datasheet |
Radial | 10000 pF | ±5% | 1000V (1kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
|
ECW-U2334KCVCAP FILM 0.33UF 10% 250VDC 3925 |
13,729 |
|
Datasheet |
3925 (9863 Metric) | 0.33 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.197" (5.00mm) | Solder Pads | - | General Purpose | - | - |
|

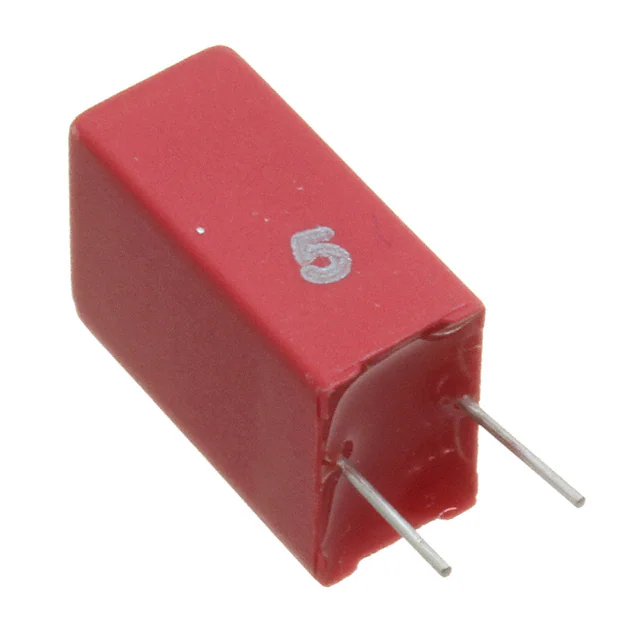

MKS2B051001N00JSSDCAP FILM 10UF 5% 50VDC RADIAL |
180 |
|
Datasheet |
Radial | 10 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.433" W (7.20mm x 11.00mm) | 0.630" (16.00mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|

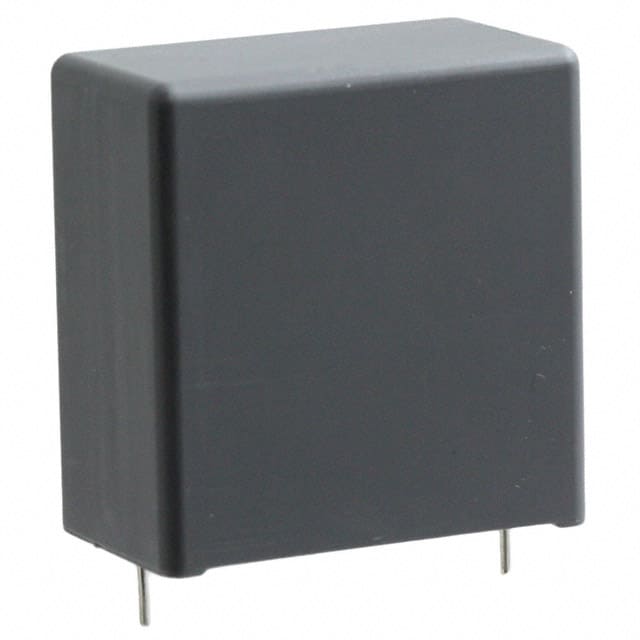

R463R447000M2MCAP FILM 4.7UF 20% 630VDC RADIAL |
3,288 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
25MU105MA23216CAP FILM 1UF 20% 25VDC 1206 |
3,197 |
|
Datasheet |
1206 (3216 Metric) | 1 µF | ±20% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
MKS4B051004J00KSSDCAP FILM 10UF 10% 50VDC RADIAL |
685 |
|
Datasheet |
Radial | 10 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
