Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
715P22452LD3CAP FILM 0.22UF 5% 200VDC RADIAL |
1,031 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 155V | 200V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.512" Dia x 1.252" L (13.00mm x 31.80mm) | 0.823" (20.90mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|

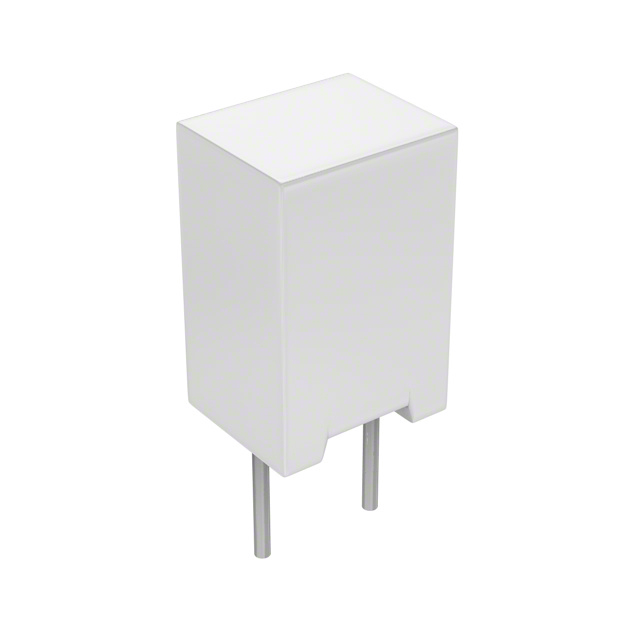

168105J50G-FCAP FILM 1UF 5% 50VDC RADIAL |
7,847 |
|
Datasheet |
Radial | 1 µF | ±5% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
B32674D4605K000CAP FILM 6UF 10% 450VDC RADIAL |
3,842 |
|
Datasheet |
Radial | 6 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 5.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|

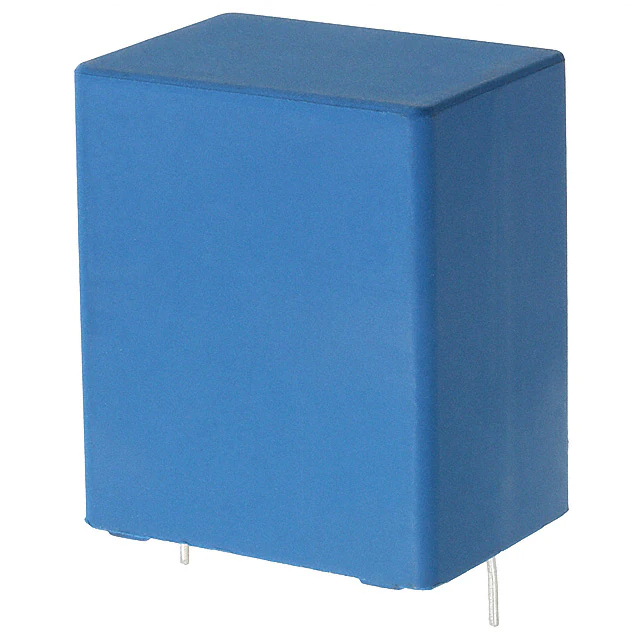

B32774D0505K000CAP FILM 5UF 10% 1.1KVDC RADIAL |
3,543 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 10.9 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life |
|
MKS4C051006B00JSSDCAP FILM 10UF 5% 63VDC RADIAL |
300 |
|
Datasheet |
Radial | 10 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32926C3565M000CAP FILM 5.6UF 20% 630VDC RADIAL |
198 |
|
Datasheet |
Radial | 5.6 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
B32654A3475J000CAP FILM 4.7UF 5% 250VDC RADIAL |
1,009 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.709" W (31.50mm x 18.00mm) | 1.083" (27.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E2106JFCAP FILM 10UF 5% 250VDC RADIAL |
964 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.626" W (31.00mm x 15.90mm) | 1.075" (27.30mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
225P10491WD3CAP FILM 0.1UF 10% 100VDC RADIAL |
682 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 70V | 100V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.700" L x 0.402" W (17.78mm x 10.20mm) | 0.551" (14.00mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
BFC237872104CAP FILM 0.1UF 5% 1KVDC RADIAL |
487 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | Long Life |
|
R75QR41004000JCAP FILM 1UF 5% 1KVDC RAD |
384 |
|
Datasheet |
Radial | 1 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R474R410050A1KCAP FILM 1UF 10% 1KVDC RADIAL |
147 |
|
Datasheet |
Radial | 1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

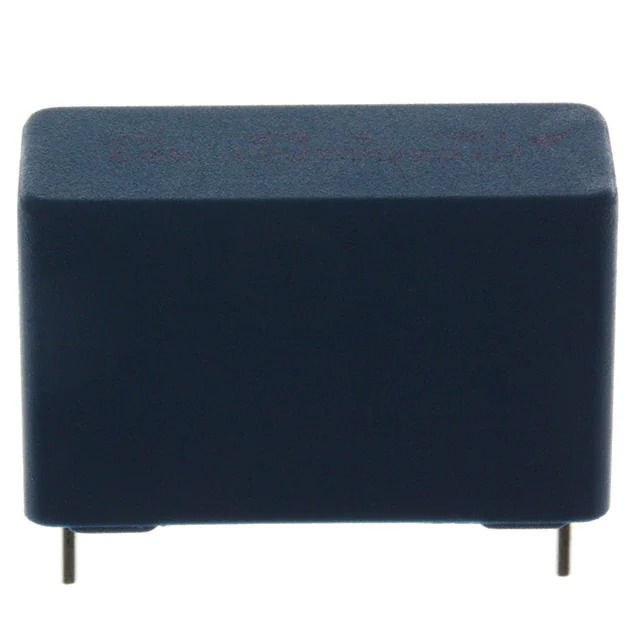

B32523R0226J000CAP FILM 22UF 5% 63VDC RADIAL |
1,499 |
|
Datasheet |
Radial | 22 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
BFC233922105CAP FILM 1UF 20% 630VDC RADIAL |
769 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PHE450PF6220JR06L2CAP FILM 0.22UF 5% 1KVDC RADIAL |
749 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.394" W (31.50mm x 10.00mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
B32714H9106K000MKP DC FILTERING - 900VDC, 10UF |
475 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 4.5 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | Long Life |
|
|
B32562H1106K000CAP FILM 10UF 10% 100VDC 2DIP |
4,853 |
|
Datasheet |
2-DIP | 10 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.650" L x 0.465" W (16.50mm x 11.80mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
PHE450KF7100JR06L2CAP FILM 1UF 5% 400VDC RADIAL |
1,124 |
|
Datasheet |
Radial | 1 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
BFC233810684CAP FILM 0.68UF 20% 1KVDC RADIAL |
1,007 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.709" W (31.00mm x 18.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|

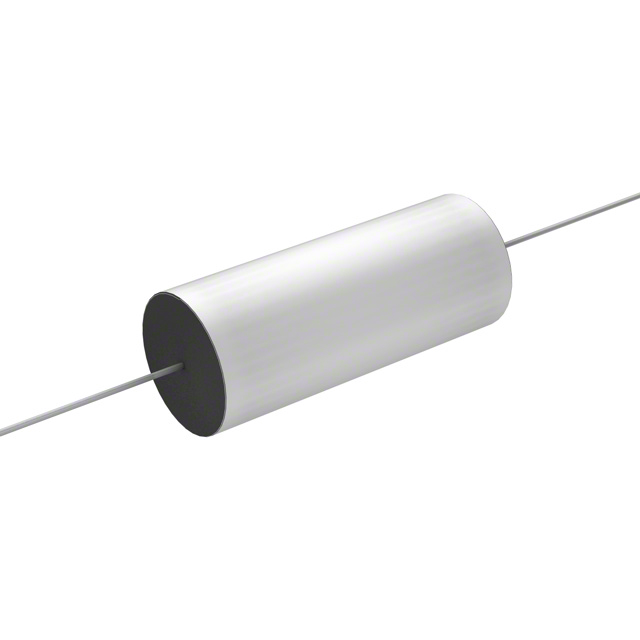

WMF6P1K-FCAP FILM 0.1UF 10% 630VDC AXIAL |
1,487 |
|
Datasheet |
Axial | 0.1 µF | ±10% | - | 630V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.579" Dia x 1.374" L (14.70mm x 34.90mm) | - | PC Pins | - | General Purpose | - | - |
