Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LDEIH4100KA5N00CAP FILM 1UF 10% 250VDC 6054 |
1,058 |
|
Datasheet |
6054 (153137 Metric) | 1 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.610" L x 0.539" W (15.50mm x 13.70mm) | 0.181" (4.60mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
MKP1848C55012JP2CAP FILM 5UF 5% 1.2KVDC RADIAL |
191 |
|
Datasheet |
Radial | 5 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 105°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
MKP1848S61010JY2BCAP FILM 10UF 5% 1KVDC RADIAL |
1,548 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 21 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.299" W (57.50mm x 33.00mm) | 0.591" (15.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
MKP1839447084HQCAP FILM 0.47UF 5% 850VDC AXIAL |
1,168 |
|
Datasheet |
Axial | 0.47 µF | ±5% | 400V | 850V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.650" Dia x 1.240" L (16.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
BFC241671005CAP FILM 1UF 2% 63VDC RADIAL |
1,018 |
|
Datasheet |
Radial | 1 µF | ±2% | 25V | 63V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
C4GAFUC4220AA0JCAP FILM 2.2UF 5% 400VDC AXIAL |
265 |
|
Datasheet |
Axial | 2.2 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4.4 mOhms | -40°C ~ 85°C | Through Hole | 0.689" Dia x 1.299" L (17.50mm x 33.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
 Series Straight 23x16.jpg)
|
ECW-F2565JACAP FILM 5.6UF 5% 250VDC RADIAL |
925 |
|
Datasheet |
Radial | 5.6 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.638" W (23.80mm x 16.20mm) | 0.921" (23.40mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
B32754C2106K000CAP FILM 10UF 10% 500VDC RADIAL |
2,142 |
|
Datasheet |
Radial | 10 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
MKP4D046806F00JSSDCAP FILM 6.8UF 5% 100VDC RAD |
298 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
R60ER5100AA40KCAP FILM 10UF 10% 100VDC RADIAL |
287 |
|
Datasheet |
Radial | 10 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
B32674D3126K000CAP FILM 12UF 10% 300VDC RADIAL |
1,323 |
|
Datasheet |
Radial | 12 µF | ±10% | - | 300V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
PME271M660KR30CAP FILM 0.6UF 10% 275VAC RADIAL |
270 |
|
Datasheet |
Radial | 0.6 µF | ±10% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|
PHE426HF7330JR06L2CAP FILM 3.3UF 5% 250VDC RAD |
414 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.453" W (31.50mm x 11.50mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4CAYUC2220AA0JCAP FILM 0.022UF 5% 3KVDC AXIAL |
1,143 |
|
Datasheet |
Axial | 0.022 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 41.6 mOhms | -40°C ~ 85°C | Through Hole | 0.669" Dia x 1.299" L (17.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
MKP1T034706J00KSSDCAP FILM 0.47UF 10% 1.6KVDC RAD |
128 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.787" W (31.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|

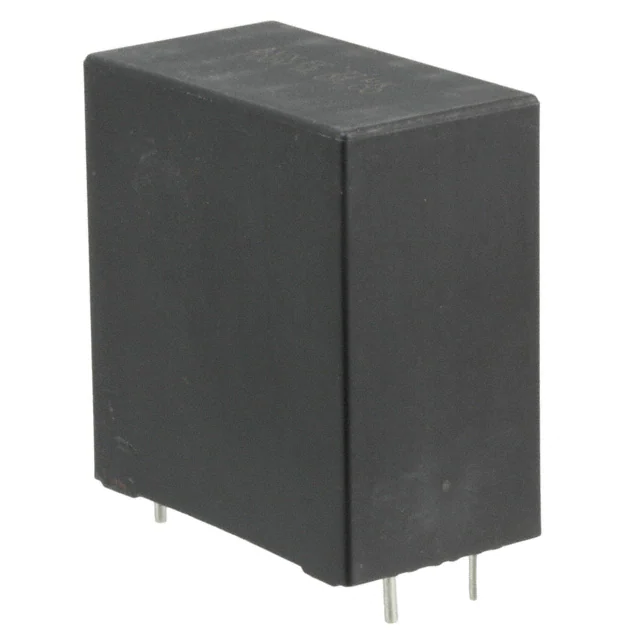

FE37L6L0106KACAP FILM 10UF 10% 1.1KVDC RADIAL |
169 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 8.5 mOhms | -40°C ~ 100°C | Through Hole | 1.673" L x 0.945" W (42.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
CB182K0224KBCCAP FILM 0.22UF 10% 630VDC 6054 |
2,230 |
|
Datasheet |
6054 (153137 Metric) | 0.22 µF | ±10% | 250V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.602" L x 0.539" W (15.30mm x 13.70mm) | 0.200" (5.08mm) | - | - | General Purpose | - | Low ESR, Low ESL |
|
|
B32674D3106K000CAP FILM 10UF 10% 300VDC RADIAL |
3,424 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 300V | Polypropylene (PP), Metallized | 4.6 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
DCP4H151006DD2KSSDCAP FILM 10UF 10% 500VDC RADIAL |
867 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 23.9 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PHE450RD6220JR06L2CAP FILM 0.22UF 5% 1.6KVDC RAD |
7,133 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
